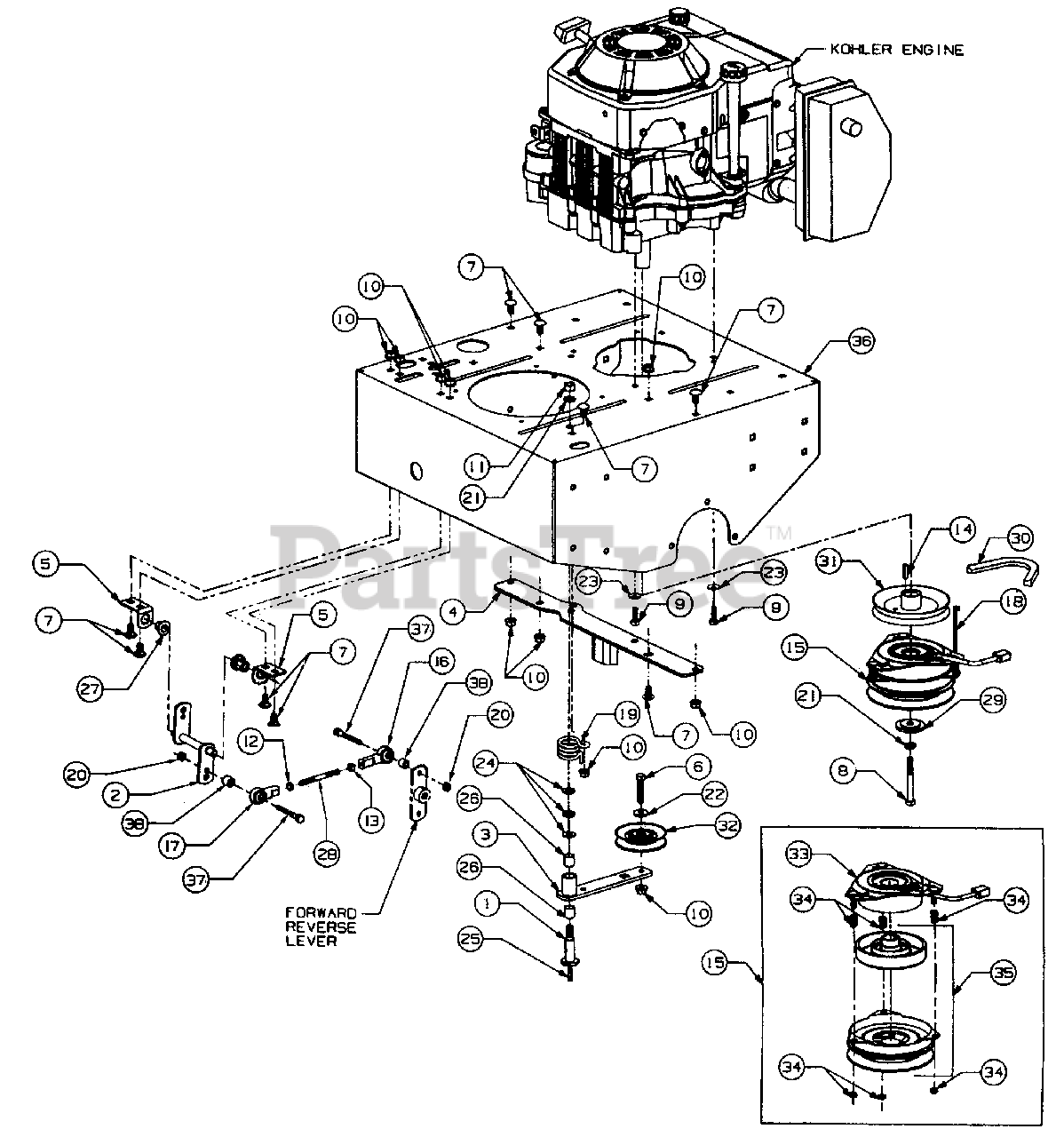

4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Engine Deck Assembly Parts Diagram

Walk-Behind Mower Pro Performer

Engine Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$20.99

$

In Stock, Qty 7

0

2

Cub Cadet 603-0155

Lever, F/R Control

$

$

Not available

3

Cub Cadet 603-0209

Arm Assy, Idler

Note: [Includes Ref No. 26 (Qty 2)]

$

$

Not available

4

Cub Cadet 603-0292

Retainer, PTO Clutch

$

$

Not available

5

Cub Cadet 703-2425

Bracket, Lever Angle

$

$

Not available

6

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0510

Screw, Hex Cap, 7/16-20 X 3.0 Lg GR5

$10.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-3206A

Screw, Hex Cap M8 X 1.25 X 25 mm Lg

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.49

$

In Stock, only 2 left!

0

12

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 LH Thread
(Superseded to 912-3045)

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

14

Cub Cadet 714-0128

Key, Square, 1/4 X 1.0 Lg

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 717-3389

Clutch Assy, PTO
(Superseded to 917-3389)

$597.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 723-0449

Rod End, Spherical 5/16-24

$

$

Not available

17

Cub Cadet 723-0450

Rod End, Spherical 5/16-24 LH Thread

$

$

Not available

18

Cub Cadet 725-0157

Cable, Tie

$3.49

$

In Stock, only 4 left!

0

19

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$22.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR 5

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0206

Washer, Special .378 X 1.00 X .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 1 left!

0

23

Cub Cadet 736-0242

Washer, Bell, .340 X.872 X .060 Thk

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$3.99

$

In Stock, only 3 left!

0

25

Cub Cadet 737-0280

Fitting, Lube

$7.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 741-3063

Bearing, Sleeve

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 741-0324

Bearing, Hex Flange
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

28

Cub Cadet 747-3170

Rod, Control

$

$

Not available

29

Cub Cadet 750-3106

Spacer, Clutch

$35.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 754-0244

Belt, Transmission 1/2 X 40.0 Lg
(Superseded to 954-0244)

$39.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-3060

Pulley, Engine
(Superseded to 756-3060A)

$90.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-3068

Pulley, V-Idler

$

$

Not available

33

Cub Cadet 759-3694

Field Assy
(Superseded to 959-3694)

$282.99

$

In Stock, only 1 left!

0

34

Cub Cadet 759-3697

Mounting Accessories

$

$

Not available

Hex Nuts

$

$

Not available

Springs

$

$

Not available

35

Cub Cadet 759-3739

Kit, Armature and Rotor
(Superseded to 959-3739)

$

$

Not available

36

Cub Cadet 759-3767

Deck w/Graphic, Engine Mtg

$

$

Not available

Cub Cadet 777-1585A

Graphic, Warning

$

$

Not available

37

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 X 1.38 GR 5

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 748-3063

Spacer .317 ID X .625 OD X .343 Lg

$

$

Not available
