4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Transmission Mount Parts Diagram

Walk-Behind Mower Pro Performer

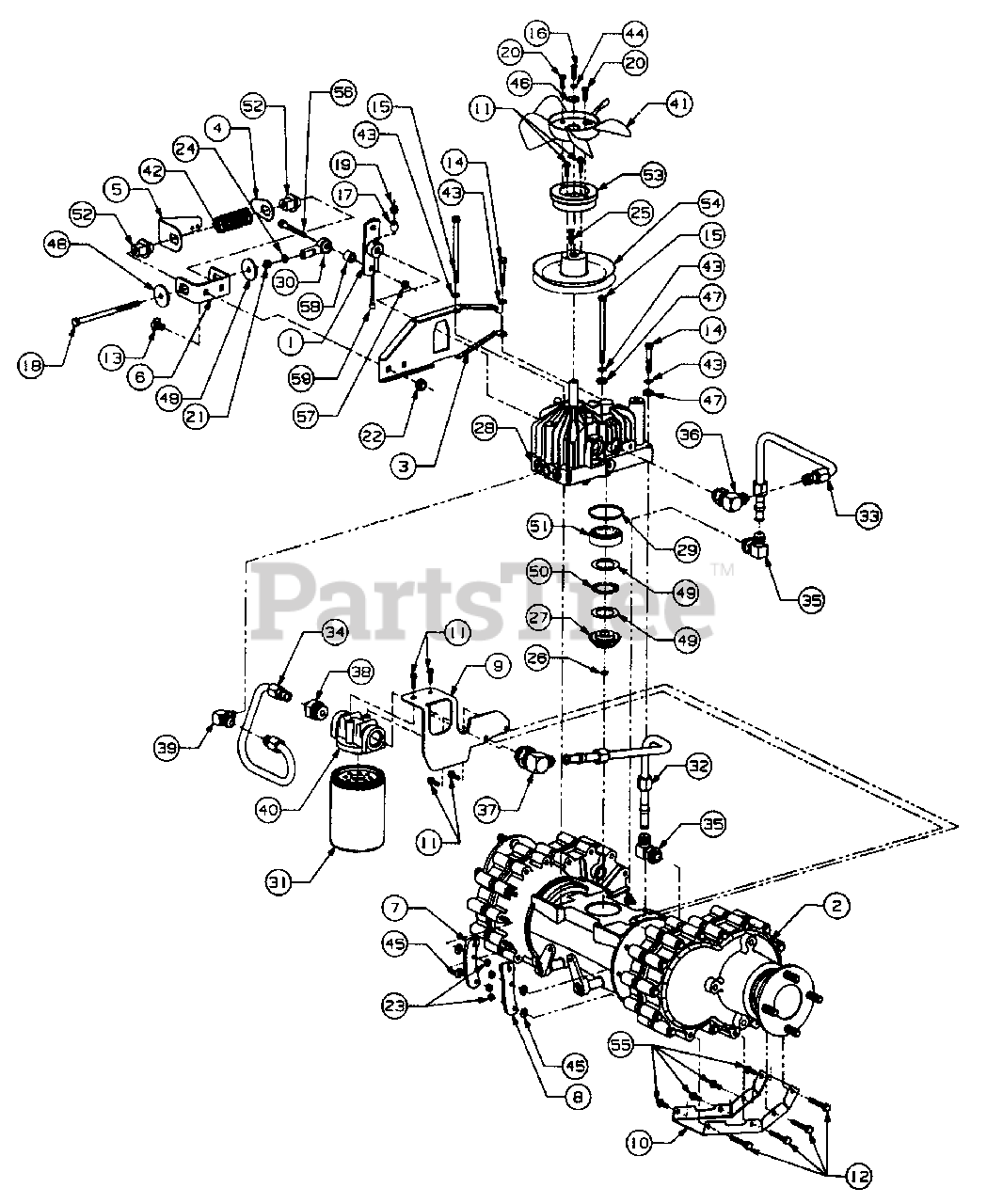

Transmission Mount Parts Diagram

  • Title

1

Cub Cadet 718-3049

Lever, Forward & Reverse

$

$

Not available

2

Cub Cadet 618-3051A

Transmission Assy, Complete

$

$

Currently unavailable

3

Cub Cadet 703-2200

Plate, Neutral Mechanism Mtg

$

$

Not available

4

Cub Cadet 703-2244

Stop, Switch

$

$

Not available

5

Cub Cadet 703-2245

Mount, Switch

$

$

Not available

6

Cub Cadet 703-2246

Bracket, Neutral Mechanism

$

$

Not available

7

Cub Cadet 703-2352

Plate, Left Cable Mtg

$

$

Not available

8

Cub Cadet 703-2353

Plate, Right Cable Mtg

$

$

Not available

9

Cub Cadet 703-2354

Bracket, Oil Filter Mtg

$

$

Not available

10

Cub Cadet 703-2355

Plate, Skid

$

$

Not available

11

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp 1/4-20 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1206

Screw, Hex Wash Hd Tapp 1/4-20 X 2.31 Lg

$6.99

$

In Stock, Qty 11

0

13

Cub Cadet 710-3178

Bolt, Sht Nk Carriage 3/8-16 X .75 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3103

Screw, Hex Cap 5/16-18 X 2.0 Lg GR 5

$4.49

$

In Stock, Qty 19

0

15

Cub Cadet 710-0974

Screw, Hex Cap 5/16-18 X 4.75 Lg GR 5

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3223

Screw, Hex Cap M6-1.0 X 20mm Lg GR 10.9

$

$

Not available

17

Cub Cadet 738-3160

Spacer

$

$

Not available

18

Cub Cadet 710-3255

Screw, Hex Cap 5/16-24 X 5.37 Lg GR 5

$

$

Not available

19

Cub Cadet 712-0161

Nut, Nylon Lock, 10-24

$4.49

$

In Stock, Qty 9

0

20

Cub Cadet 710-3296

Screw, Hex Cap w/Patch 1/4-20 X .75 Lg GR 5

$4.49

$

In Stock, Qty 11

0

21

Cub Cadet 712-0273

Nut, Hex Insert Lock, 5/16-24
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3055

Nut, Hex Top Lock, 1/4-20
(Superseded to 912-0291)

$

$

Not available

24

Cub Cadet 712-3057

Nut, Hex Jam, 5/16-24 GR 5
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

25

Cub Cadet 714-3027

Key, Square 5mm X 5mm X 25mm Lg

$

$

Not available

26

Cub Cadet 716-0865

Ring, Snap, .500 Dia Shaft

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet 717-3367

Gear, Input Pinion -20T

$

$

Not available

28

Cub Cadet 717-3386

Pump, Hydrostatic
(Superseded to 917-3386)

$

$

Not available

29

Cub Cadet 721-3036

O-Ring, 2.237 ID X .103 Thk

$

$

Not available

30

Cub Cadet 723-0449

Rod End, Spherical

$

$

Not available

31

Cub Cadet 723-3071

Filter, Oil

$68.99

$

In Stock, only 1 left!

0

32

Cub Cadet 727-3075

Tube, Filter Inlet

$

$

Not available

33

Cub Cadet 727-3076

Tube, Return

$

$

Not available

34

Cub Cadet 727-3077

Tube, Hydro Inlet

$

$

Not available

35

Cub Cadet 727-3078

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3045

O-Ring, 1/2 OD Tube

$

$

Not available

36

Cub Cadet 727-3079

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3005

O-Ring, 3/4 OD Tube
(Superseded to 921-3005)

$

$

Not available

37

Cub Cadet 727-3080

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3046

O-Ring, 3/4 OD Tube

$

$

Not available

38

Cub Cadet 727-3081

Connector, Straight w/O-Ring

$

$

Not available

Cub Cadet 721-3046

O-Ring, 3/4 OD Tube

$

$

Not available

39

Cub Cadet 727-3082

Elbow, 90 Deg w/O-Ring

$

$

Not available

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

40

Cub Cadet 727-3083

Head, Filter

$

$

Not available

41

Cub Cadet 731-3133

Fan, Hydro 8"
(Superseded to 931-3133)

$34.99

$

In Stock, only 3 left!

0

42

Cub Cadet 732-0633

Spring, Compression 1.20 OD X 2.70 Lg
(Superseded to 932-0633)

$

$

Not available

43

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

45

Cub Cadet 736-0463

Washer, Flat .25 X .62 X .0515 Thk

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet 736-3000

Washer, Flat .25 X .750 X .119 Thk
(Superseded to 936-0176)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-3008

Washer, Flat .312 X .750 X .119 Thk
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

48

Cub Cadet 736-3070

Washer, Flat .206 X .448 X .105 Thk

$

$

Not available

49

Cub Cadet 736-3111

Washer, Flat 1.25 X 1.937 X .031 Thk

$

$

Not available

50

Cub Cadet 741-3045

Washer, Flat 1.25 X 1.937 X .0781 Thk

$

$

Not available

51

Cub Cadet 750-3074

Spacer, Input Pinion

$

$

Not available

52

Cub Cadet 750-3098

Guide, Neutral Stop

$

$

Not available

53

Cub Cadet 750-3100

Hub, Fan Mtg

$

$

Not available

54

Cub Cadet 756-3061

Pulley, Transmission Drive

$

$

Not available

55

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 X .50 Lg

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 710-3083

Screw, Hex Cap 5/16-18 X 1.38 Lg GR 5

$4.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 712-3004A

Nut, Hex Flange Lock 5/16-18 GR 5

$3.49

$

In Stock, Qty 20+

0

58

Cub Cadet 748-3063

Spacer .317 ID X .625 OD X .343 Lg

$

$

Not available

59

Cub Cadet 710-1326

Screw, Socket Hd. 10-24 X 1.5 Lg

$

$

Not available
