4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Upper Handle Assembly Parts Diagram

Walk-Behind Mower Pro Performer

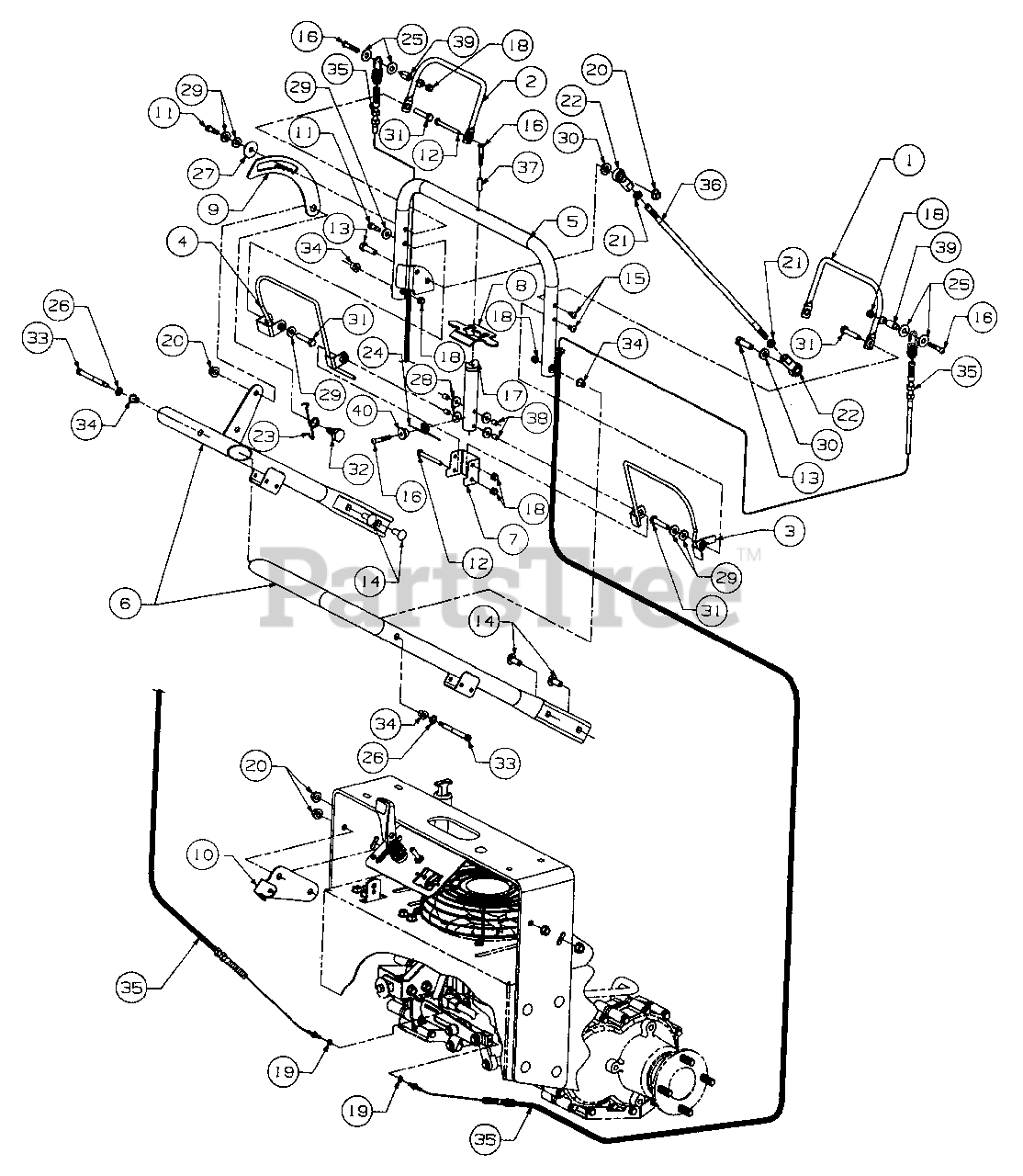

Upper Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0122A

Lever w/Bushings, R.H. Brake

$

$

Not available

2

Cub Cadet 603-0123A

Lever w/Bushings, L.H. Brake

$

$

Not available

3

Cub Cadet 603-0164A

Lever w/Bushings, Operator-Present

$

$

Currently unavailable

4

Cub Cadet 759-3718A

Lever w/Bushings & Graphic, Speed Set

$

$

Not available

Cub Cadet 777-0996

Graphic, Speed Set

$

$

Not available

5

Cub Cadet 759-3712

Bar w/Graphics, Traction Control

$

$

Currently unavailable

Cub Cadet 777-0993

Graphic, F-N-R

$

$

Not available

Cub Cadet 777-0994

Graphic, Traction Control

$

$

Not available

6

Cub Cadet 603-0393

Bar, Lower Handle

Variations

Cub Cadet 603-0393-0498

BAR, LOWER HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

$

$

7

Cub Cadet 703-2269A

Stop, handle

$

$

Not available

8

Cub Cadet 759-3717

Latch w/Graphic, Park Brake

$

$

Not available

Cub Cadet 777-0995

Graphic, Park Brake

$

$

Not available

9

Cub Cadet 703-2449

Plate, Speed Set

$

$

Not available

10

Cub Cadet 703-2581

Bracket, Cable Mounting

$

$

Not available

11

Cub Cadet 710-0491

Screw, Socket Hd Shoulder

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1122

Screw, Hex Cap, 1/4-20 X 2.50 Lg GR5

$7.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3256

Screw, Button Hd, 1/4-20 X .50 Lg

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3257

Screw, Button Hd, 1/4-20 X 1.50 Lg

$

$

Not available

17

Cub Cadet 711-3370A

Post, Parking Brake

$

$

Not available

18

Cub Cadet 712-0324

Nut, Hex Toplock, 1/4-20

$3.99

$

In Stock, only 4 left!

0

19

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.99

$

In Stock, Qty 5

0

20

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 16

0

22

Cub Cadet 723-0420

Rod End, Spherical, 3/8-24

$

$

Not available

23

Cub Cadet 732-3114

Spring, Torsion

$

$

Not available

24

Cub Cadet 732-3124

Spring, Torsion

$

$

Not available

25

Cub Cadet 736-0159

Washer, Flat, .344 X .88 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0204

Washer, Flat, .344 X .62 X .03 Thk

$4.49

$

In Stock, Qty 19

0

27

Cub Cadet 736-0362

Washer, Flat, .32 X 1.25 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-3000

Washer, Flat, .281 X .750 X .119 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-3008

Washer, Flat, .344 X .750 X .120 Thk
(Superseded to 936-3008)

$7.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-3010

Washer, Flat, .407 X .8712 X .135 Thk

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 738-3114

Bolt, Shoulder
(Superseded to 938-3114)

$

$

Not available

32

Cub Cadet 738-3127

Bolt, Stepped Shoulder

$

$

Not available

33

Cub Cadet 738-3159

Bolt, Shoulder

$

$

Not available

34

Cub Cadet 741-3071

Bushing, Fliplock

$

$

Not available

35

Cub Cadet 746-3063

Cable, Brake Clutch
(Superseded to 946-3063)

$95.99

$

In Stock, only 4 left!

0

36

Cub Cadet 747-3169A

Rod, F/R Control

$

$

Currently unavailable

37

Cub Cadet 750-3108

Spacer, 5/16 OD X 1/4 ID X .94 Lg

$

$

Not available

38

Cub Cadet 750-3109

Spacer, 5/16 OD X 1/4 ID X .375 Lg

$

$

Not available

39

Cub Cadet 750-3110

Spacer, Cable
(Superseded to 950-3110)

$

$

Not available

40

Cub Cadet 750-3157

Spacer, Spring Mtg

$

$

Not available
