4816 F (553C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Air Cleaner Parts Diagram

Walk-Behind Mower

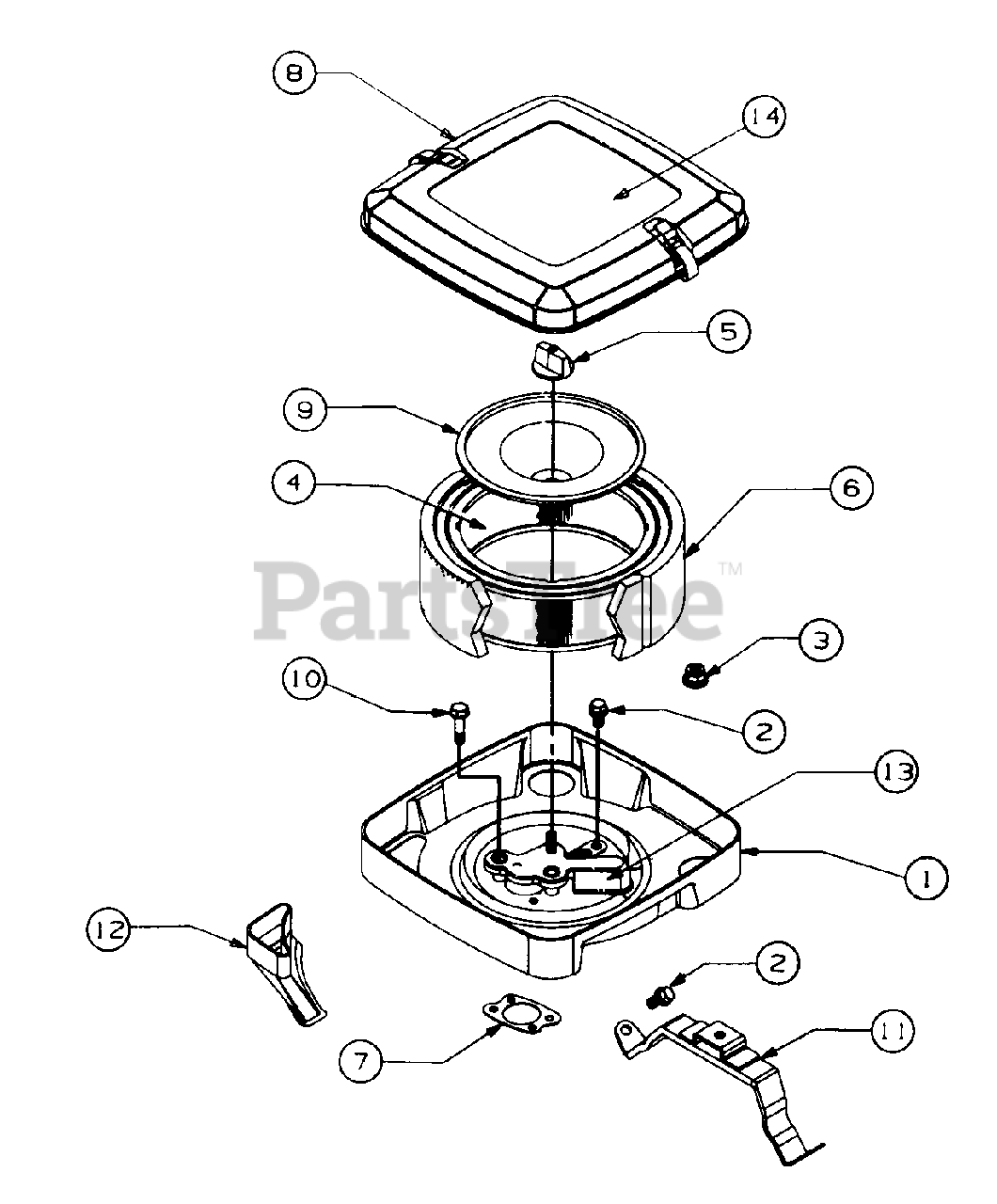

Air Cleaner Parts Diagram

  • Title

1

Cub Cadet BS-807857

Base Assy, Air Cleaner
(Superseded to BS-691561)

$

$

Not available

2

Cub Cadet BS-805406

Screw, Sem
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet BS-810078

Nut, Hex Washer Hd

$

$

Not available

4

Cub Cadet BS-394018

Cartridge, Air Filter
(Superseded to BS-394018S)

$25.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-491875

Knob, Air Cleaner
(Superseded to BS-691985)

$7.99

$

In Stock, Qty 7

0

6

Cub Cadet BS-272490

Element, Pre-Cleaner
(Superseded to BS-272490S)

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-805655

Gasket, Air Cleaner
(Superseded to BS-692081)

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-807862

Cover Assy, Air Cleaner
(Superseded to BS-699959)

$59.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-805631

Plate, Air Filter
(Superseded to BS-844932)

$22.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-805057

Screw, Sem
(Superseded to BS-691492)

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-807859

Bracket, Air Cleaner

$

$

Not available

12

Cub Cadet BS-805632

Tube, Air Inlet

$

$

Not available

13

Cub Cadet BS-807797

Deflector, Air Cleaner
(Superseded to BS-844930)

$36.99

$

Usually ships in 2-12 days

0

14

Cub Cadet 779-3602

Label, V-Twin Engine

$

$

Not available
