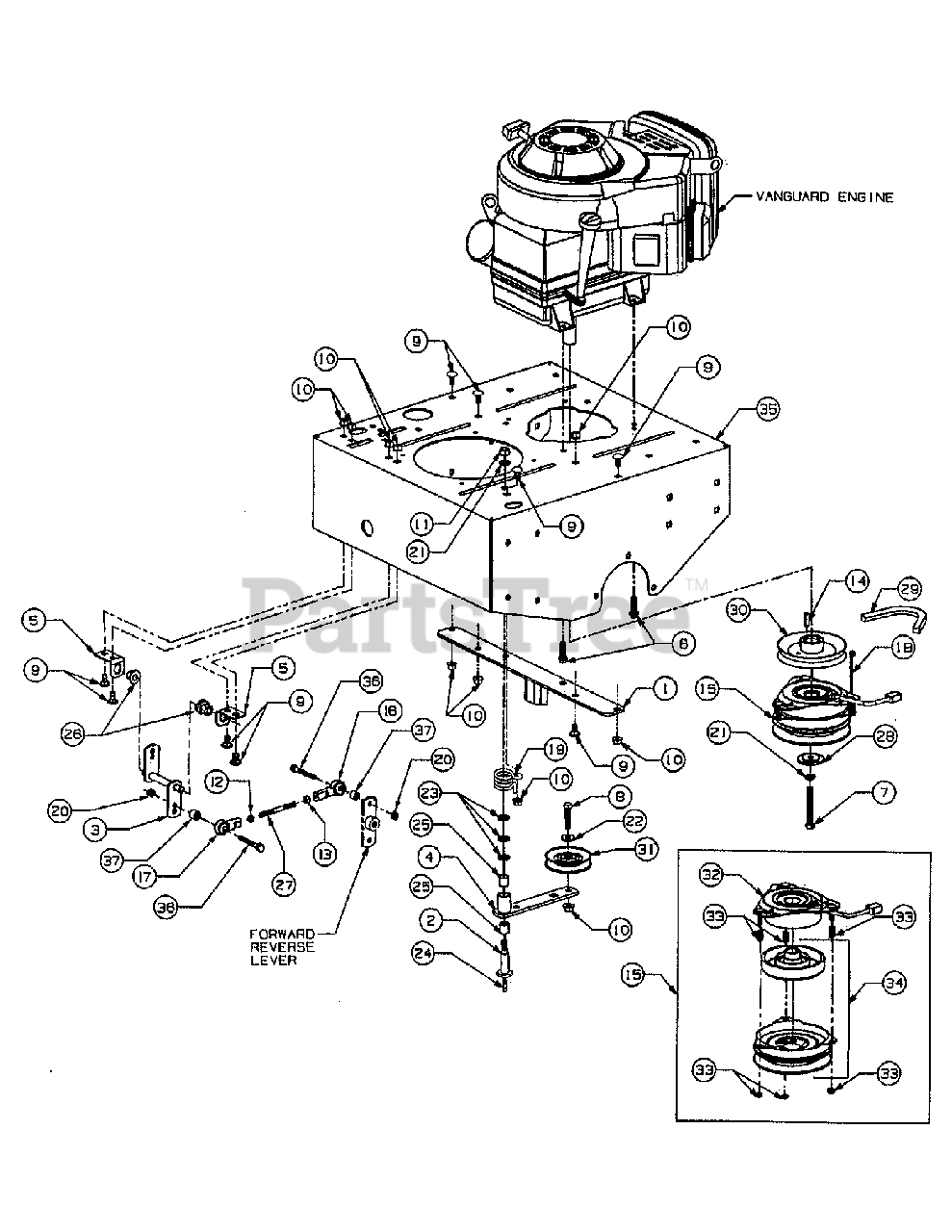

4816 F (553C565M100) - Cub Cadet Walk-Behind Mower (SN: 503791 & Above) Engine Deck Assembly Parts Diagram

Walk-Behind Mower

Engine Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0056

Retainer,PTO Clutch

Variations

603-0056-0498

Cub Cadet 603-0056-0498

RETAINER, PTO CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$23.99

$

In Stock, Qty 5

0

3

Cub Cadet 603-0155

Lever, F/R Control

$

$

Not available

4

Cub Cadet 603-0209

Arm, Assembly, Idler

Note: (Incl. Ref No.25 Qty 2)

$

$

Not available

5

Cub Cadet 703-2425

Bracket, Lever Angle

$

$

Not available

6

Cub Cadet 710-0502A

Screw, Hex L-Wash Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-0510

Screw, Hex Cap, 7/16-20 x 3.0 Gr 5

$11.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 x 1.75
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 19

0

9

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Gr 5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3019

Nut, Hex, 7/16-14 Gr 5

$7.49

$

In Stock, Qty 6

0

12

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 LH Thread
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-3057

Nut, Hex, 5/16-24 Gr 5
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

14

Cub Cadet 714-0128

Key Square, 1/4 x 1.0

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 717-3389

Clutch Assembly, PTO
(Superseded to 917-3389)

$680.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 723-0449

Rod End, Spherical, 5/16-24

$

$

Not available

17

Cub Cadet 723-0450

Rod End, Spherical, 5/16-24, LH Thread

$

$

Not available

18

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$25.99

$

In Stock, Qty 16

0

20

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 Gr 5

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0171

Washer, Lock 7/16

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0206

Washer, Special, .378 x 1.00 x .125 Thk
(Superseded to 936-0206)

$4.99

$

In Stock, Qty 10

0

23

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 14

0

24

Cub Cadet 737-0280

Fitting, Lube

$8.49

$

In Stock, only 2 left!

0

25

Cub Cadet 741-3063

Bearing, Sleeve

$18.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 741-0324

Bearing, Hex Flange
(Superseded to 741-0324A)

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-3170

Rod, Control

$

$

Not available

28

Cub Cadet 750-3106

Spacer, Clutch

$35.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 754-0244

Belt, Transmission, 1/2 x 40.0
(Superseded to 954-0244)

$42.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 756-3060

Pulley, Engine
(Superseded to 756-3060A)

$103.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-3068

Pulley, V-Idler

$

$

Not available

32

Cub Cadet 759-3694

Field Assembly
(Superseded to 959-3694)

$321.99

$

In Stock, only 1 left!

0

33

Cub Cadet 759-3697

Mouting Accessories

Note: w/Hex Nuts & Springs

$

$

Not available

34

Cub Cadet 759-3739

Kit, Armature & Rotor
(Superseded to 959-3739)

$

$

Not available

35

Cub Cadet 759-3767

Deck w.Graphic, Engine Mtg

$

$

Not available

35

Cub Cadet 777-1585A

Graphic, Warning

$

$

Not available

36

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.38 Gr 5

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 748-3063

Spacer, .317 ID x .625 OD x .343

$

$

Not available
