4816 F (554C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Carburetor And Carburetor Gasket Set Parts Diagram

Walk-Behind Mower

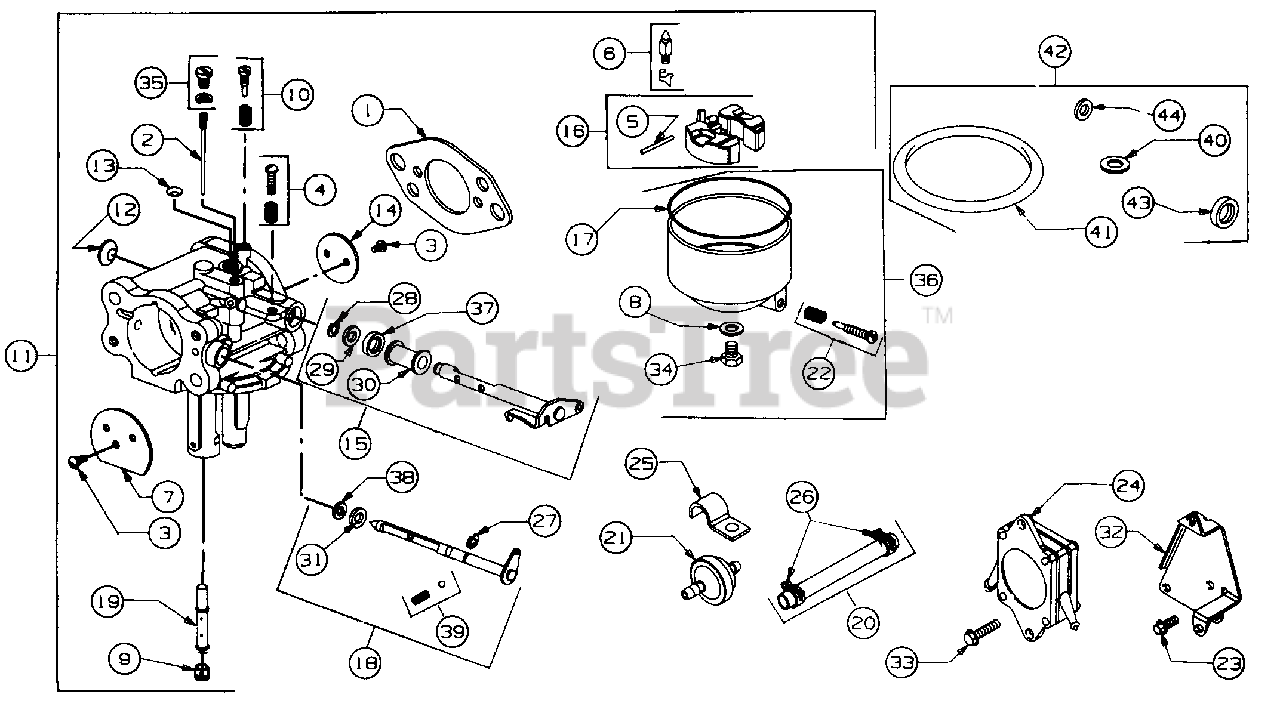

Carburetor And Carburetor Gasket Set Parts Diagram

  • Title

1

Cub Cadet BS-805700

Gasket, Carburetor Mtg
(Superseded to BS-691694)

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet BS-805777

Nozzle, Carburetor

$

$

Currently unavailable

3

Cub Cadet BS-805561

Screw, Valve Mtg

$

$

Not available

4

Cub Cadet BS-807705

Screw, Throttle Adjusting

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-805586

Pin, Float Hinge

$

$

Not available

6

Cub Cadet BS-807706

Valve, Fuel Inlet

$46.99

$

In Stock, only 3 left!

0

7

Cub Cadet BS-805562

Valve, Choke

$

$

Not available

8

Gasket, Sealing

Note: (Sold in kit only)

$

$

Not available

9

Jet, Main

Note: (Sold in kit and with Ref No. 19)

$

$

Not available

10

Cub Cadet BS-807707

Valve Assy, Carburetor Idle

$43.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-807961

Carburetor Assy

$

$

Not available

12

Cub Cadet BS-805570

Plug, Welch

$

$

Not available

13

Cub Cadet BS-805571

Plug, Welch

$

$

Not available

14

Cub Cadet BS-805572

Valve, Throttle

$

$

Not available

15

Cub Cadet BS-807709

Shaft, Throttle

$

$

Not available

16

Cub Cadet BS-807710

Float Assy, Carburetor

$45.99

$

Usually ships in 2-12 days

0

17

Gasket, Bowl Mtg (Sold in kit only)

$

$

Not available

18

Cub Cadet BS-807711

Shaft, Choke

$

$

Not available

19

Cub Cadet BS-807960

Nozzle (Includes Ref No. 9)

$40.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-393815

Hose, Fuel, 11" Lg

$

$

Not available

Cub Cadet BS-296004

Hose, Fuel, 23" Lg
(Superseded to BS-791745)

Note: (Cut to required length)

$11.99

$

In Stock, Qty 20+

0

21

Cub Cadet BS-493629

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-807713

Drain, Carburetor Bowl

$

$

Not available

23

Cub Cadet BS-805025

Screw, Sem

$

$

Not available

24

Cub Cadet BS-491922

Pump, Fuel
(Superseded to BS-808656)

$30.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-223167

Clamp, Fuel Hose

$

$

Not available

26

Cub Cadet BS-93053

Clamp, Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet BS-805578

Retainer, Choke Shaft

$

$

Not available

28

Cub Cadet BS-805577

Retainer, Throttle Shaft

$

$

Not available

29

Cub Cadet BS-805576

Collar, Throttle

$

$

Not available

30

Cub Cadet BS-805574

Collar, Throttle

$

$

Not available

31

Cub Cadet BS-805580

Collar, Choke

$

$

Currently unavailable

32

Cub Cadet BS-807685

Bracket, Fuel Pump
(Superseded to BS-691559)

$25.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-805317

Screw, Mtg
(Superseded to BS-807084)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet BS-805592

Screw, Bowl Mtg

$

$

Not available

35

Cub Cadet BS-807714

Plug & Seal, Carburetor

$8.99

$

In Stock, only 1 left!

0

36

Cub Cadet BS-807715

Bowl Assy, Float

$111.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-805575

Seal, Throttle Shaft

$

$

Currently unavailable

38

Cub Cadet BS-805581

Seal, Choke Shaft

$

$

Not available

39

Cub Cadet BS-807717

Ball, Choke Locator

$

$

Not available

40

Gasket, Sealing

Note: (Sold in kit only)

$

$

Not available

41

Gasket, Bowl Mtg

Note: (Sold in kit only)

$

$

Not available

42

Cub Cadet BS-807716

Gasket Set, Carburetor

$

$

Not available

43

Cub Cadet BS-805575

Seal, Throttle Shaft

$

$

Currently unavailable

44

Cub Cadet BS-805581

Seal, Choke Shaft

$

$

Not available

Cub Cadet BS-807962

Overhaul Kit, Carburetor

Note: (Includes Ref No. 5, 6, 8, 9, 10, 12, 13, 17, 27, 28, 29, 30, 31, 37, 38, 39, 40, 41, 43 & 44)

$

$

Not available

Cub Cadet BS-807716

Gasket Set Carburetor

Note: (Includes Ref No. 8, 17, 37, 38, 40, 41, 43 & 44)

$

$

Not available
