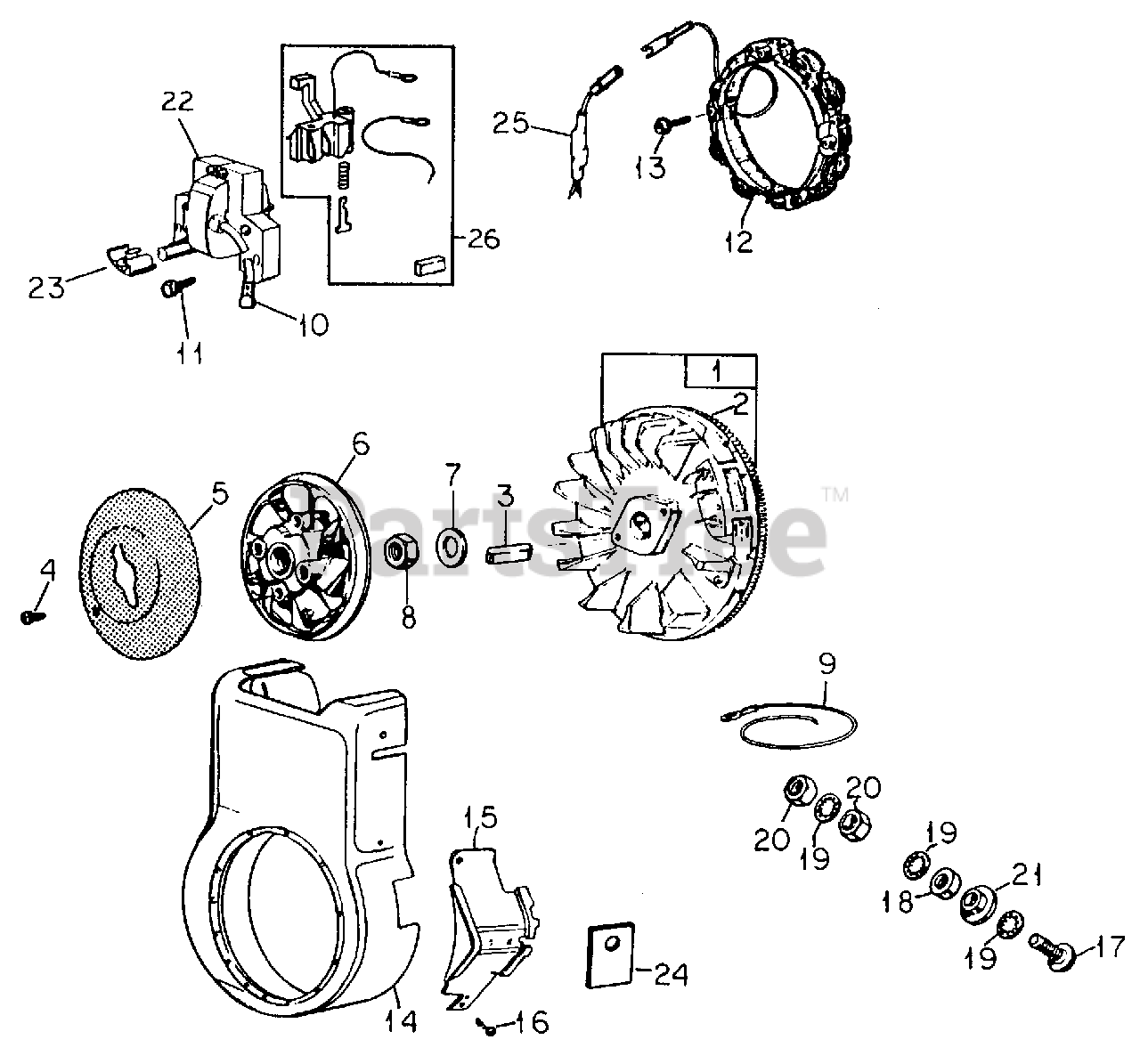

482 (144-482-100) - Cub Cadet Garden Tractor Flywheel Magneto & Points Parts Diagram

Garden Tractor

Flywheel Magneto & Points Parts Diagram

  • Title

1

~NLA

Flywheel w/Ring Gear Assy, Magneto

$

$

Not available

2

Cub Cadet BS-392134

Gear, Flywheel Ring
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet BS-93808

Screw, Flywheel Screen
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-223008

Screw, Flywheel

$

$

Not available

6

Cub Cadet BS-212418

Fan, Booster

$45.99

$

Usually ships in 2-12 days

0

Cub Cadet IH-78227-C1

Bolt, Fan Booster

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

8

Cub Cadet 712-3056

Nut, 5/8-NF Jam Type 5

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet BS-398808

Cable Assy, Ground

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-221798

Terminal, Magneto Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-93381

Screw, Armature Mounting

$

$

Not available

12

Cub Cadet BS-392595

Stator, Alternator
(Superseded to BS-592829)

$102.99

$

In Stock, only 4 left!

0

13

Cub Cadet BS-93621

Screw, Stator Mounting
(Superseded to BS-691183)

$

$

Not available

14

Cub Cadet IH-76579-C1

Housing, Blower

$

$

Currently unavailable

15

Cub Cadet BS-395405

Cover, Starter Shield

$

$

Not available

16

Cub Cadet BS-93410

Screw, Starter Shield

$7.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-93735

Screw, Terminal Mounting

$

$

Currently unavailable

18

Cub Cadet BS-66068

Washer, Insulating

$

$

Currently unavailable

19

Cub Cadet BS-92791

Washer, Lock
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

20

Cub Cadet 712-0142

Nut, Terminal

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet BS-66554

Collar, Insulating

$

$

Currently unavailable

22

Cub Cadet BS-398811

Armature Assy

$63.99

$

In Stock, Qty 12

0

23

Cub Cadet BS-280186

Shield, Capsule

$5.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222095

Retainer, Wire

$

$

Currently unavailable

Cub Cadet BS-93705

Screw, Retainer
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-392606

Cable Assy, Alternator
(Superseded to BS-691955)

$69.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-394970

Module, Magnetron Ignition

$

$

Not available
