482 (190-482-100) - Cub Cadet 32" Lawn Sweeper 10 CU. FT. Utility Cart/Model 653A Parts Diagram

32" Lawn Sweeper

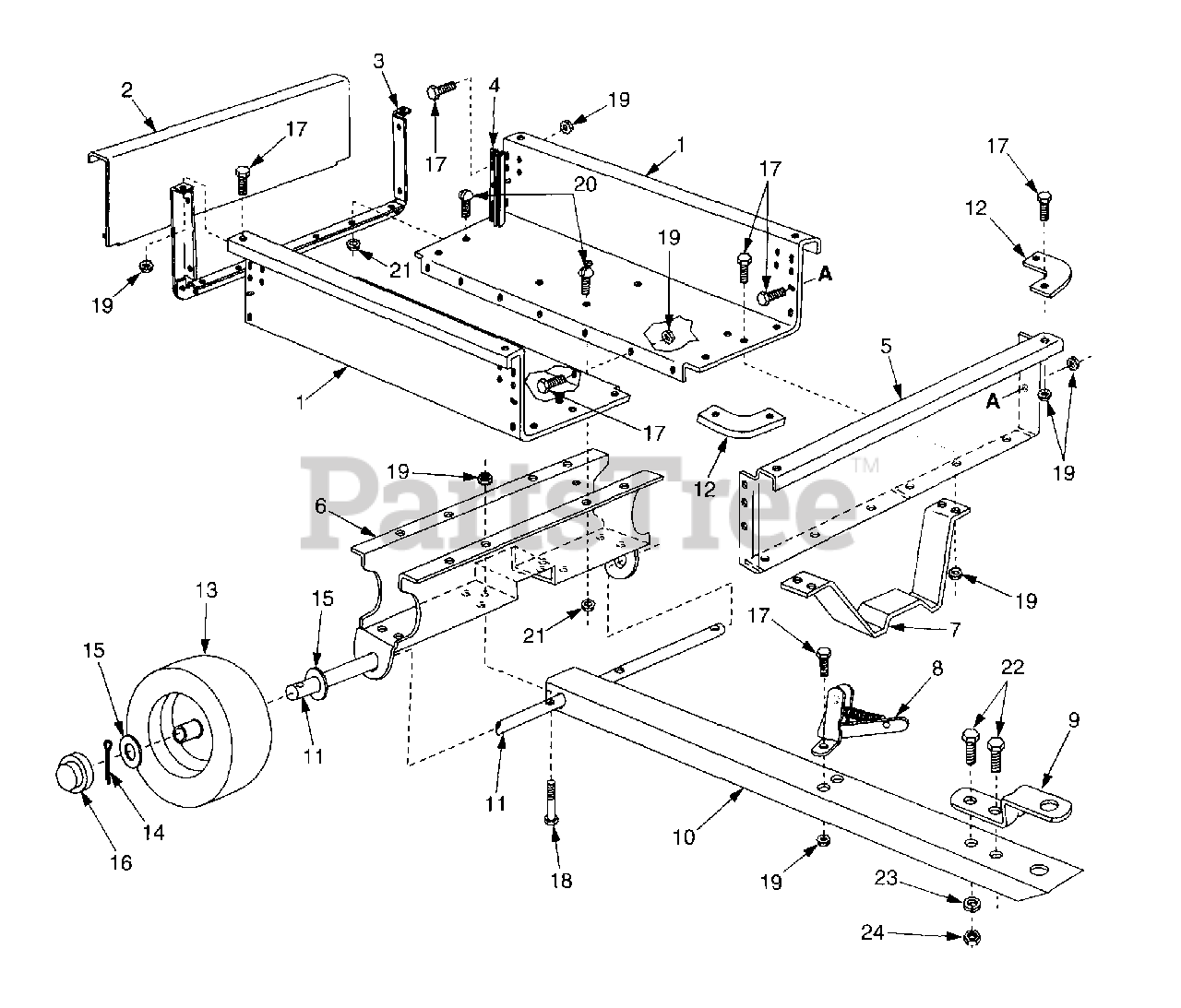

10 CU. FT. Utility Cart/Model 653A Parts Diagram

  • Title

1

Cub Cadet AF-23985

Cart Body

Variations

Cub Cadet AF-23985-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23985-0650

CART BODY - RED METALLIC (0650)

$

$

Not available

$

$

2

Cub Cadet AF-23502

Tailgate

Variations

Cub Cadet AF-23502-0498

TAILGATE (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23502-0499

TAILGATE (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23502-0650

TAILGATE (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

$

$

3

Cub Cadet AF-62458

Tailgate Reinforcement Bracket

Variations

Cub Cadet AF-62458-0637

ANGLE ASSEMBLY-REAR POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet AF-23548

Guide, Tailgate

$

$

Not available

5

Cub Cadet AF-23492

Front Panel

Variations

Cub Cadet AF-23492-0498

PANEL-FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23492-0499

PANEL-FRONT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23492-0650

FRONT PANEL - RED METALLIC (0650)

$

$

Not available

$

$

6

Cub Cadet AF-23506

Wheel Support
(Superseded to AF-23506-0637)

Variations

Cub Cadet AF-23506-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet AF-23297

Latch Stand Bracket
(Superseded to AF-23297-0637)

Variations

Cub Cadet AF-23297-0637

Latch Stan Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet AF-62455

Ass'y., Latch Lock

$

$

Not available

9

Cub Cadet AF-23014

Hitch Bracket
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-23986

Draw Bar Tongue

Variations

Cub Cadet AF-23986-0637

DRAW BAR TONGUE - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet AF-23026

Axle, Wheel 3/4" Dia.
(Superseded to AF-23026-0637)

Variations

Cub Cadet AF-23026-0637

AXLE-WHEEL 3/4 DIA - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet AF-23484

Cap, Front Corner

Variations

Cub Cadet AF-23484-0498

CAP-FRONT CORNER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23484-0499

FRONT CORNER CAP (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23484-0650

CAP-FRONT CORNER - RED METALLIC (0650)

$

$

Not available

$

$

13

Cub Cadet AF-43008

Wheel, 16-4.0 x 8.0

Variations

Cub Cadet AF-43008-0499

WHEEL ASSEMBLY 4.30X3.75 - CUB BEIGE (0499)

$

$

Not available

$

$

14

Cub Cadet 714-0470

Cotter Pin, 1/8" Dia. x 1"

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0316

Washer, Flat 3/4"

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-0484A

Hub Cap
(Superseded to 931-0484A)

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3013

Hex Bolt, 1/4-20 x 1/2"

$4.49

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0886

Hex Bolt, 1/4-20 x 1-1/2"
(Superseded to 910-0886)

$

$

Not available

19

Cub Cadet 712-0271

Hex Nut, 1/4-20 Thread (Sems)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet AF-43814

Slt. Truss Hd. Bolt 5/16-18 x 3/4" Lg.

$

$

Not available

21

Cub Cadet AF-46980

Hex Nut, 5/16-18 Thread (Sems)
(Superseded to 712-0265)

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0253

Hex Bolt, 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0169

Lock Washer, 3/8"

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0798

Hex nut, 3/8-16 Thread

$3.99

$

In Stock, only 2 left!

0
