482 (590-482-100) - Cub Cadet Sub-Frame Sub-Frame & Mounting Brackets Parts Diagram

Sub-Frame

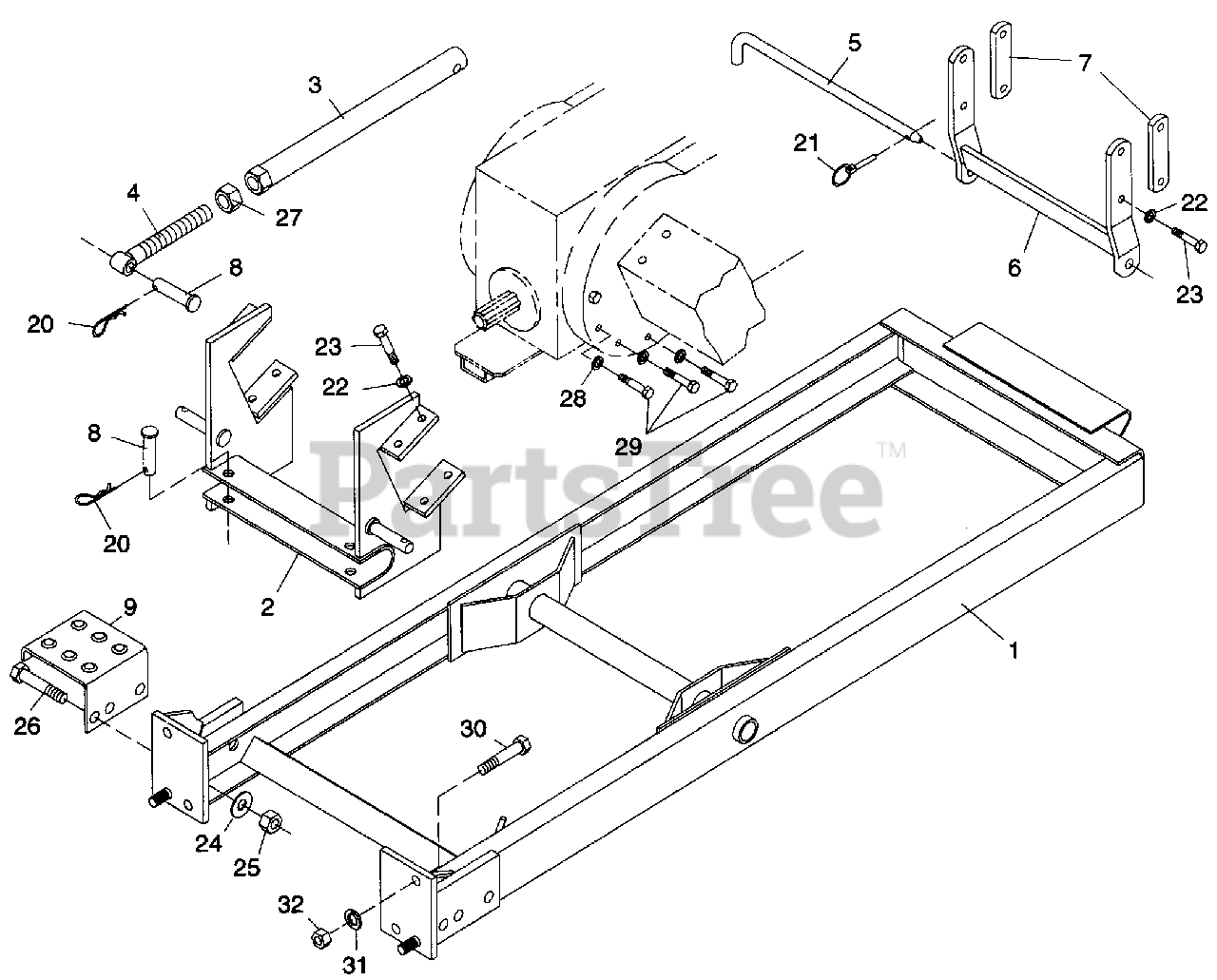

Sub-Frame & Mounting Brackets Parts Diagram

  • Title

1

Cub Cadet WM-38661

Backhoe sub-frame 24.4 x 74 assembly

$

$

Not available

2

Cub Cadet WM-66345

Rear mounting bracket assembly

$

$

Not available

3

Cub Cadet WM-64954

Outer link assembly, 19.5

$

$

Not available

4

Cub Cadet WM-64956

Inner top link assembly

$

$

Not available

5

Cub Cadet WM-62674

3/4 x 17.75 Lock pin

$

$

Not available

6

Cub Cadet WM-66351

Front mounting bracket assembly

$

$

Not available

7

Cub Cadet WM-66349

Link, .50 x 1.50 x 6.25

$

$

Not available

8

Cub Cadet WM-62540

3/4 x 3-1/4 Clevis pin

$

$

Not available

9

Cub Cadet WM-62944

Step

$

$

Not available

20

Cub Cadet WM-2688

1/8 Safety pin

Note: Obtain Locally

$

$

Currently unavailable

21

Cub Cadet WM-62043

1/4 x 1-3/4 Klik pin

$

$

Not available

22

Cub Cadet WM-62580

9/16 Standard lockwasher

$

$

Not available

23

Cub Cadet WM-23030

14mm x 2.0P x 35mm Hex head cap screw

$

$

Not available

24

Cub Cadet WM-30008

7/8 Lockwasher
(Superseded to 936-0171)

$4.99

$

In Stock, only 4 left!

0

25

Cub Cadet WM-4261

7/8 Hex nut

$

$

Not available

26

Cub Cadet WM-62541

7/8 NC x 2-1/2 Hex head cap screw GR5

$

$

Not available

27

Cub Cadet WM-3132

1" NC Hex nut

$

$

Not available

28

Cub Cadet WM-855

1/2 Lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.99

$

In Stock, Qty 9

0

29

Cub Cadet WM-66354

12mm x 1.75P x 80mm Hex head cap screw

$

$

Not available

30

Cub Cadet WM-735

3/4 NC x 2 Hex head cap screw GR5

$

$

Currently unavailable

31

Cub Cadet WM-2522

3/4 Lockwasher
(Superseded to 936-0364)

$

$

Not available

32

Cub Cadet WM-1450

3/4 Nut
(Superseded to 712-3107)

$12.99

$

Usually ships in 3-6 days

0
