483-SU - Cub Cadet Engine (2010 & After) 483-SU-10 Cylinder Head Parts Diagram

Engine

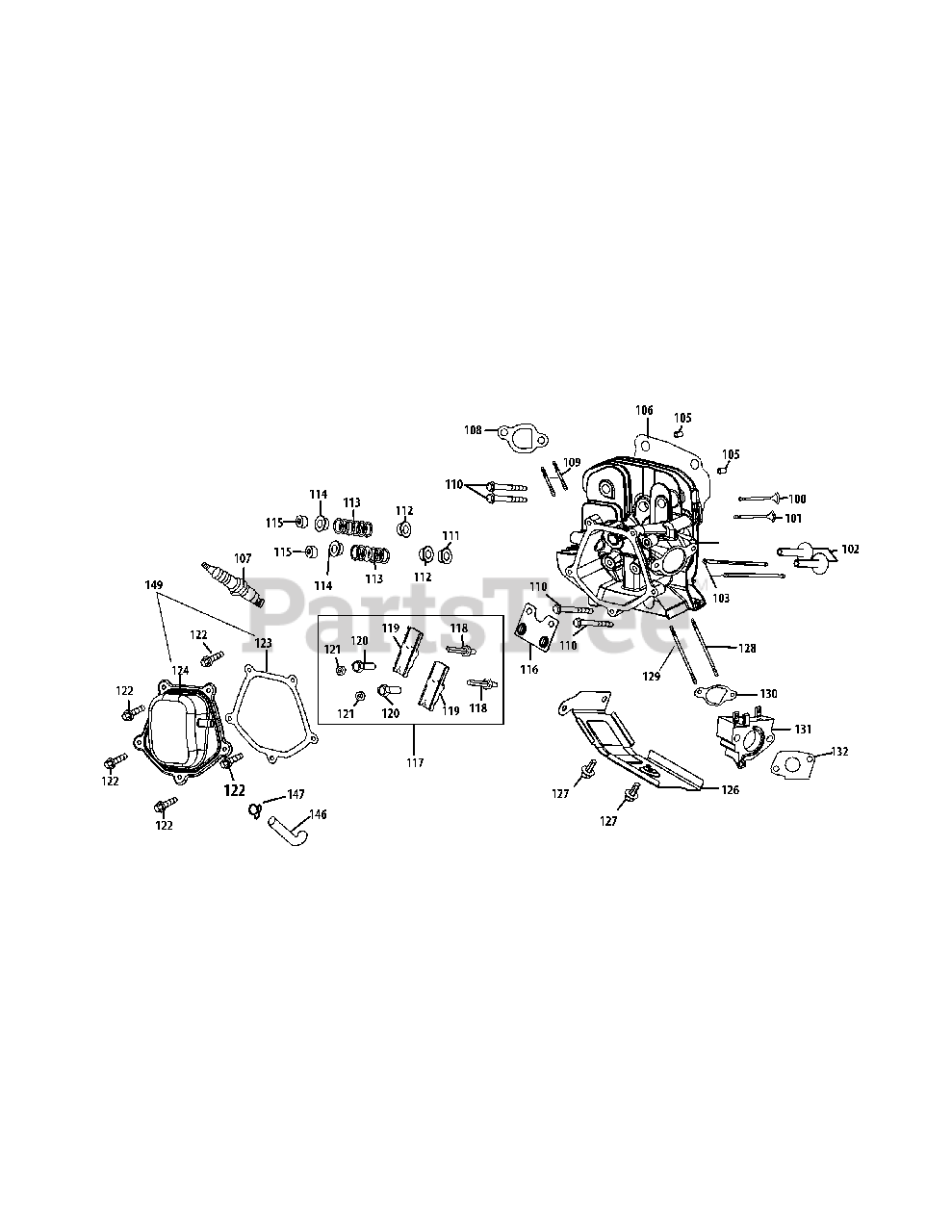

483-SU-10 Cylinder Head Parts Diagram

  • Title

100

Cub Cadet 951-11337

Valve Kit

$46.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-11337

Valve Kit

$46.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-11962

Tappet

$7.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 951-11335

Push Rod (2X)

$23.99

$

In Stock, only 1 left!

0

104

Cub Cadet 951-11329A

Cylinder Head Ass'y
(Superseded to 951-11329B)

Note: (Incl Ref No. 100,101,104,106,108-116, 118-121,123,128-131)

$309.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 715-04097

Dowel Pin, 12 × 20

$5.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-11963

Gasket, Cylinder Head
(Superseded to 951-11963A)

$15.99

$

In Stock, only 1 left!

0

107

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

108

Cub Cadet 951-11212

Exhaust Pipe Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

109

Cub Cadet 710-04964

Stud, M8 x 48.5

$5.99

$

In Stock, only 1 left!

0

109

Cub Cadet 951-11207

Muffler Stud Ass’y

$7.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 710-05053

Bolt, M10 × 1.25 × 87

$

$

Not available

111

Cub Cadet 751-11964

Intake Valve Seal
(Superseded to 951-11964A)

$10.99

$

In Stock, Qty 7

0

112

Cub Cadet 751-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

In Stock, only 4 left!

0

113

Cub Cadet 751-12078

Valve Spring
(Superseded to 951-12078)

$3.99

$

In Stock, only 3 left!

0

114

Cub Cadet 751-12080

Retainer, Ex.Valve Spring
(Superseded to 951-12080)

$3.99

$

In Stock, only 4 left!

0

115

Cub Cadet 751-12081

Adjuster, Exh Valve
(Superseded to 951-12269)

$5.99

$

In Stock, only 2 left!

0

116

Cub Cadet 951-11965

Push Rod Guide
(Superseded to 951-11965B)

$6.49

$

Usually ships in 3-6 days

0

117

Cub Cadet 951-11981

Rocker Arm Ass’y
(Superseded to 951-11981A)

$37.99

$

In Stock, Qty 7

0

118

Cub Cadet 710-04962

Bolt, Pivot

$5.99

$

In Stock, only 1 left!

0

119

Cub Cadet 951-11966

Rocker Arm

$7.99

$

In Stock, Qty 15

0

120

Cub Cadet 751-11123

Adjusting Nut, Valve

$9.99

$

In Stock, Qty 10

0

121

Cub Cadet 751-11124

Nut, Pivot Locking

$8.99

$

In Stock, Qty 6

0

122

Cub Cadet 710-05054

Valve Cover Bolt

$5.99

$

In Stock, only 2 left!

0

123

Cub Cadet 951-11967

Valve Cover Gasket

$15.99

$

Usually ships in 3-6 days

0

124

Cub Cadet 951-11220

Valve Cover

$32.99

$

Usually ships in 3-6 days

0

126

Cub Cadet 951-11317

Cylinder Baffle

$25.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 710-05055

Stud, M6 x 8 x 98

$5.99

$

Usually ships in 3-6 days

0

129

Cub Cadet 710-05056

Stud, M6 x 8 x 118

$6.49

$

Usually ships in 3-6 days

0

130

Cub Cadet 951-11315

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 8

0

131

Cub Cadet 951-11316

Carburetor Insulator Plate
(Superseded to 751P11316A)

$8.49

$

In Stock, only 1 left!

0

132

Cub Cadet 951-11223

Carburetor Gasket

$4.99

$

In Stock, Qty 20+

0

146

Cub Cadet 951-11221

Breather Hose

$6.49

$

In Stock, only 1 left!

0

147

Cub Cadet 726-04101

Clamp

$4.49

$

In Stock, only 1 left!

0

149

Cub Cadet 951-11333

Valve Cover Kit

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11334

Cylinder Head Kit
(Superseded to 951-12555)

Note: (Incl Ref No. 106,110,111,123) Not shown

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11331

Gasket Kit - External

Note: (Incl Ref No. 79,108,123,130-132) Not shown

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11330A

Gasket Kit - Complete

Note: (Incl Ref No. 53,60,65,79,81,106,108,123,130-132) Not shown

$64.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11328A

Short Block Ass’y
(Superseded to 951-11328B)

Note: (Incl Ref No. 41-45,49-61,63-68,77-79,81,102,105,106,108,110,123,130,131, 141, 142) Not shown

$837.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z483-SU-10

Replacement Engine
(Superseded to 952Z683-WUB)

Note: Not shown

$1395.99

$

Usually ships in 3-6 days

0
