483-SUB - MTD Engine 483-SUB Starter Assembly & Blower Housing Parts Diagram

Engine

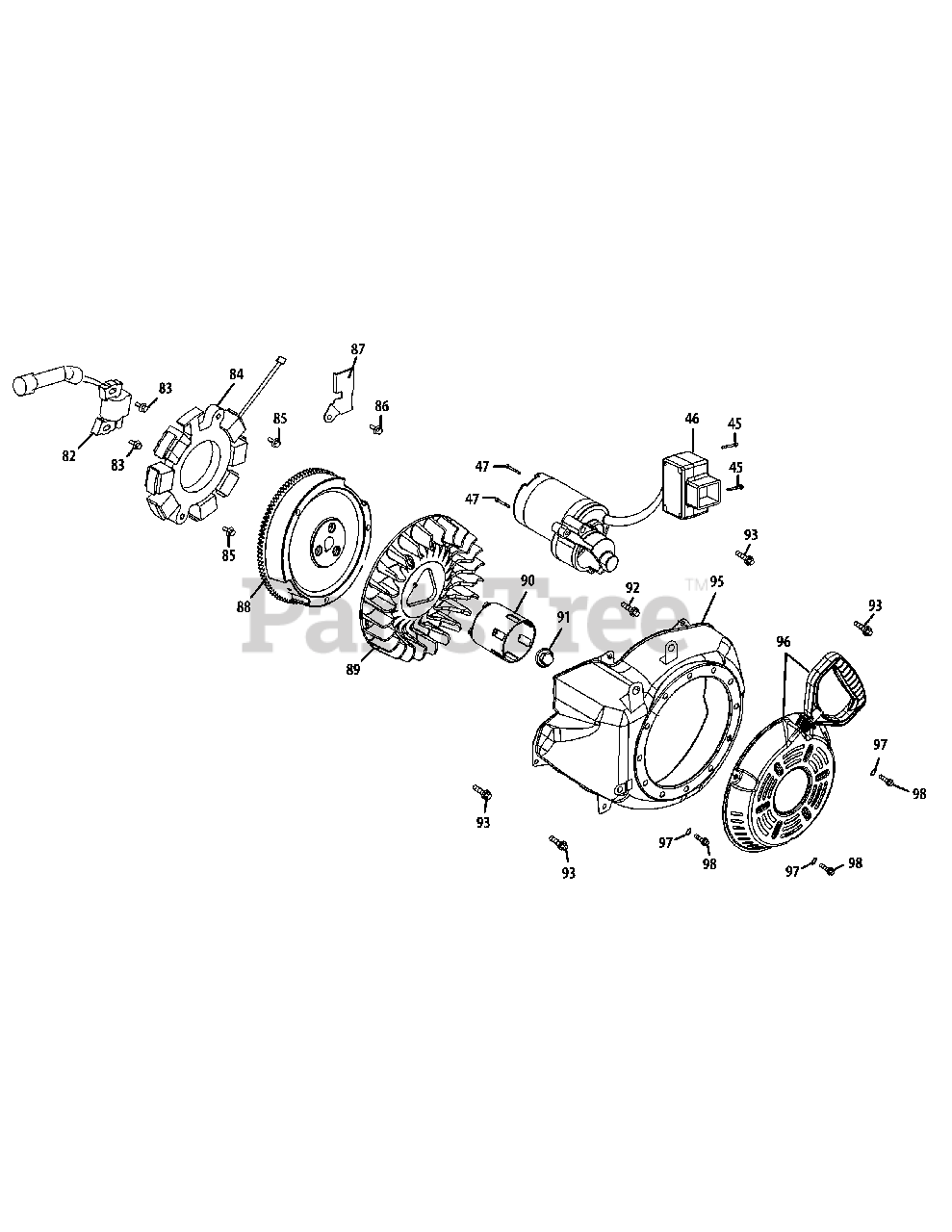

483-SUB Starter Assembly & Blower Housing Parts Diagram

  • Title

45

MTD 710-04965

Screw M4 X 55

$6.49

$

Usually ships in 3-6 days

0

46

MTD 951-11196

Electric Starter

$379.99

$

Usually ships in 3-6 days

0

47

MTD 710-04967

Bolt M8×55

$5.99

$

Usually ships in 3-6 days

0

82

MTD 951-11305

Ignition Coil Assembly
(Superseded to 951-11305A)

$72.99

$

In Stock, only 1 left!

0

83

MTD 710-05350

Ignition Coil Bolt

$3.99

$

Usually ships in 3-6 days

0

84

MTD 951-12553

Alternator Assembly

$82.99

$

Usually ships in 3-6 days

0

85

MTD 710-04969

Bolt M6×30

$3.99

$

In Stock, only 4 left!

0

86

MTD 710-04966

Bolt M6×8

$5.99

$

Usually ships in 3-6 days

0

87

MTD 951-11186

Alternator Wire Clamp Bracket

$4.49

$

Usually ships in 3-6 days

0

88

MTD 951-12556

Flywheel

$189.99

$

Usually ships in 3-6 days

0

89

MTD 951-11313

Cooling Fan
(Superseded to 951-11313A)

$46.99

$

Usually ships in 3-6 days

0

90

MTD 951-11314

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

91

MTD 712-04220

Flywheel Nut, M14×1.5

$5.99

$

Usually ships in 3-6 days

0

92

MTD 710-04968

Bolt M6×16

$6.49

$

In Stock, only 3 left!

0

93

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 10

0

95

MTD 951-11211

Blower Housing

$80.99

$

Usually ships in 3-6 days

0

96

MTD 951-14223

Recoil Starter Assembly

$81.99

$

In Stock, Qty 15

0

97

MTD 736-04455

Flat Washer
(Superseded to 736-04455B)

$6.49

$

Usually ships in 3-6 days

0

98

MTD 710-04974

Bolt M6×10

$6.49

$

In Stock, only 2 left!

0

MTD 951-05104

120V Plug Kit

Note: (not shown)

$84.99

$

Usually ships in 3-6 days

0
