484 (590-484-100) - Cub Cadet 84" Mower Deck, Rear Mount Front Roller Assembly (Optional) Parts Diagram

84" Mower Deck, Rear Mount

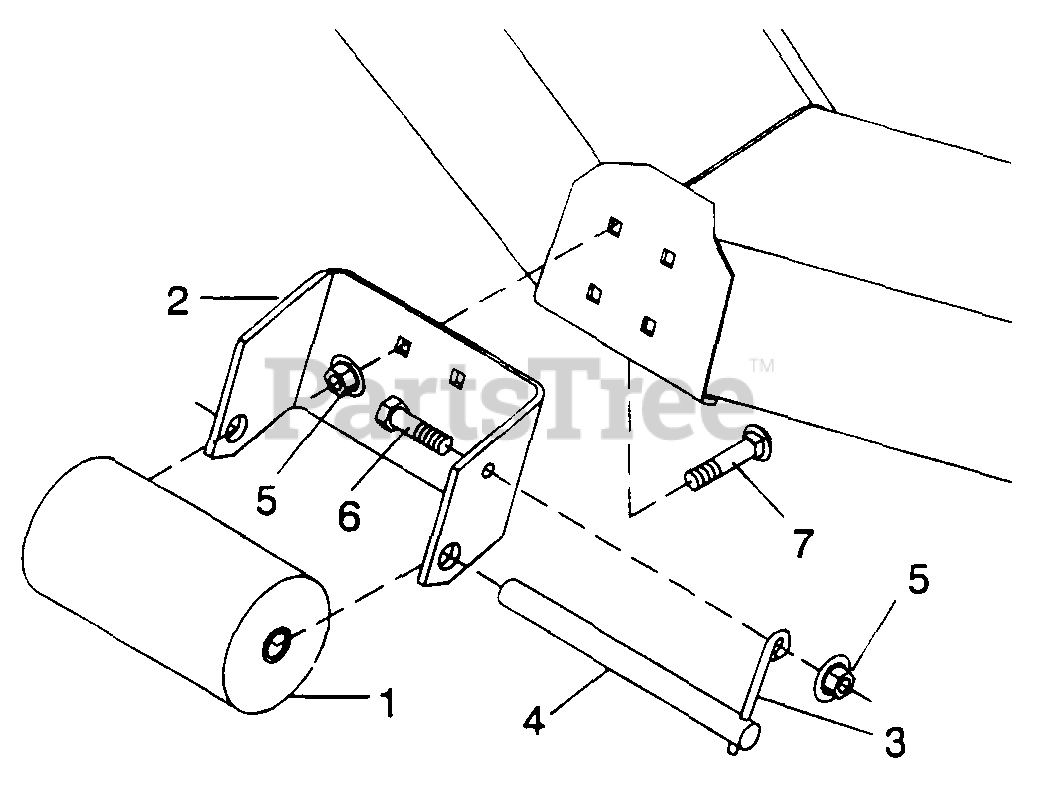

Front Roller Assembly (Optional) Parts Diagram

  • Title

Cub Cadet WM-52494

Front roller and bracket complete
(Superseded to WM-1006417KT)

$

$

Not available

1

Cub Cadet WM-63294

Front roller
(Superseded to WM-1006417KT)

$

$

Not available

2

Cub Cadet WM-53586

Roller bracket
(Superseded to WM-1006417KT)

$

$

Not available

3

Cub Cadet WM-20668

.25 x 3.1 Retainer pin

$

$

Not available

4

Cub Cadet WM-20666

Roller pin, drilled .75 x 8.6 x 9

$

$

Not available

5

Cub Cadet WM-70069

3/8 NC Whiz nut
(Superseded to 712-3005)

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet WM-839

3/8 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

7

Cub Cadet WM-6697

3/8 NC x 1 Carriage bolt GR5, plated

Note: Obtain Locally

$

$

Not available
