484 (590-484-100) - Cub Cadet 84" Mower Deck, Rear Mount Rear Chain Shielding Assembly Parts Diagram

84" Mower Deck, Rear Mount

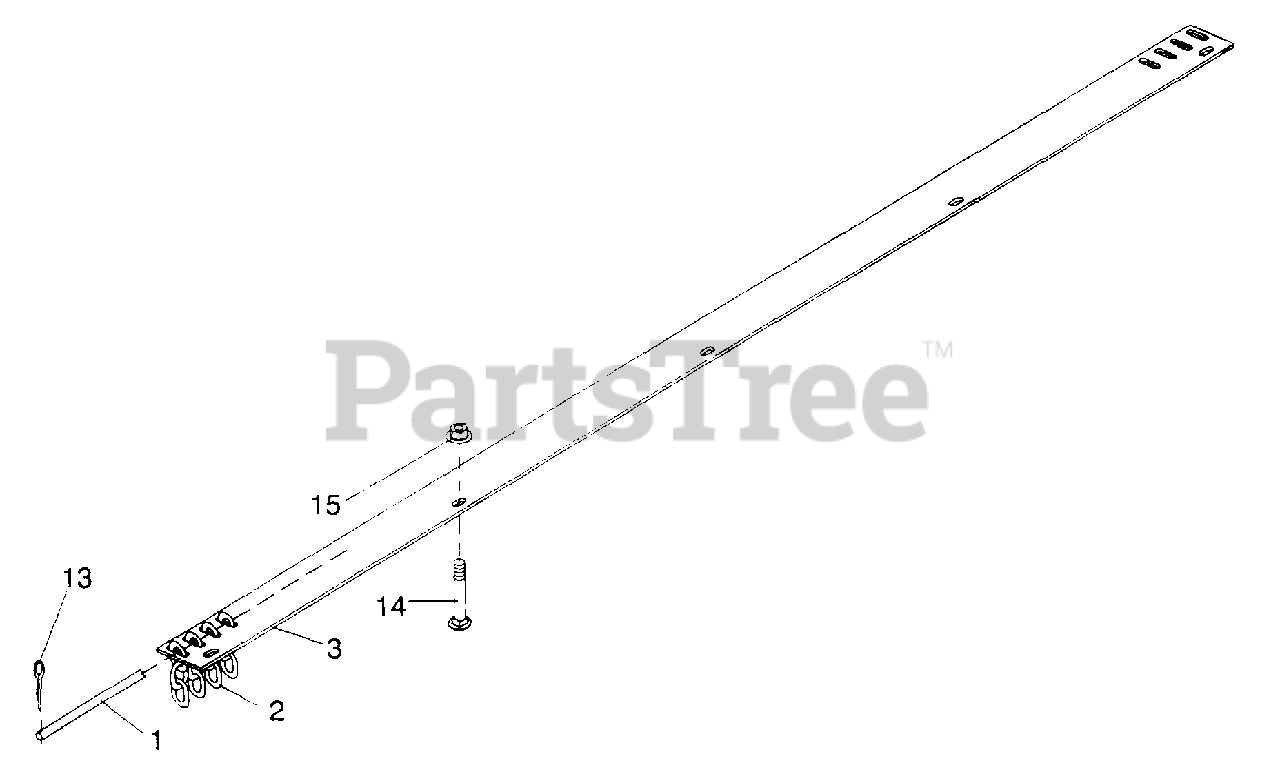

Rear Chain Shielding Assembly Parts Diagram

  • Title

Cub Cadet WM-52489

Chain shield assembly

$

$

Not available

1

Cub Cadet WM-52857

Headless pin

$

$

Not available

2

Cub Cadet WM-4763

3-Link chain, 1/4 Proof

$

$

Not available

3

Cub Cadet WM-52885

Chain shield plate

$

$

Not available

13

Cub Cadet WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

14

Cub Cadet WM-6697

3/8 NC x 1 Carriage bolt GR5, plated

Note: Obtain Locally

$

$

Not available

15

Cub Cadet WM-14350

3/8 NC Flanged hex lockout

$

$

Not available
