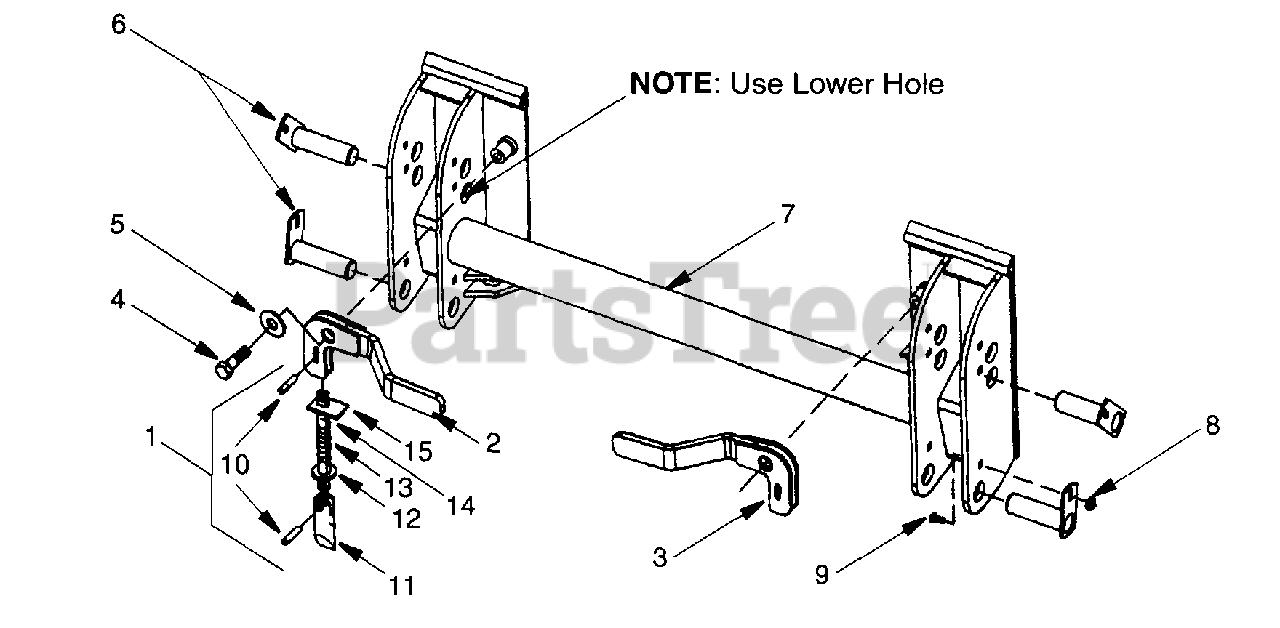

485 (590-485-100) - Cub Cadet Loader Attachment Coupler Parts Diagram

Loader

Attachment Coupler Parts Diagram

  • Title

1

Cub Cadet WM-57470

Handle Repair Kit

Note: (Includes parts 10-15)

$

$

Not available

2

Cub Cadet WM-56389

Left Handle
(Superseded to WM-46655)

$

$

Not available

3

Cub Cadet WM-56388

Right Handle
(Superseded to WM-1019704)

$

$

Not available

4

Cub Cadet WM-300300

Hex Cap Screw, GR5 1/2 x 1

$

$

Not available

5

Cub Cadet WM-854

Washer, 1/2

$

$

Not available

6

Cub Cadet WM-56383

Pin Weldment

$

$

Not available

7

Cub Cadet WM-56386

Attachment Coupler

$

$

Not available

8

Cub Cadet WM-6698

Flange Lock Nut, 3/8
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet WM-301124

Carriage Bolt, 3/8 x 1

$

$

Not available

10

~N/A

Drive-Lok Pin

$

$

Not available

11

~N/A

Pin

$

$

Not available

12

~N/A

Washer

$

$

Not available

13

~N/A

Compression Spring

$

$

Not available

14

~N/A

Link

$

$

Not available

15

~N/A

Washer

$

$

Not available
