4861 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) STARTER GROUP MODELS: 4861 Parts Diagram

Walk-Behind Mower

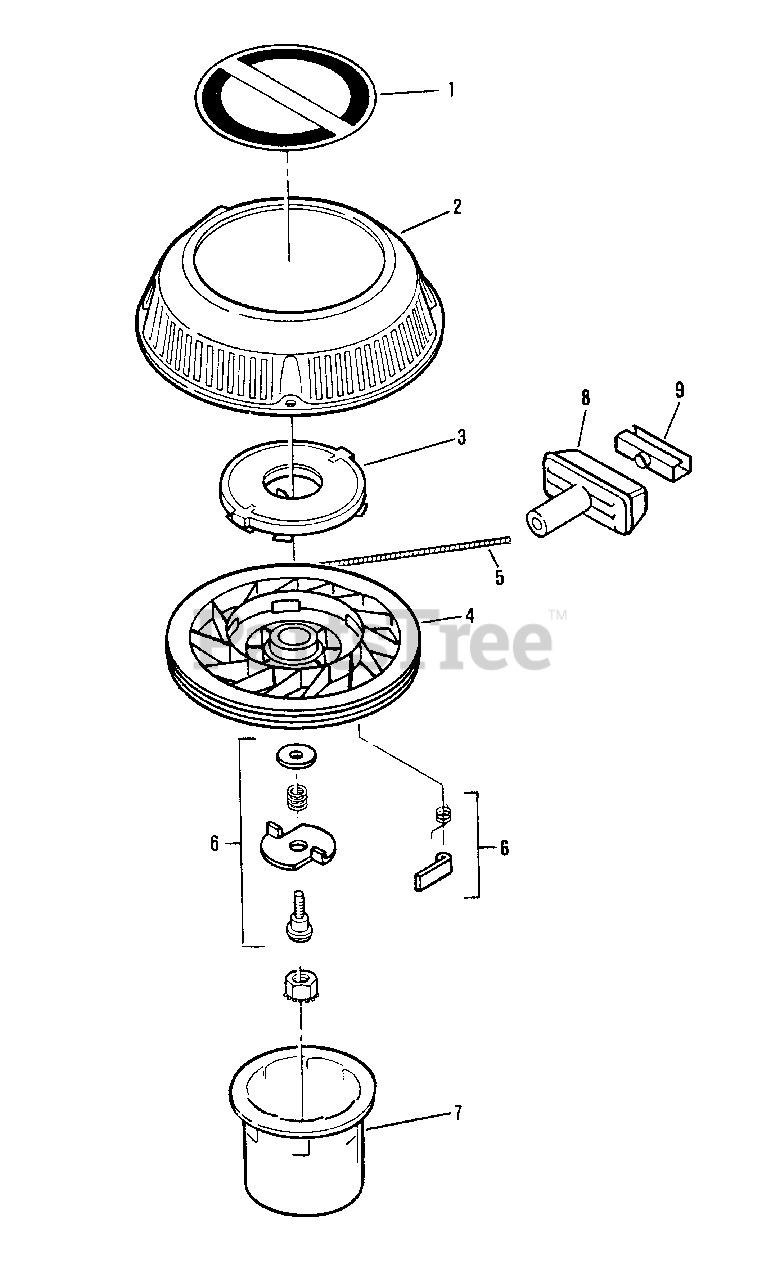

STARTER GROUP MODELS: 4861 Parts Diagram

  • Title

Lawn-Boy 683896

Starter Assembly
(Superseded to 93-4308)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

1

Lawn-Boy 612823

Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 683898

Starter Housing and Shaft Assembly
(Superseded to 684567)

Note: Important Note: Replacement parts may not always be available in matching colors.

$121.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 683897

Recoil Spring and Keeper Assembly
(Superseded to 684622)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 612950

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$24.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 612432

Rope
(Superseded to 613773)

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 683899

Dog Kit Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$79.99

$

In Stock, Qty 8

0

7

Lawn-Boy 612949

Starter Hub

Note: Important Note: Replacement parts may not always be available in matching colors.

$42.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

Note: Important Note: Replacement parts may not always be available in matching colors.

$18.99

$

In Stock, Qty 6

0

9

Lawn-Boy 612824

Clip-Starter Handle

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 13

0
