48641 - Gravely 32" Snow Blower for 2-Wheel Tractor GEAR CASE AND RAKE Parts Diagram

32" Snow Blower for 2-Wheel Tractor

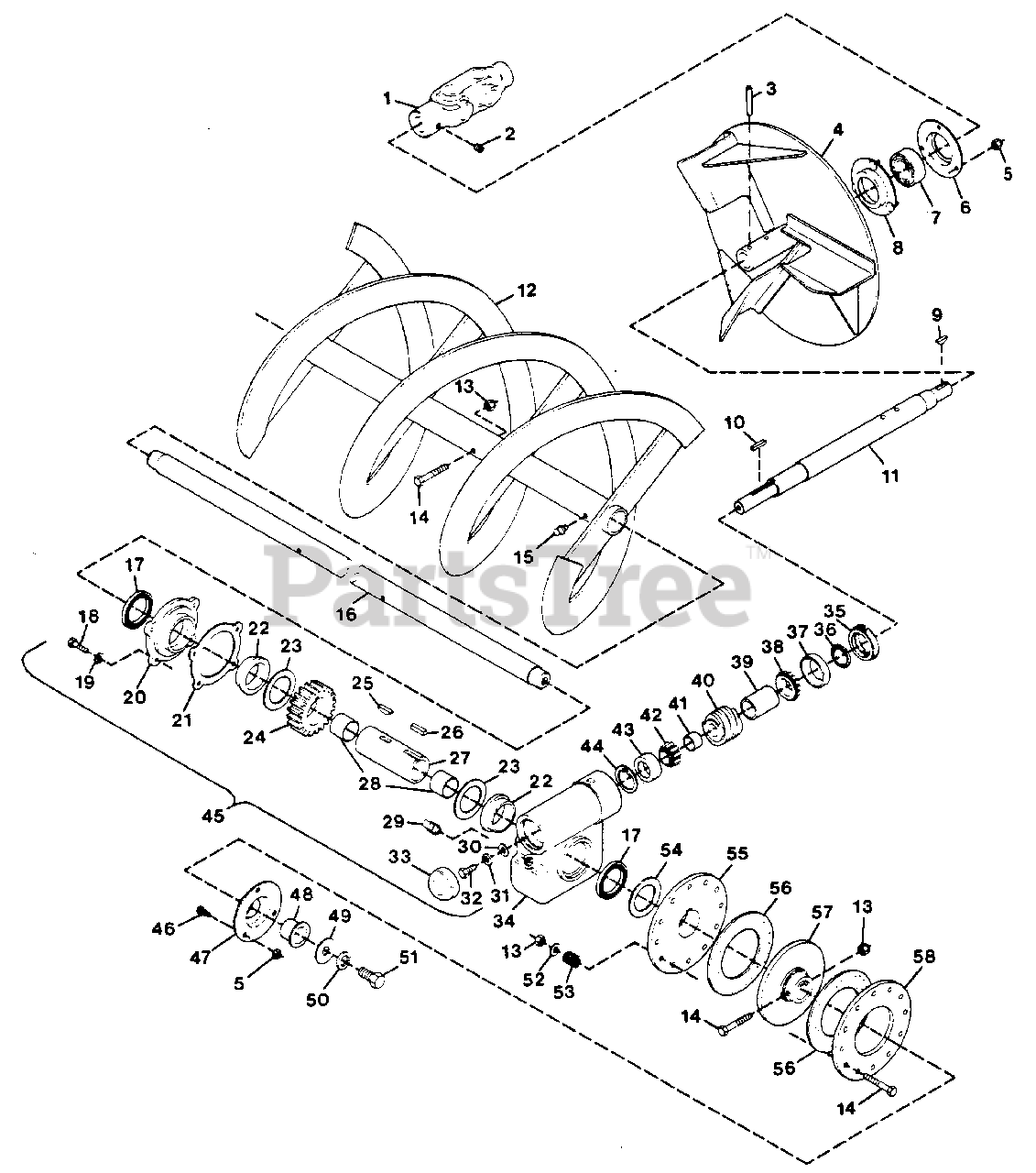

GEAR CASE AND RAKE Parts Diagram

  • Title

1

Gravely 038834

Assembly, U-Joint
(Superseded to 03329900)

$382.99

$

Usually ships in 4-12 days

0

2

Gravely 102592

Screw, Set 3/8-16x.375
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 036869

Pin, Roll 5/16x1.75
(Superseded to 05801500)

$2.49

$

In Stock, Qty 8

0

4

Gravely 049155

Fan, 16"
(Superseded to 03097943)

$391.99

$

Usually ships in 4-12 days

0

5

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 036874

Bearing, Flange
(Superseded to 03185900)

$22.99

$

In Stock, only 4 left!

0

7

Gravely 036876

Bearing, Ball
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 036875

Bearing, Flange
(Superseded to 03186000)

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 120502

Key, Woodruff 3/16x7/8 HRD #11
(Superseded to 06608200)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 036230

Key, Straight SAE 1035
(Superseded to 06601300)

$1.49

$

In Stock, Qty 5

0

11

Gravely 049156

Shaft, Worm 16"
(Superseded to 03335200)

$207.99

$

Usually ships in 4-12 days

0

12

Gravely 038832

Rake, Right 32"
(Superseded to 53302900)

$452.99

$

Usually ships in 4-12 days

0

12

Gravely 038833

Rake, Left 32"
(Superseded to 53303000)

$387.99

$

Usually ships in 4-12 days

0

13

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 180087

Bolt, Hex 5/16-18x2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

15

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

16

Gravely 038831

Shaft, 32" Rake
(Superseded to 03329100)

$232.99

$

Usually ships in 4-12 days

0

17

Gravely 036863

Seal
(Superseded to 05607000)

$9.99

$

In Stock, only 3 left!

0

18

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 121753

Washer, Lock 1/4 Ext Th TYA
(Superseded to 21051100)

$

$

Not available

20

Gravely 036861

Cover, Gearcase
(Superseded to 02401300)

$136.99

$

Usually ships in 4-12 days

0

21

Gravely 036862

Gasket
(Superseded to 00200800)

$3.99

$

In Stock, only 3 left!

0

22

Gravely 036860

Bushing, Flange 1.62x1.87x11
(Superseded to 05505900)

$14.99

$

In Stock, only 4 left!

0

23

Gravely 036859

Washer, 1.625x2.50x.012
(Superseded to 06408700)

$11.99

$

In Stock, only 4 left!

0

24

Gravely 036858

Gear, Worm
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

25

Gravely 038820

Key, Feather
(Superseded to 06604800)

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 037536

Key, Straight
(Superseded to 06604700)

$9.49

$

Usually ships in 4-12 days

0

27

Gravely 037530

Shaft, Gearcase
(Superseded to 03054700)

$113.99

$

Usually ships in 4-12 days

0

28

Gravely 037532

Bushing, Sleeve
(Superseded to 05513900)

$14.99

$

Usually ships in 4-12 days

0

29

Gravely 035945

Plug, Pipe
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

31

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

32

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

33

Gravely 036856

Cap, Dust
(Superseded to 00403700)

$18.99

$

In Stock, only 1 left!

0

34

Gravely 037524

Gearcase

$

$

Not available

35

Gravely 037529

Plug, Adjustment
(Superseded to 03188200)

$58.99

$

Usually ships in 4-12 days

0

36

Gravely 037528

Seal
(Superseded to 05604600)

$10.99

$

In Stock, only 1 left!

0

37

Gravely 037527

Cup, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

38

Gravely 037526

Cone, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

39

Gravely 036352

Spacer, Bearing
(Superseded to 03188100)

$26.99

$

In Stock, only 1 left!

0

40

Gravely 036853

Worm
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

41

Gravely 036852

Spacer, Bearing
(Superseded to 00200500)

$7.49

$

In Stock, only 2 left!

0

42

Gravely 018446

Cone, Bearing
(Superseded to 05404500)

$22.99

$

In Stock, Qty 20+

0

43

Gravely 018445

Cup, Bearing
(Superseded to 05404400)

$9.49

$

In Stock, Qty 20+

0

44

Gravely 036921

Ring, Snap Internal 1.781
(Superseded to 05707500)

$9.49

$

In Stock, only 1 left!

0

45

Gravely 037978

Assembly, Gearcase
(Superseded to 53301900)

$

$

Not available

46

Gravely 036873

Bolt, Rib Neck 1/4-20x.5
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

47

Gravely 036871

Support, Bearing
(Superseded to 05063300)

$28.99

$

In Stock, only 3 left!

0

48

Gravely 036872

Bushing, Flange 1x1.12x.625
(Superseded to 05503500)

$12.99

$

In Stock, Qty 18

0

49

Gravely 036840

Washer, Flat .515x1.441x.1
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

50

Gravely 131101

Washer, Lock 1/2 SP Heavy
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

51

Gravely 180173

Bolt, Hex 1/2-13x1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

52

Gravely 120386

Washer, Flat
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

53

Gravely 012871

Spring, Compression
(Superseded to 08354000)

$9.49

$

Usually ships in 4-12 days

0

54

Gravely 037535

Washer
(Superseded to 06421100)

$9.49

$

Usually ships in 4-12 days

0

55

Gravely 037537

Driver
(Superseded to 03055000)

$

$

Not available

56

Gravely 037538

Disc, Friction
(Superseded to 03055100)

$97.99

$

Usually ships in 4-12 days

0

57

Gravely 037539

Plate, Driver
(Superseded to 03055200)

$

$

Not available

58

Gravely 037540

Plate, Pressure
(Superseded to 03055300)

$

$

Not available
