488 P - Shindaiwa Chainsaw (SN: C54820001001 - C54820999999) Air Cleaner Parts Diagram

Chainsaw

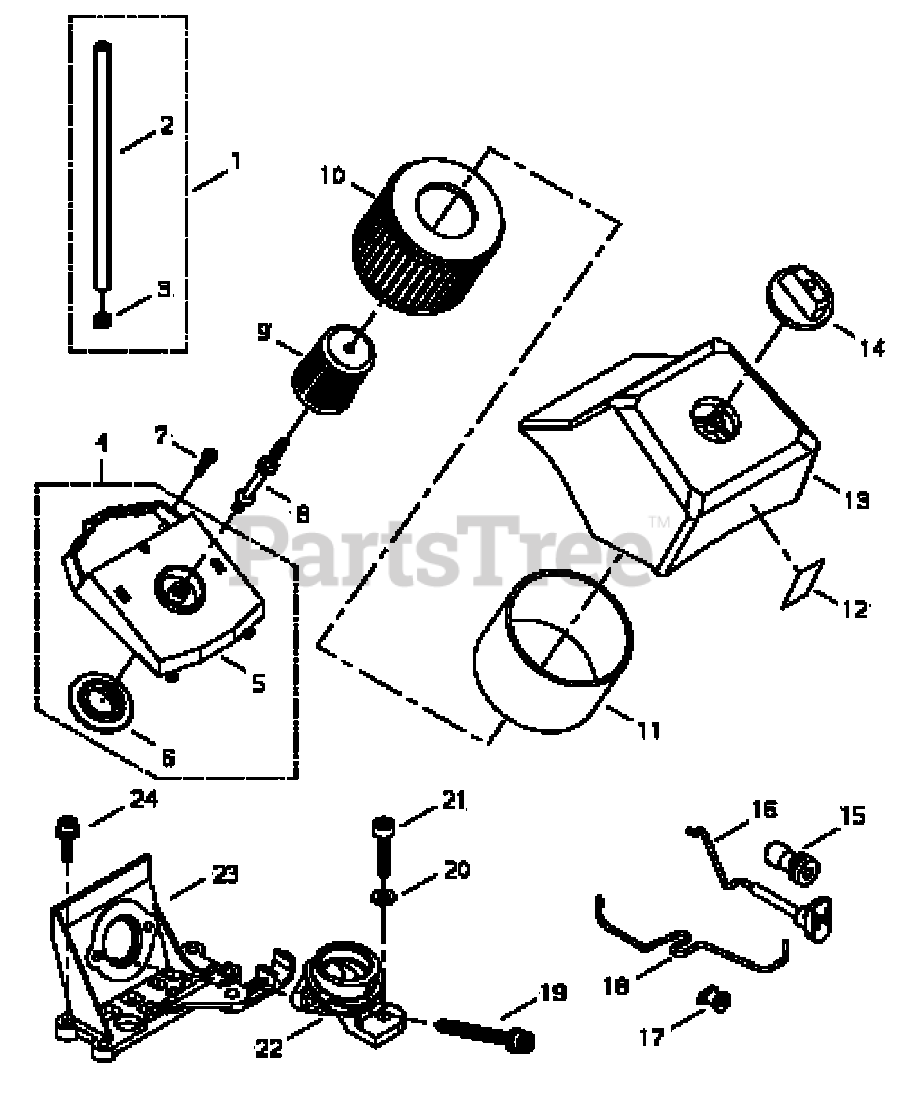

Air Cleaner Parts Diagram

  • Title

1

Echo V471002810

PULSE PIPE ASSY

Note: 22160-82200

$13.99

$

Usually ships in 2-4 days

0

2

Echo V471002820

PIPE - PULSE

Note: 22160-82210

$9.99

$

In Stock, only 2 left!

0

3

Echo V490000760

CLIP - 5.7

Note: 22150-82140

$1.49

$

In Stock, only 1 left!

0

4

Echo A232001170

CLEANER BASE COMP

Note: 22961-82620

$32.99

$

Usually ships in 2-4 days

0

5

Echo A232001180

CASE, AIR FILTER

Note: 22961-82460

$20.99

$

Usually ships in 2-4 days

0

6

Echo A202000170

SEAL

Note: 22961-82630

$6.49

$

Usually ships in 2-4 days

0

7

Echo 90010505016

SCREW - 5X16

Note: 01020-05160

$1.49

$

In Stock, only 2 left!

0

8

Echo V204000630

BOLT

Note: 22961-82450

$12.99

$

Usually ships in 2-4 days

0

9

Echo A226001170

SUB FILTER

Note: 22961-82430

$17.99

$

Usually ships in 2-4 days

0

10

Echo A226001160

FILTER

Note: 22961-82420

$44.99

$

Usually ships in 2-4 days

0

11

Echo A226001150

PRE-FILTER -- FOAM

Note: 22961-82410

$15.99

$

Usually ships in 2-4 days

0

12

Echo X505003610

LABEL - CAUTION
(Superseded to Discontinued)

Note: 72229-75180

$

$

Not available

13

Echo A232001190

CASE, AIR FILTER
(Superseded to P021038680)

Note: 72355-82501

$29.99

$

Usually ships in 2-4 days

0

14

Echo A235000320

THUMBSCREW

Note: 38010-82460

$4.99

$

Usually ships in 2-4 days

0

15

Echo V130000150

GROMMET
(Superseded to Discontinued)

Note: 22160-82321

$

$

Not available

16

Echo A240000150

ROD, CHOKE

Note: 22160-82311

$4.99

$

Usually ships in 2-4 days

0

17

Echo V133000050

GROMMET

Note: 22160-82360

$2.49

$

Usually ships in 2-4 days

0

18

Echo C454000300

ROD, THROTTLE

Note: 22160-82353

$5.49

$

Usually ships in 2-4 days

0

19

Echo V203001530

BOLT

Note: 11022-05500

$2.49

$

In Stock, only 2 left!

0

20

Echo 90060300005

WASHER - 5

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0

21

Echo V203001600

BOLT

Note: 22157-12130

$1.49

$

In Stock, Qty 19

0

22

Echo A204000160

ADAPTOR, INTAKE

Note: 22961-82480

$11.99

$

Usually ships in 2-4 days

0

23

Echo A200000860

BRACKET, AIR CLEANER

Note: 22160-82111

$15.99

$

Usually ships in 2-4 days

0

24

Echo V202000300

SCREW - 4X16
(Superseded to 9111304016)

Note: 11024-01460

$1.49

$

In Stock, Qty 6

0
