488 - Shindaiwa Chainsaw (Original Version) Front Handle / Rear Handle Parts Diagram

Chainsaw

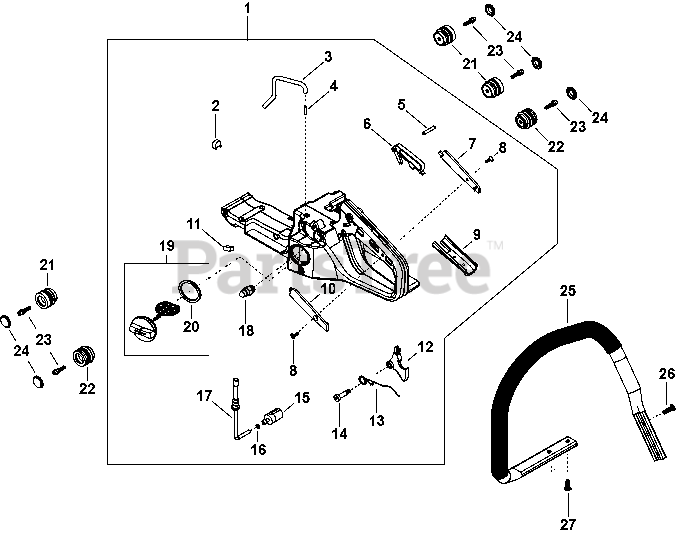

Front Handle / Rear Handle Parts Diagram

  • Title

1

Echo C041000350

REAR HANDLE ASSY.
(Superseded to P021040760)

Note: 22160-33103

$177.99

$

Usually ships in 2-4 days

0

2

Echo V420002830

STOPPER R
(Superseded to V420002831)

Note: 22160-33590

$5.49

$

In Stock, Qty 8

0

3

Echo V470001480

BREATHER TUBE

Note: 22160-33910

$2.99

$

In Stock, only 2 left!

0

4

Echo E615000000

ELEMENT

Note: 22157-33950

$2.99

$

In Stock, only 3 left!

0

5

Echo 9306040250

PIN, SPRING Ø4×25mm

Note: 12420-40255

$1.49

$

In Stock, only 3 left!

0

6

Echo C460000320

LEVER, LOCK

Note: 22160-33360

$2.99

$

Usually ships in 2-4 days

0

7

Echo C403000550

SIDE PLATE R

Note: 22160-33320

$1.99

$

Usually ships in 2-4 days

0

8

Echo V252000480

SCREW
(Superseded to Discontinued)

Note: 11202-40120

$

$

Not available

9

Echo C403000540

GRIP

Note: 22160-33310

$6.49

$

In Stock, Qty 5

0

10

Echo C403000560

SIDE PLATE L

Note: 22160-33330

$1.99

$

Usually ships in 2-4 days

0

11

Echo V144000620

GROMMET

Note: V144000620

$2.99

$

In Stock, only 2 left!

0

12

Echo C450000650

LEVER, THROTTLE

Note: 22160-33351

$2.99

$

In Stock, only 1 left!

0

13

Echo V452000890

SPRING, RETURN

Note: 22160-33370

$1.99

$

Usually ships in 2-4 days

0

14

Echo V203001520

BOLT

Note: 22160-33380

$2.49

$

In Stock, only 2 left!

0

15

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22115-85401

$9.99

$

In Stock, Qty 20+

0

16

Echo V490000500

CLIP Ø6

Note: 20020-85540

$1.49

$

In Stock, Qty 20+

0

17

Echo V470001490

FUEL PIPE

Note: 22160-34110

$14.99

$

In Stock, Qty 12

0

18

Echo C461000100

STOPPER ASSY

Note: 22160-33401

$4.49

$

In Stock, only 2 left!

0

19

Echo A033000230

CAP ASSY, FUEL
(Superseded to A033000220)

Note: 22160-33801

$10.99

$

In Stock, only 2 left!

0

20

Echo V107000080

GASKET, CAP

Note: 22160-33821

$2.49

$

In Stock, only 2 left!

0

21

Echo V401000350

CUSHION

Note: 22160-33710

$7.99

$

In Stock, Qty 13

0

22

Echo V401000360

CUSHION

Note: 22160-97810

$11.99

$

In Stock, only 2 left!

0

23

Echo V203001480

BOLT 5

Note: 22160-33770

$3.49

$

In Stock, only 3 left!

0

24

Echo V421000050

PLUG

Note: 22160-33720

$1.49

$

In Stock, only 3 left!

0

25

Echo C040000580

FRONT HANDLE

Note: 22160-32110

$82.99

$

Usually ships in 2-4 days

0

26

Echo V253000550

SCREW 5×20

Note: 22160-32220

$1.49

$

In Stock, Qty 5

0

27

Echo V253000710

SCREW M5

Note: 22160-32210

$1.49

$

In Stock, Qty 7

0
