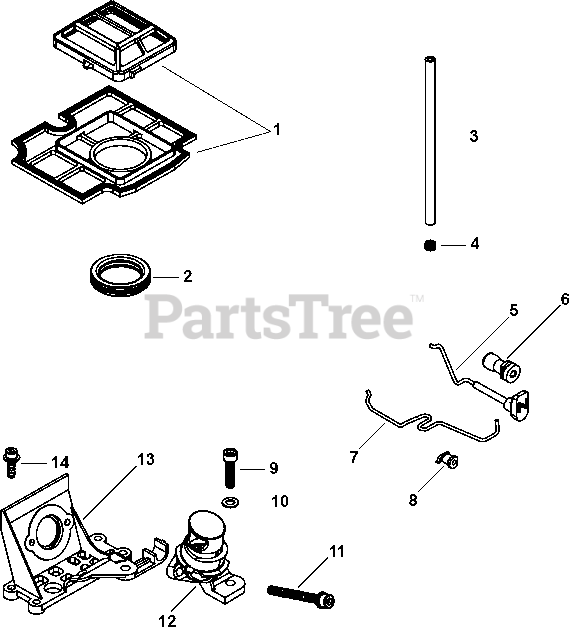

488 - Shindaiwa Chainsaw (Original Version) Intake Parts Diagram

Chainsaw

Intake Parts Diagram

  • Title

1

Echo A226001180

FILTER, AIR

Note: 22157-82400

$27.99

$

In Stock, only 2 left!

0

2

Echo V581000290

GROMMET

Note: 22157-82430

$3.99

$

Usually ships in 2-4 days

0

3

Echo V471002820

PIPE, PULSE

Note: 22160-82210

$9.99

$

In Stock, only 2 left!

0

4

Echo V490000760

CLIP

Note: 22150-82140

$1.49

$

In Stock, only 1 left!

0

5

Echo A240000150

ROD, CHOKE

Note: 22160-82311

$4.99

$

Usually ships in 2-4 days

0

6

Echo V130000150

GROMMET, CHOKE
(Superseded to Discontinued)

Note: 22160-82321

$

$

Not available

7

Echo C454000300

ROD, THROTTLE

Note: 22160-82353

$5.49

$

Usually ships in 2-4 days

0

8

Echo V133000050

GROMMET

Note: 22160-82360

$2.49

$

Usually ships in 2-4 days

0

9

Echo V203001600

BOLT M5×18

Note: 22157-12130

$1.49

$

In Stock, Qty 17

0

10

Echo 900603-00005

WASHER 5.5×12×0.8

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0

11

Echo V203001530

BOLT M5×50

Note: 11022-05500

$2.49

$

In Stock, only 2 left!

0

12

Echo A204000140

ELBOW

Note: 22157-82450

$9.99

$

Usually ships in 2-4 days

0

13

Echo A200000860

MOUNT

Note: 22160-82110

$15.99

$

Usually ships in 2-4 days

0

14

Echo V202000300

BOLT M4×16
(Superseded to 9111304016)

Note: 11024-04160

$1.49

$

In Stock, Qty 6

0
