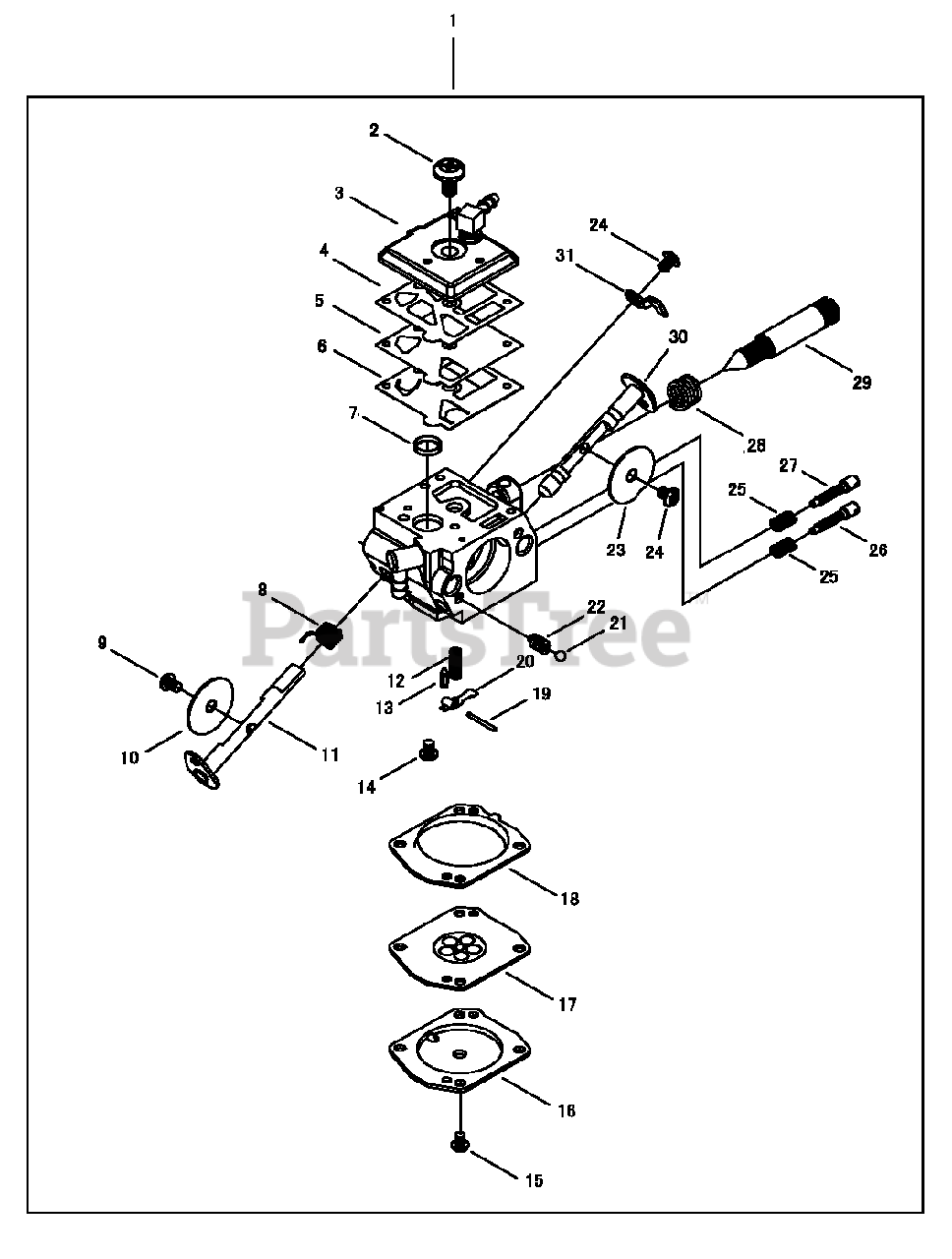

488 - Shindaiwa Chainsaw (SN: C57220001001 - C57220999999) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

1

Echo A021002970

CARBURETOR HDA-79C
(Superseded to A021002971)

Note: 22160-81002

$91.99

$

In Stock, only 1 left!

0

2

Echo 12311003930

SCREW, PUMP COVER

Note: 22100-81130

$0.99

$

In Stock, only 2 left!

0

3

Echo P003002850

PUMP COVER ASSY
(Superseded to Discontinued)

Note: 22150-81120

$

$

Not available

4

Echo 12312512330

GASKET, PUMP

Note: 22150-81140

$2.99

$

Usually ships in 2-4 days

0

5

Echo P003003150

DIAPHRAGM, PUMP

Note: 22169-81180

$16.99

$

Usually ships in 2-4 days

0

6

Echo P003003130

DIAPHRAGM, PUMP

Note: 22169-81150

$15.99

$

Usually ships in 2-4 days

0

7

Echo 12312610631

STRAINER

Note: 52130-01280

$1.49

$

In Stock, Qty 20+

0

8

Echo P003000560

SPRING, THROTTLE RETURN

Note: 22150-81430

$0.99

$

Usually ships in 2-4 days

0

9

Echo 12315410630

SCREW
(Superseded to Discontinued)

Note: 22150-81420

$

$

Not available

10

Echo 12311603930

VALVE, THROTTLE

Note: 22100-81340

$1.99

$

In Stock, only 4 left!

0

11

Echo P003003110

SHAFT ASSY

Note: 22160-81371

$28.99

$

Usually ships in 2-4 days

0

12

Echo 12312239830

SPRING, METERING LEVER

Note: 22160-81270

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12313719830

VALVE, INLET NEEDLE

Note: 20036-81440

$18.99

$

Usually ships in 2-4 days

0

14

Echo 12313903930

SCREW, METERING LEVER PIN

Note: 22100-81240

$1.49

$

In Stock, only 1 left!

0

15

Echo 12313002960

SCREW

Note: 22100-81351

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12314217330

COVER, METERING

Note: 22150-81280

$3.99

$

Usually ships in 2-4 days

0

17

Echo 12314116130

DIAPHRAGM, METERING

Note: 22150-81260

$

$

Not available

18

Echo 12314016130

GASKET, METERING

Note: 22150-81290

$2.49

$

In Stock, only 2 left!

0

19

Echo 12313803930

PIN, METERING LEVER

Note: 22100-81250

$5.99

$

In Stock, only 4 left!

0

20

Echo 12312316130

LEVER, METERING
(Superseded to Discontinued)

Note: 22160-81230

$

$

Not available

21

Echo 12313510630

SPRING

Note: 22150-81730

$1.49

$

Usually ships in 2-4 days

0

22

Echo 12313610630

BALL, CHOKE

Note: 22150-81720

$0.99

$

Usually ships in 2-4 days

0

23

Echo 12313232430

VALVE, CHOKE

Note: 22160-81710

$1.99

$

Usually ships in 2-4 days

0

24

Echo 12311403930

SCREW

Note: 22100-81360

$1.49

$

In Stock, Qty 17

0

25

Echo 12312116130

SPRING

Note: 22160-81160

$1.49

$

Usually ships in 2-4 days

0

26

Echo P003003090

NEEDLE - HIGH SPEED

Note: 22160-81330

$9.99

$

Usually ships in 2-4 days

0

27

Echo P003003080

NEEDLE - LOW SPEED

Note: 22160-81170

$13.99

$

Usually ships in 2-4 days

0

28

Echo 12313304260

SPRING, IDLE ADJUST

Note: 22156-81420

$6.49

$

In Stock, Qty 19

0

29

Echo P003003030

SCREW, IDLE ADJUST

Note: 22156-81410

$11.99

$

Usually ships in 2-4 days

0

30

Echo P003003120

SHAFT ASSY

Note: 22160-81740

$22.99

$

Usually ships in 2-4 days

0

31

Echo 12315630830

STOP, THROTTLE

Note: 22160-81390

$1.99

$

Usually ships in 2-4 days

0
