488 - Shindaiwa Chainsaw (SN: C57220001001 - C57220999999) Clutch Parts Diagram

Chainsaw

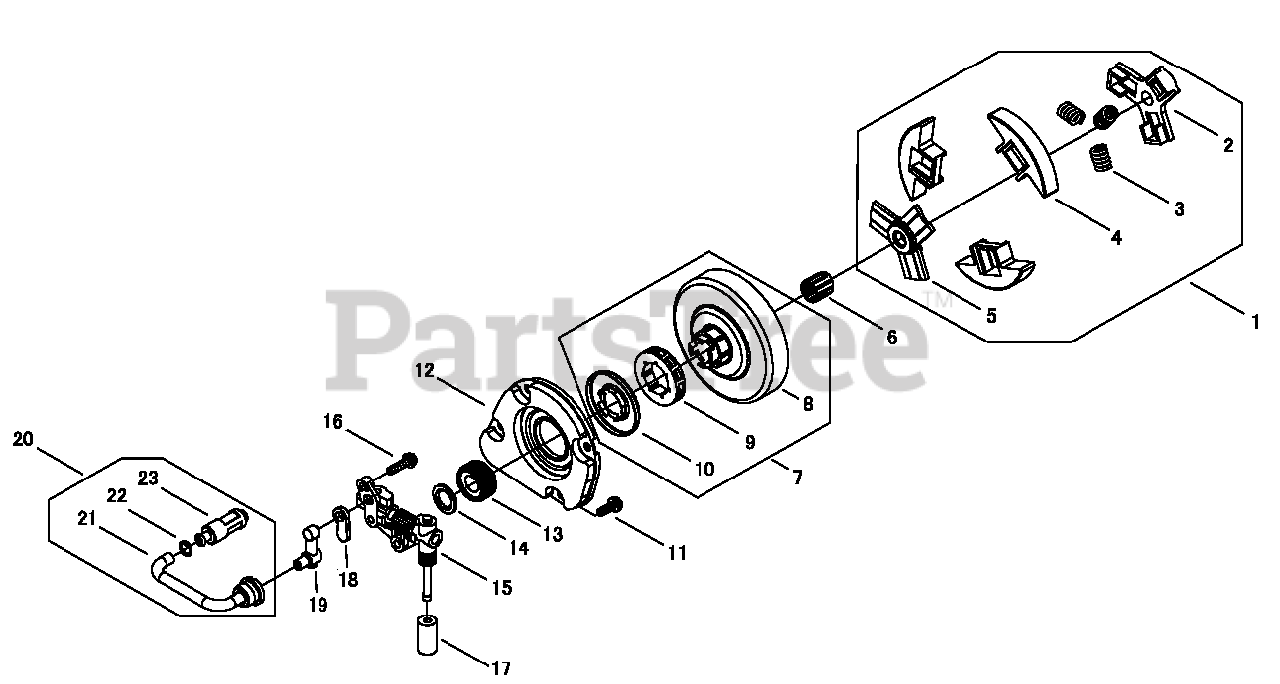

Clutch Parts Diagram

  • Title

1

Echo A056000620

CLUTCH ASSY

Note: 22160-51200

$30.99

$

In Stock, only 3 left!

0

2

Echo A552000260

HUB, CLUTCH - OUTER

Note: 22160-51240

$7.49

$

Usually ships in 2-4 days

0

3

Echo V451000940

SPRING, CLUTCH

Note: 22160-51230

$1.99

$

Usually ships in 2-4 days

0

4

Echo A555000220

SHOE, CLUTCH

Note: 22160-51220

$7.49

$

Usually ships in 2-4 days

0

5

Echo A552000250

HUB, CLUTCH - INNER

Note: 22160-51210

$3.99

$

In Stock, only 1 left!

0

6

Echo V555000150

BEARING, NEEDLE
(Superseded to V555000170)

Note: 22100-51310

$15.99

$

In Stock, Qty 10

0

7

Echo P021037700

DRUM, CLUTCH

Note: 22160-51501

$76.99

$

In Stock, only 2 left!

0

8

Echo A556001140

DRUM, CLUTCH

Note: 22160-51511

$51.99

$

Usually ships in 2-4 days

0

9

Echo 17511412530

SPROCKET, RIM

Note: 22131-98120

$22.99

$

In Stock, Qty 6

0

10

Echo V312000030

COVER

Note: 22160-51530

$3.99

$

In Stock, only 2 left!

0

11

Echo V252000460

SCREW

Note: 22160-56150

$1.49

$

In Stock, only 3 left!

0

12

Echo C236000090

PUMP COVER SUB ASSY

Note: 72317-56100

$30.99

$

In Stock, only 2 left!

0

13

Echo V652000170

GEAR

Note: 22154-55110

$1.99

$

In Stock, Qty 6

0

14

Echo V307000330

PLATE, THRUST

Note: 22154-55120

$1.99

$

In Stock, only 3 left!

0

15

Echo C022000130

OIL PUMP ASSY

Note: 22160-55200

$79.99

$

Usually ships in 2-4 days

0

16

Echo 9157304016

SCREW - 4X16

Note: 11205-04160

$1.49

$

Usually ships in 2-4 days

0

17

Echo V418000010

FILTER

Note: 22155-55430

$1.99

$

In Stock, only 4 left!

0

18

Echo V112000000

GASKET, PUMP

Note: 22150-55411

$2.99

$

In Stock, Qty 7

0

19

Echo V186000350

CONNECTOR, PIPE

Note: 22160-55420

$2.99

$

In Stock, Qty 10

0

20

Echo C021000040

OIL PIPE ASSY

Note: 22160-55301

$15.99

$

Usually ships in 2-4 days

0

21

Echo V470001550

PIPE - OIL

Note: 22160-55310

$7.99

$

In Stock, only 1 left!

0

22

Echo V490000740

CLIP

Note: 22100-57370

$1.49

$

Usually ships in 2-4 days

0

23

Echo C209000080

FILTER, OIL

Note: 22169-57360

$11.99

$

Usually ships in 2-4 days

0
