488 - Shindaiwa Chainsaw (SN: C57220001001 - C57220999999) Crankcase Parts Diagram

Chainsaw

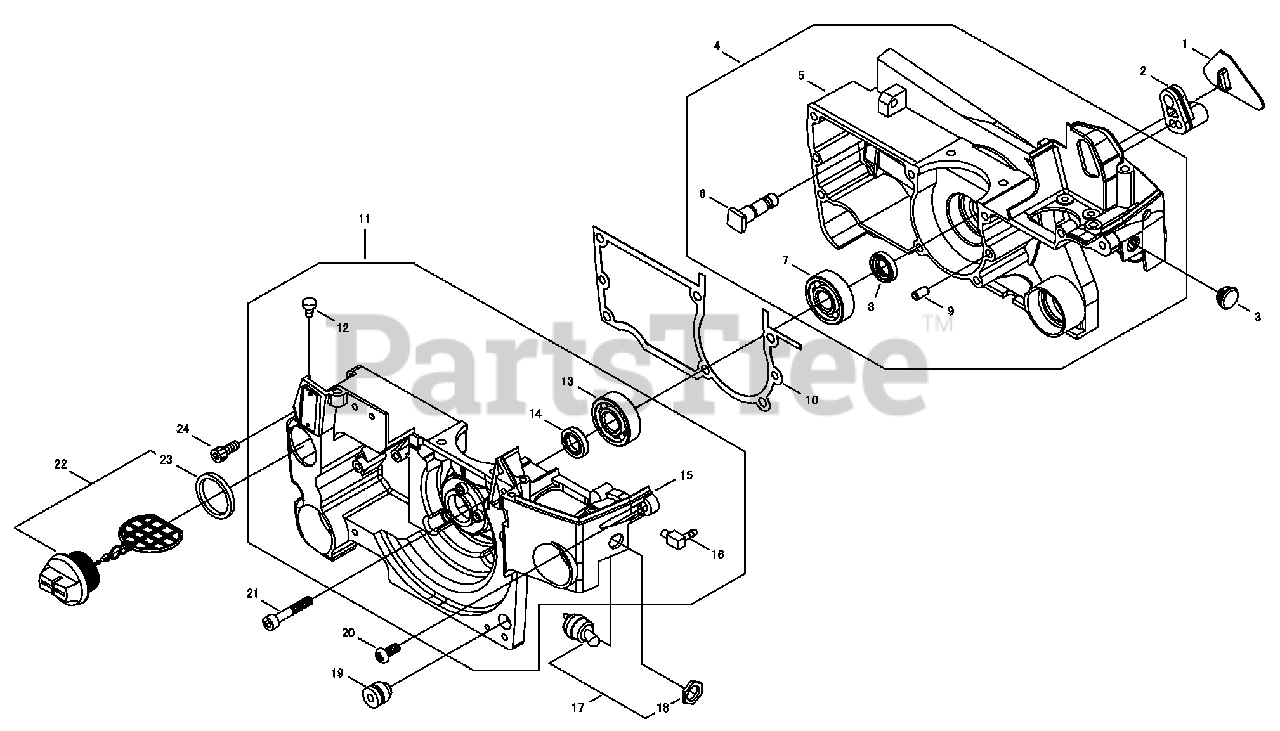

Crankcase Parts Diagram

  • Title

1

Echo V420002820

STOPPER

Note: 22160-22250

$5.99

$

Usually ships in 2-4 days

0

2

Echo V131000120

GROMMET

Note: 22160-82150

$6.49

$

Usually ships in 2-4 days

0

3

Echo V141000110

PLUG

Note: 22160-22220

$1.49

$

Usually ships in 2-4 days

0

4

Echo P021032220

CRANKCASE ASSY
(Superseded to P021040960)

Note: 72312-21502

$

$

Not available

5

Echo A120000890

CRANKCASE

Note: 22160-21512

$

$

Currently unavailable

6

Echo V225000160

BOLT

Note: 72312-21520

$4.99

$

In Stock, only 1 left!

0

7

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

Note: 02030-06201

$9.99

$

In Stock, only 3 left!

0

8

Echo V505000140

SEAL, OIL 12

Note: 22150-21250

$3.49

$

In Stock, only 4 left!

0

9

Echo 10021502830

PIN, LOCATING 5×10

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

10

Echo V102000170

GASKET

Note: 22160-21720

$2.49

$

Usually ships in 2-4 days

0

11

Echo P021037230

CRANKCASE ASSY

Note: 22160-21202

$

$

Currently unavailable

12

Echo A356000130

VENT ASSY

Note: 22115-57120

$5.49

$

Usually ships in 2-4 days

0

13

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

Note: 02030-06201

$9.99

$

In Stock, only 3 left!

0

14

Echo V505000140

SEAL, OIL 12

Note: 22150-21250

$3.49

$

In Stock, only 4 left!

0

15

Echo A120000690

CRANKCASE
(Superseded to P021039672)

Note: 22160-21212

$

$

Not available

16

Echo V185000000

CONNECTOR, PIPE

Note: 22150-21220

$7.49

$

Usually ships in 2-4 days

0

17

Echo A440001640

SWITCH ASSY

Note: 22160-22100

$16.99

$

Usually ships in 2-4 days

0

18

Echo V266000090

NUT 10

Note: 22154-22130

$1.49

$

In Stock, only 1 left!

0

19

Echo V420002840

SUPPORT

Note: 22160-33730

$2.49

$

Usually ships in 2-4 days

0

20

Echo V253000650

SCREW

Note: 22157-21760

$0.99

$

Usually ships in 2-4 days

0

21

Echo V203001510

BOLT M5×30
(Superseded to Discontinued)

Note: 22157-21750

$

$

Not available

22

Echo C020000020

CAP ASSY, OIL

Note: 22160-21302

$11.99

$

In Stock, Qty 11

0

23

Echo V106000080

GASKET, CAP

Note: 22160-21351

$1.99

$

In Stock, only 1 left!

0

24

Echo V203001600

BOLT M5×18

Note: 22157-12130

$1.49

$

In Stock, Qty 17

0
