48947 (22-H) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

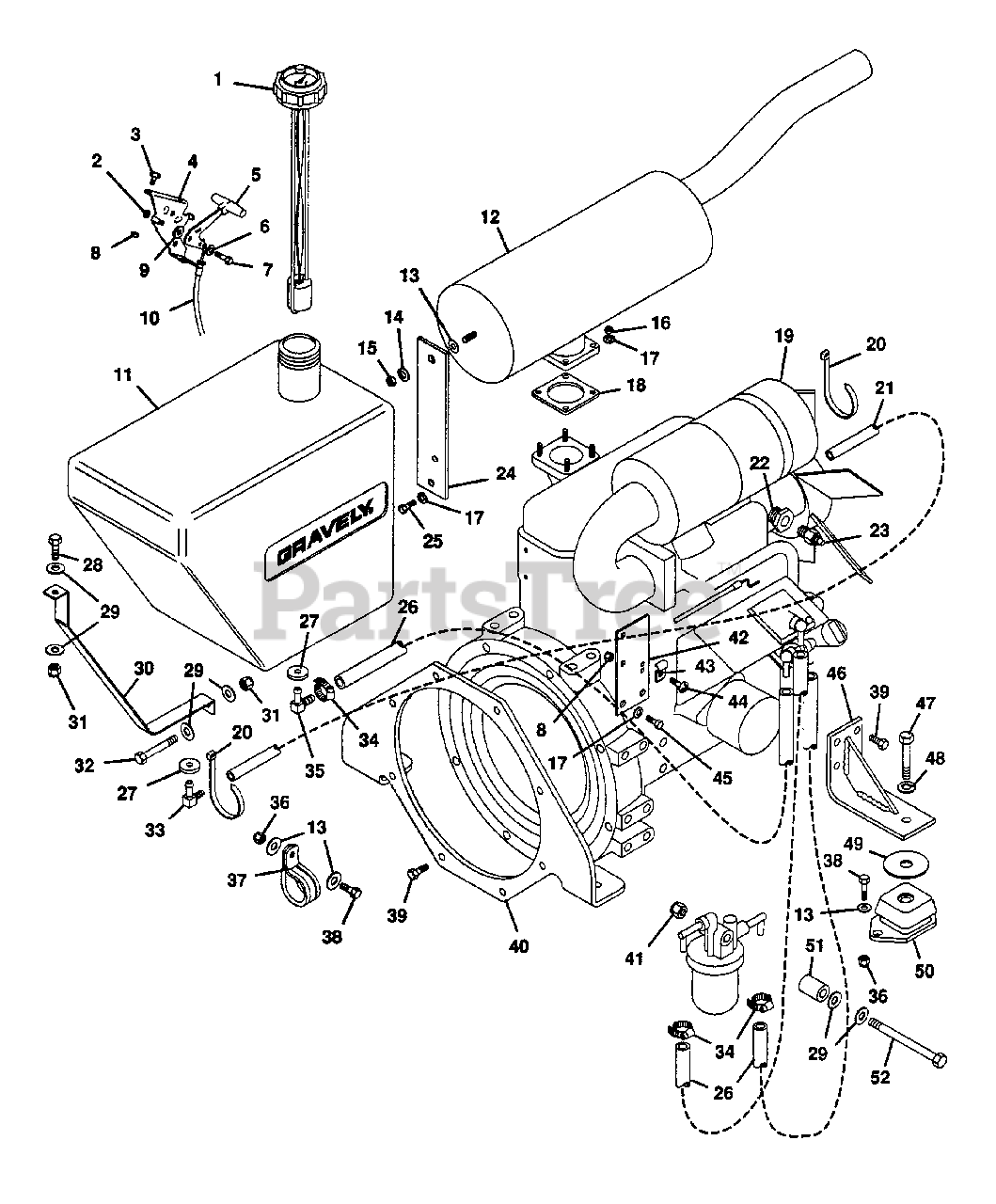

ENGINE, FUEL AND EXHAUST Parts Diagram

  • Title

1

Gravely 050952

Gauge, Fuel
(Superseded to 09001600)

$

$

Not available

2

Gravely 416430

Nut, Lock 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

3

Gravely 159920

Screw, Machine 10-24x.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

4

Gravely 011770

Bracket, Mounting L.H.
(Superseded to 03493300)

$

$

Not available

5

Gravely 011773

Assembly, Knob and Lever
(Superseded to 06917100)

$

$

Not available

6

Gravely 011774

Washer, Spring
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 181566

Bolt, Hex 1/4-28x.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

9

Gravely 011772

Washer, Friction
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 050953

Assembly, Conduit
(Superseded to 06929600)

$

$

Not available

11

Gravely 050663

Tank, Fuel
(Superseded to 09033100)

$

$

Not available

12

Gravely 050690

Muffler, Yanmar
(Superseded to 08999400)

$

$

Not available

13

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

15

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

16

Gravely 046363

Nut, Hex M8 x 1.25
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 047853

Gasket, Exhaust
(Superseded to 20875800)

$

$

Not available

19

Gravely 050684

Engine, Yanmar

$

$

Not available

20

Gravely 044321

Tie Wrap, Black
(Superseded to 02589600)

$

$

Not available

21

Gravely 051220

Hose, Fuel .125 ID
(Superseded to 00918400)

$

$

Not available

22

Gravely 052611

Adapter, Temperature Sender
(Superseded to 09010300)

$

$

Not available

23

Gravely 052610

Sender, Temperature
(Superseded to 09010200)

$34.99

$

In Stock, only 1 left!

0

24

Gravely 050685

Brace, Muffler
(Superseded to 08999100)

$

$

Not available

25

Gravely 046360

Bolt, Hex M8 x 1.25 16mm
(Superseded to 05956300)

$

$

Not available

26

Gravely 021134

Line, Fuel .5 OD x .25 ID
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 047613

Bush., Flg. .375x1.06x.625 Rb.
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 180087

Bolt, Hex 5/16-18x2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

29

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

30

Gravely 050664

Strap, Gas Tank
(Superseded to 08998500)

$

$

Not available

31

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

32

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

33

Gravely 051406

Fitting, Tank
(Superseded to 07023200)

$

$

Not available

34

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

35

Gravely 050722

Fitting, Tank
(Superseded to 07023300)

$

$

Not available

36

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

37

Gravely 050395

Clamp, Steel 1.00
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

38

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 046359

Bolt, Hex M10 x 1.5 20mm
(Superseded to 05967600)

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 051399

Mount, Engine

$

$

Not available

41

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 052655

Bracket, Control
(Superseded to 09011000)

$

$

Not available

43

Gravely 045242

Clip
(Superseded to 06928000)

$3.49

$

Usually ships in 4-12 days

0

44

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 16

0

45

Gravely 046361

Bolt, Hex M8x1.25 20mm
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

46

Gravely 050681

Weldment, Engine Mount
(Superseded to 09015100)

$

$

Not available

47

Gravely 051407

Bolt, Hex M12x1.50 35mm
(Superseded to 05944000)

$

$

Not available

48

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

49

Gravely 044476

Washer, Snubbing
(Superseded to 06428100)

$

$

Not available

50

Gravely 051227

Mount, Engine
(Superseded to 07536400)

$

$

Not available

51

Gravely 038696

Stop, Chute
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

52

Gravely 187147

Bolt, Hex 5/16-18x3.50
(Superseded to 05948000)

$2.49

$

Usually ships in 4-12 days

0

NS

Gravely 050925

Wrench, Fuel Filter
(Superseded to 09026100)

$

$

Not available
