48G24G60X8A (96042005807) - Murray 48" Lawn Tractor, 24hp (2010) 48" Mower Deck - Housing, Arbors & Blades Group (48G24G60X8A) Parts Diagram

48" Lawn Tractor, 24hp

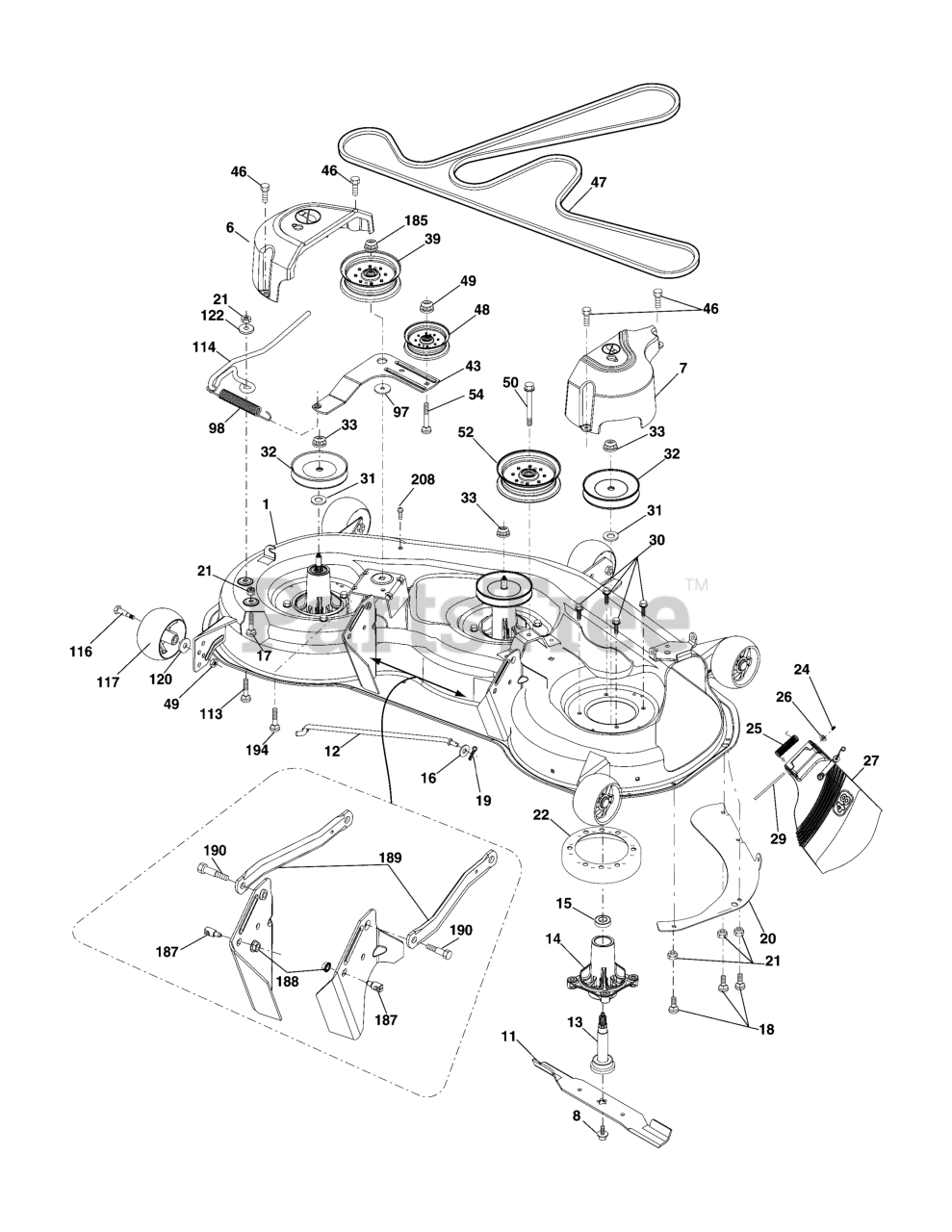

48" Mower Deck - Housing, Arbors & Blades Group (48G24G60X8A) Parts Diagram

  • Title

1

Murray 197216

Deck Weldment Mower

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$

$

Not available

6

Murray 708295

Cover Mandrel LH

$36.99

$

Usually ships in 2-12 days

0

7

Murray 708332

Cover Mandrel RH

$28.99

$

Usually ships in 2-12 days

0

8

Murray 709258

Bolt 7/16 Asm.
(Superseded to 705059)

$19.99

$

In Stock, only 2 left!

0

11

Murray 180054

Blade High Lift

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$15.99

$

In Stock, Qty 20+

0

12

Murray 708349

Rod Anti-Sway

$32.99

$

Usually ships in 2-12 days

0

13

Murray 187291

Shaft Asm. w/Lower Bearing

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$

$

Not available

14

Murray 705048

Housing, Mandrel
(Superseded to 705057)

$106.99

$

Usually ships in 2-12 days

0

15

Murray 704992

Bearing, Ball, Mandrel

$23.99

$

In Stock, only 1 left!

0

16

Murray 709227

Washer 13/32 x 13/16 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

17

Murray 708483

Bolt 5/16-18 x 5/8

$7.49

$

Usually ships in 2-12 days

0

18

Murray 709422

Bolt RdHd 5/16-18 unc x 5/8
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

19

Murray 709276

Pin Cotter 5/16 Bow Tie Lock

$6.49

$

Usually ships in 2-12 days

0

20

Murray 708186

Baffle Vortex

$30.99

$

Usually ships in 2-12 days

0

21

Murray 709430

Nut, Crownlock 5/16-18 unc
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

22

Murray 708187

Stripper Mandrel Deck

$14.99

$

Usually ships in 2-12 days

0

24

Murray 709007

Cap Sleeve

$3.99

$

Usually ships in 2-12 days

0

25

Murray 708194

Spring, Torsion

$7.49

$

Usually ships in 2-12 days

0

26

Murray 709016

Nut, Push
(Superseded to 704991)

$7.99

$

In Stock, only 2 left!

0

27

Murray 708585

Deflector Shield

$92.99

$

Usually ships in 2-12 days

0

29

Murray 709051

Rod, Hinge
(Superseded to 705009)

$7.99

$

In Stock, only 1 left!

0

30

Murray 709158

Screw, Thdroll Washer Head
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

31

Murray 709215

Spacer, Mandrel
(Superseded to 705050)

$7.99

$

In Stock, only 3 left!

0

32

Murray 709096

Pulley, Mandrel

$15.99

$

Usually ships in 2-12 days

0

33

Murray 709296

Nut, Flg. Top Lock
(Superseded to 705134)

$11.99

$

In Stock, only 1 left!

0

39

Murray 708310

Pulley, Idler
(Superseded to 707999)

$76.99

$

Usually ships in 2-12 days

0

43

Murray 708271

Arm, Idler

$31.99

$

Usually ships in 2-12 days

0

46

Murray 709067

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 705013)

$8.99

$

In Stock, only 1 left!

0

47

Murray 197242

Belt Drive Deck

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$

$

Not available

48

Murray 705061

Pulley Idler Primary
(Superseded to 708000)

$60.99

$

Usually ships in 2-12 days

0

49

Murray 709088

Nut, Lock Flg. 3/8-16 unc

$8.99

$

In Stock, only 3 left!

0

50

Murray 708476

Screw 3/8-16 x 2-1/4 unc

$7.49

$

Usually ships in 2-12 days

0

52

Murray 705114

Pulley Idler
(Superseded to 709729)

$70.99

$

In Stock, only 4 left!

0

54

Murray 709417

Bolt Carr. 3/8-16 x 1-1/2 Gr. 5

$4.99

$

Usually ships in 2-12 days

0

97

Murray 709186

Washer Hardened

$4.49

$

Usually ships in 2-12 days

0

98

Murray 196105

Spring Drive

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$7.49

$

In Stock, Qty 20+

0

113

Murray 708484

Bolt Rdhd Sqnk 5/16-18 x 3/4

$6.49

$

Usually ships in 2-12 days

0

114

Murray 708311

Rod Tension Relief

$22.99

$

Usually ships in 2-12 days

0

116

Murray 708232

Bolt, Shoulder

$7.99

$

In Stock, only 3 left!

0

117

Murray 174873

Gauge Wheel

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$

$

Not available

120

Murray 19132012

Washer 13/32 x 1-1/4 x 12 Ga.

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$

$

Not available

122

Murray 187557

Bushing Tension Relief
(Superseded to 715914)

Note: (This part is not serviced by Briggs & Stratton.) (Refer to Note**)

$63.99

$

Usually ships in 2-12 days

0

185

Murray 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

187

Murray 705088

Stud Fastr. w/"D" Anti-Rotation

$12.99

$

In Stock, only 2 left!

0

188

Murray 708491

Nut Lock Hex Flange

$7.99

$

Usually ships in 2-12 days

0

189

Murray 708254

Arm Susp. Mower Rear

$25.99

$

Usually ships in 2-12 days

0

190

Murray 705100

Bolt Shoulder

$15.99

$

Usually ships in 2-12 days

0

194

Murray 708487

Bolt Carr Sqnk 3/8-16 x 2-1/4

$9.99

$

Usually ships in 2-12 days

0

208

Murray 709191

Screw 3/8-16 x 1/2

$4.49

$

Usually ships in 2-12 days

0

--

Murray 708209

Mandrel Assembly

Note: (Includes Ref. Nos. 13, 14 & 15 only; pulley/nut/washer & blade bolt/washers not included)

$87.99

$

Usually ships in 2-12 days

0

--

Murray 708343

Replacement Mower, Complete

$1481.99

$

Usually ships in 2-12 days

0
