48G24G60X8A (96042005807) - Murray 48" Lawn Tractor, 24hp (2010) Drive Group (48G24G60X8A) Parts Diagram

48" Lawn Tractor, 24hp

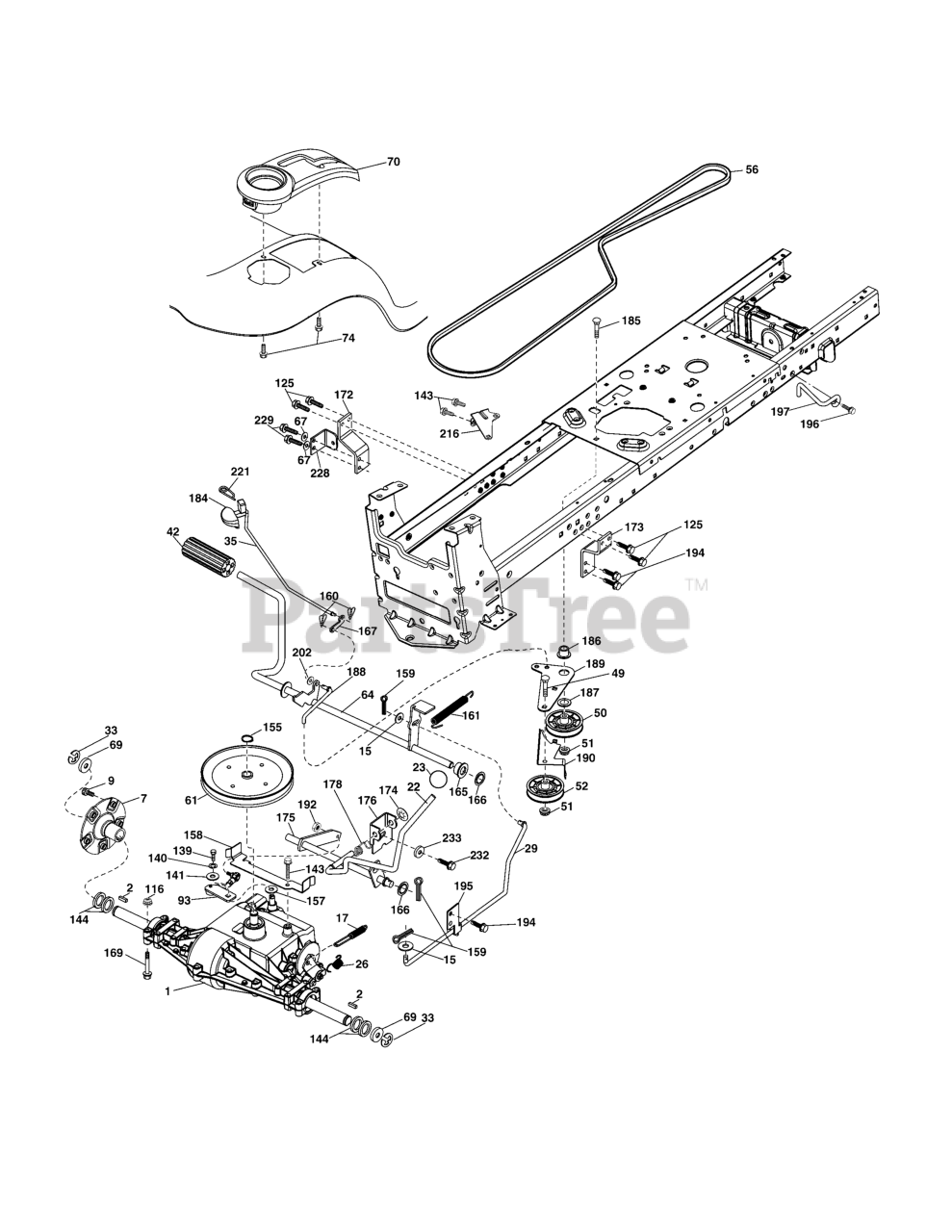

Drive Group (48G24G60X8A) Parts Diagram

  • Title

1

TRANSAXLE, Peerless P820-40

Note: (Order Parts from Transaxle Mfgr.)

$

$

Not available

2

Murray 708686

Key 1/4 x 2.5

$8.49

$

Usually ships in 2-12 days

0

7

Murray 708341

Hub Asm. Wheel Rear

$111.99

$

Usually ships in 2-12 days

0

9

Murray 708017

Bolt Hub Wheel Rear

$6.49

$

Usually ships in 2-12 days

0

15

Murray 709228

Washer 13/32 x 13/16 x 16 Ga.

$4.49

$

Usually ships in 2-12 days

0

17

Murray 708307

Spring, Brake

$6.99

$

Usually ships in 2-12 days

0

22

Murray 708351

Shift Shaft Asm.

$60.99

$

Usually ships in 2-12 days

0

23

Murray 709014

Knob

$11.99

$

Usually ships in 2-12 days

0

26

Murray 708312

Spring Brake Return

$6.49

$

Usually ships in 2-12 days

0

29

Murray 708302

Rod, Brake

$44.99

$

Usually ships in 2-12 days

0

33

Murray 708470

Ring E #5133-100

$7.99

$

Usually ships in 2-12 days

0

35

Murray 708303

Rod, Brake, Park

$28.99

$

Usually ships in 2-12 days

0

42

Murray 709453

Cover, Foot Pedal

$8.99

$

Usually ships in 2-12 days

0

49

Murray 709418

Bolt

$6.49

$

In Stock, only 1 left!

0

50

Murray 770315

Pulley Idler Flat

$39.99

$

Usually ships in 2-12 days

0

51

Murray 709088

Lock Nut 3/8-16

$8.99

$

In Stock, only 3 left!

0

52

Murray 770314

Idler V-Groove 910" Offset

$31.99

$

Usually ships in 2-12 days

0

56

Murray 708337

V-Belt, Drive

$87.99

$

Usually ships in 2-12 days

0

61

Murray 708268

Pulley Transaxle

$71.99

$

Usually ships in 2-12 days

0

64

Murray 708277

Shaft Asm. Pedal Brake Control

$69.99

$

Usually ships in 2-12 days

0

67

Murray 709227

Washer 13/32 x 13/16 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

69

Murray 708569

Washer

$7.49

$

Usually ships in 2-12 days

0

70

Murray 708599

Console

$106.99

$

Usually ships in 2-12 days

0

74

Murray 709081

Screw 1/4 x 1/2
(Superseded to 705019)

$4.99

$

Usually ships in 2-12 days

0

93

Murray 708305

Link Shift

$131.99

$

Usually ships in 2-12 days

0

116

Murray 708491

Nut Lock Hex Flange 5/16-18

$7.99

$

Usually ships in 2-12 days

0

125

Murray 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

139

Murray 709437

Bolt 1/4-28

$4.99

$

Usually ships in 2-12 days

0

140

Murray 709001

Washer Lock Hvy Helical

$4.99

$

Usually ships in 2-12 days

0

141

Murray 709222

Washer 9/32 x 3/4 x 10

$7.99

$

Usually ships in 2-12 days

0

143

Murray 709162

Screw 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

144

Murray 708345

Washer Spacer Axle

$14.99

$

Usually ships in 2-12 days

0

155

Murray 708469

Ring Retainer

$9.49

$

Usually ships in 2-12 days

0

157

Murray 709008

Washer Plate

$6.49

$

Usually ships in 2-12 days

0

158

Murray 708267

Belt Keeper

$7.99

$

Usually ships in 2-12 days

0

159

Murray 709446

Pin Cotter 1/8 x 3/4

$4.99

$

Usually ships in 2-12 days

0

160

Murray 705029

Retainer Clip

$8.99

$

Usually ships in 2-12 days

0

161

Murray 704989

Spring, Return, Clutch

$22.99

$

Usually ships in 2-12 days

0

165

Murray 708279

Busing Shaft Brake Hand Control

$6.49

$

Usually ships in 2-12 days

0

166

Murray 708429

Nut Push .625

$8.99

$

Usually ships in 2-12 days

0

167

Murray 705165

Latch Brake Parking

$8.99

$

Usually ships in 2-12 days

0

169

Murray 705359

Bolt 5/16-18 x Gr. 5

$6.49

$

Usually ships in 2-12 days

0

172

Murray 708282

Strap Torque LH

$13.99

$

Usually ships in 2-12 days

0

173

Murray 708283

Torque Strap RH

$13.99

$

Usually ships in 2-12 days

0

174

Murray 708304

Nut Push

$6.49

$

In Stock, only 1 left!

0

175

Murray 708281

Shaft Asm. Shift Gear Drive

$21.99

$

Usually ships in 2-12 days

0

176

Murray 708280

Arm Clevis Rod Shift

$10.99

$

Usually ships in 2-12 days

0

178

Murray 708313

Spring Shift

$6.49

$

Usually ships in 2-12 days

0

184

Murray 708623

Handle Parking Brake

$15.99

$

Usually ships in 2-12 days

0

185

Murray 709420

Bolt

$6.49

$

In Stock, only 1 left!

0

186

Murray 705070

Spacer Retainer

$11.99

$

Usually ships in 2-12 days

0

187

Murray 709233

Washer

$6.49

$

In Stock, only 1 left!

0

188

Murray 705078

Link Clutch Ground Drive

$11.99

$

Usually ships in 2-12 days

0

189

Murray 705068

Bellcrank Ground Drive

$10.99

$

Usually ships in 2-12 days

0

190

Murray 705069

Keeper Bellcrank Ground Drive

$9.49

$

Usually ships in 2-12 days

0

192

Murray 709092

Nut Lock Center 1/4-28

$4.99

$

Usually ships in 2-12 days

0

194

Murray 709152

Screw 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

195

Murray 708308

Bracket Brake Rod

$6.99

$

Usually ships in 2-12 days

0

196

Murray 709149

Screw 3/8-16 x 1

$9.99

$

Usually ships in 2-12 days

0

197

Murray 708339

Bracket Anti-Rotation Clutch

$9.49

$

Usually ships in 2-12 days

0

202

Murray 708477

Washer

$12.99

$

Usually ships in 2-12 days

0

216

Murray 705096

Bracket Pulley Idler

$6.99

$

Usually ships in 2-12 days

0

221

Murray 705155

Retainer Spring Clip Handle

$5.99

$

Usually ships in 2-12 days

0

228

Murray 708354

Bracket Anti-Sway

$13.99

$

Usually ships in 2-12 days

0

229

Murray 708473

Screw 5/16-18 x 1

$10.99

$

Usually ships in 2-12 days

0

232

Murray 708504

Bolt 7/16-14 x 1 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

233

Murray 708379

Washer Serrated

$6.99

$

Usually ships in 2-12 days

0
