48G24G60X8A (96042005807) - Murray 48" Lawn Tractor, 24hp (2010) Engine Group (48G24G60X8A) Parts Diagram

48" Lawn Tractor, 24hp

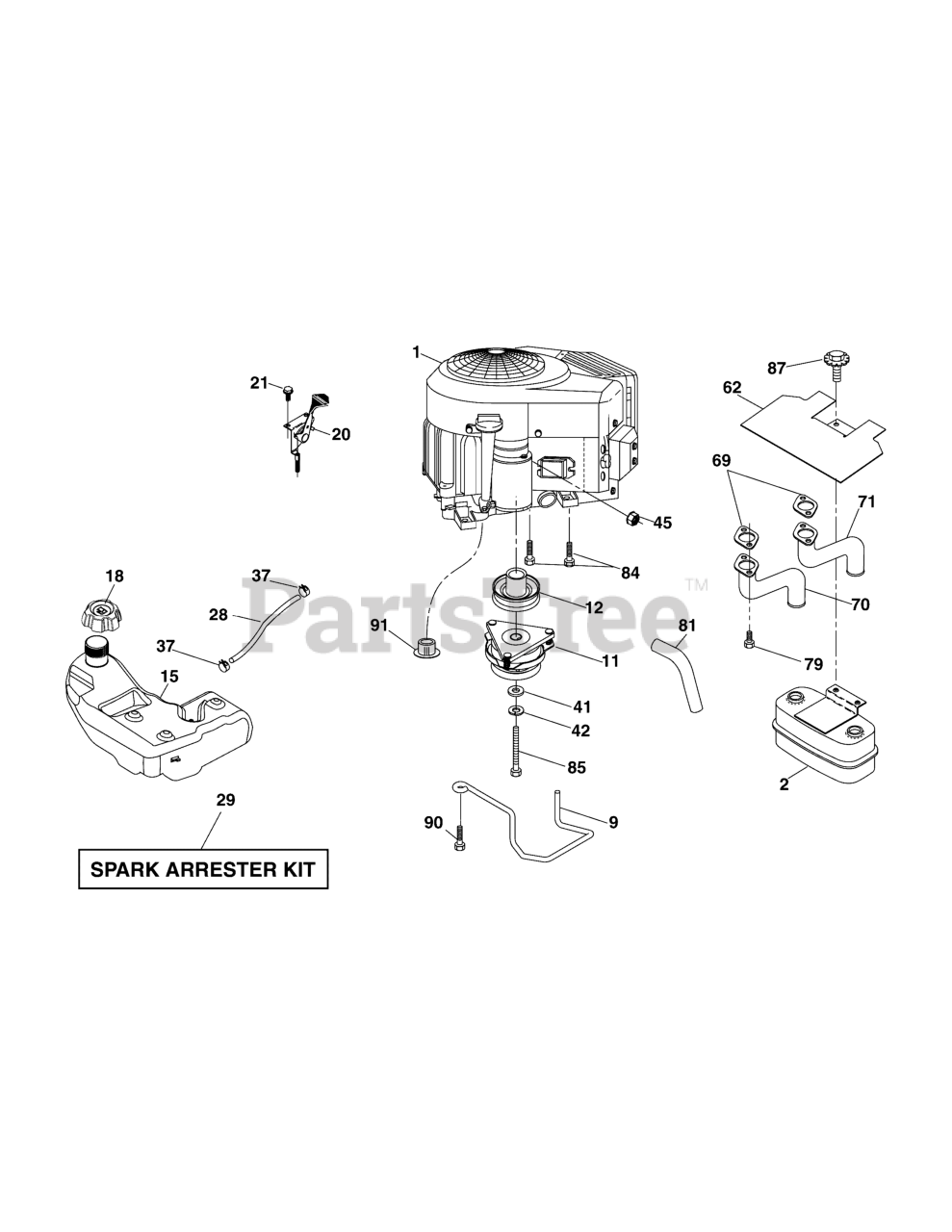

Engine Group (48G24G60X8A) Parts Diagram

  • Title

1

Murray 445677-1201-B1

ENGINE, 24HP Briggs & Stratton

Note: ( Engine Model: 445677-1201-B1 )

$

$

Currently unavailable

2

Murray 707983

Muffler

$106.99

$

Usually ships in 2-12 days

0

9

Murray 708240

Keeper Asm. Belt Engine

$25.99

$

Usually ships in 2-12 days

0

11

Murray 708195

Clutch Electric
(Superseded to 709725)

$444.99

$

Usually ships in 2-12 days

0

12

Murray 194342

Pulley Engine

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

15

Murray 708233

Tank Fuel 4.0

$288.99

$

Usually ships in 2-12 days

0

18

Murray 195951

Cap Asm

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

20

Murray 708673

Control TH/CK

$45.99

$

Usually ships in 2-12 days

0

21

Murray 709330

Screw 10 x .750 BOS Thread
(Superseded to 705233)

$4.99

$

Usually ships in 2-12 days

0

28

Murray 705141

Fuel Line

$44.99

$

Usually ships in 2-12 days

0

29

Murray 709065

Spark Arrester Kit

$109.99

$

Usually ships in 2-12 days

0

37

Murray 709034

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

41

Murray 708571

Washer 1-1/2 OD x 15/32 ID x .250

$9.99

$

In Stock, only 1 left!

0

42

Murray 709004

Washer Lock 7/16
(Superseded to 705317)

$4.99

$

In Stock, only 2 left!

0

45

Murray 709428

Nut Keps 1/4-20 unc
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0

62

Murray 708045

Shield Heat Muffler
(Superseded to 709769)

$30.99

$

Usually ships in 2-12 days

0

69

Murray 705028

Gasket (Order from Eng. Mfgr.)

$30.99

$

In Stock, only 1 left!

0

70

Murray 159955

Tube Exhaust LH

Note: (This part is not serviced by Briggs & Stratton.)

$44.99

$

In Stock, Qty 8

0

71

Murray 160589

Tube Exhaust RH

Note: (This part is not serviced by Briggs & Stratton.)

$28.99

$

In Stock, Qty 6

0

79

Murray 705044

Screw Socket Head 5/16-18 x 1

$7.49

$

Usually ships in 2-12 days

0

81

Murray 770311

Tube Drain Oil Easy

$8.99

$

Usually ships in 2-12 days

0

84

Murray 709153

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

85

Murray 708198

Bolt Hex 7/16-20 x 3.75 Gr. 5

$9.99

$

Usually ships in 2-12 days

0

87

Murray 708324

Bolt 5/16-18 unc x 1 w/Sems

$8.49

$

Usually ships in 2-12 days

0

90

Murray 709149

Screw 3/8-16 x 1

$9.99

$

Usually ships in 2-12 days

0

91

Murray 187495

Bushing
(Superseded to 711778)

Note: (This part is not serviced by Briggs & Stratton.)

$10.99

$

In Stock, only 4 left!

0
