48G24G60X8A (96042005807) - Murray 48" Lawn Tractor, 24hp (2010) Seat Group (48G24G60X8A_48G24G22) Parts Diagram

48" Lawn Tractor, 24hp

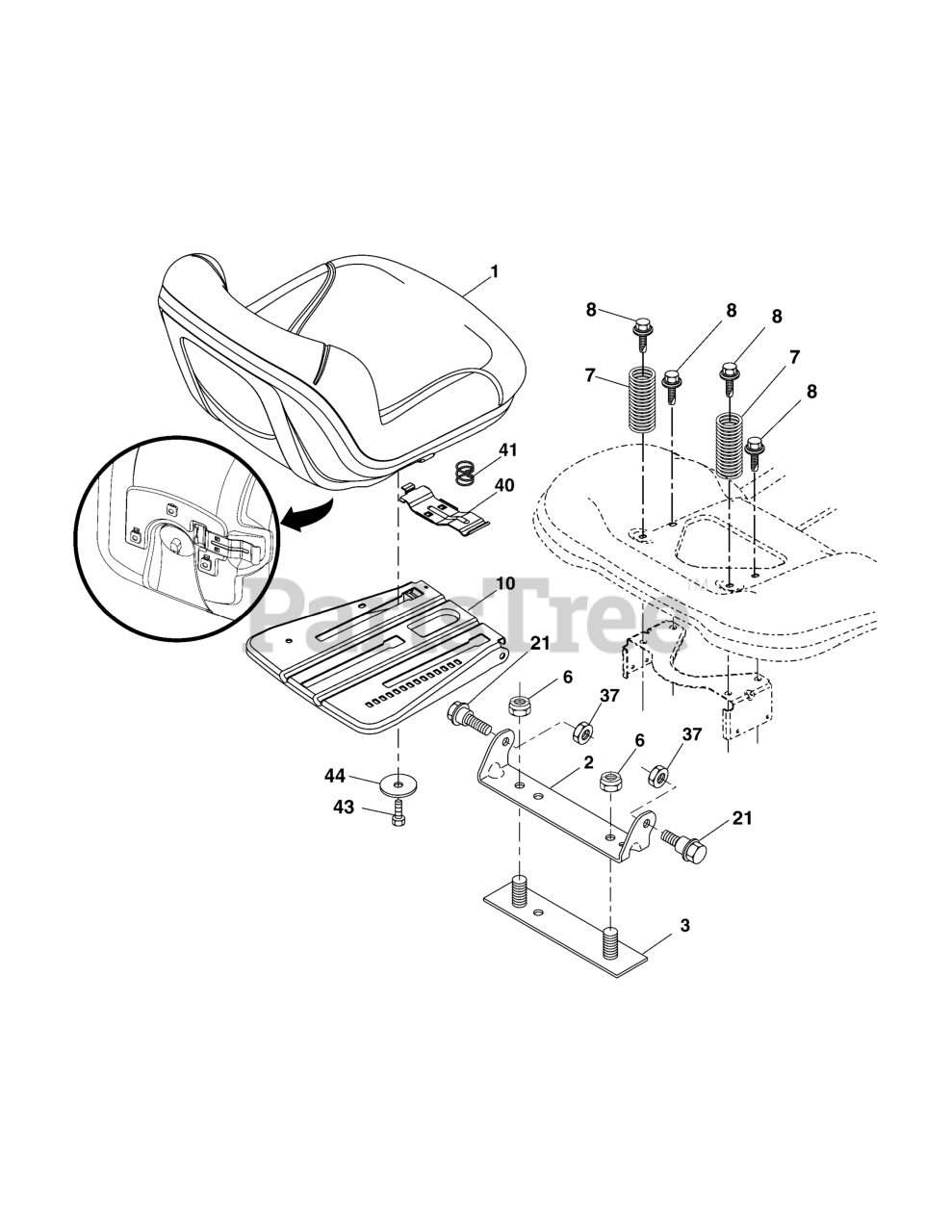

Seat Group (48G24G60X8A_48G24G22) Parts Diagram

  • Title

1

Murray 705174

Seat

$471.99

$

Usually ships in 2-12 days

0

2

Murray 705043

Bracket Pivot Fender

$12.99

$

Usually ships in 2-12 days

0

3

Murray 708024

Strap, Asm Fender

$9.49

$

Usually ships in 2-12 days

0

6

Murray 709433

Nut, Lock w/Ins. 3/8-16 unc

$4.49

$

Usually ships in 2-12 days

0

7

Murray 709040

Spring, Seat Cprsn

$7.99

$

Usually ships in 2-12 days

0

8

Murray 705031

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

Usually ships in 2-12 days

0

10

Murray 705102

Pan, Seat

$83.99

$

Usually ships in 2-12 days

0

21

Murray 709154

Bolt, Shoulder 5/16-18
(Superseded to 705030)

$7.99

$

Usually ships in 2-12 days

0

37

Murray 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

40

Murray 708319

Handle Slide Seat

$9.99

$

Usually ships in 2-12 days

0

41

Murray 705122

Spring Latch Seat

$9.49

$

Usually ships in 2-12 days

0

43

Murray 705365

Bolt 3/8-16 x 3/4

$5.99

$

In Stock, only 1 left!

0

44

Murray 705337

Washer 13/32 x 2-3/8 x 12 Ga.

$10.99

$

Usually ships in 2-12 days

0
