48L22AH0X8A (96042007601) - Murray 48" Lawn Tractor, 22hp (2010) 48" Mower Deck - Housing, Arbors & Blades (48L22AHOX8A) Parts Diagram

48" Lawn Tractor, 22hp

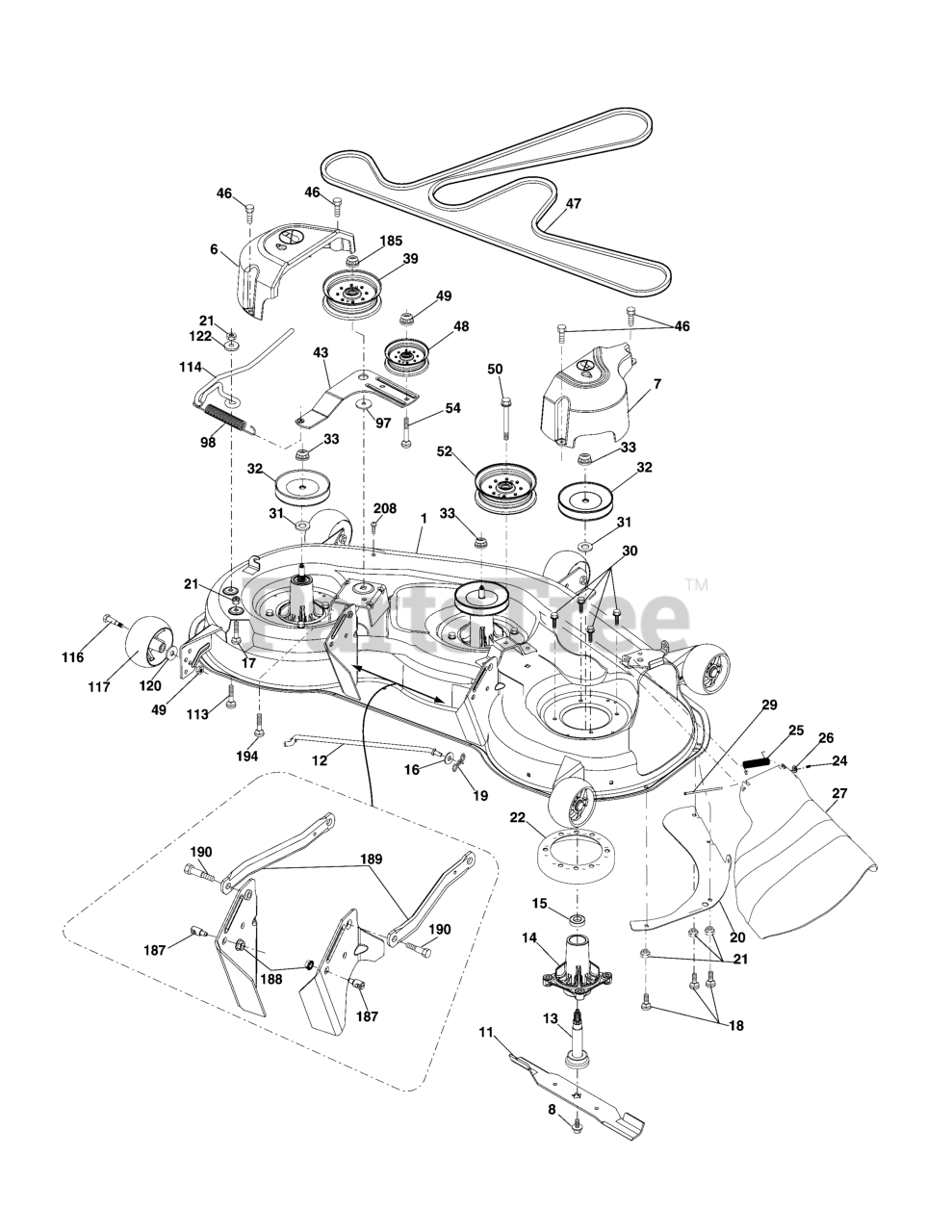

48" Mower Deck - Housing, Arbors & Blades (48L22AHOX8A) Parts Diagram

  • Title

1

Murray 197216

Deck Weldment Mower

Note: See your local Murray distributor for parts and service.

$

$

Not available

6

Murray 197248

Cover Mandrel LH
(Superseded to 708295)

Note: See your local Murray distributor for parts and service.

$36.99

$

Usually ships in 2-12 days

0

7

Murray 199102

Cover Mandrel RH
(Superseded to 708332)

Note: See your local Murray distributor for parts and service.

$28.99

$

Usually ships in 2-12 days

0

8

Murray 193003

Bolt/Washer Asm. 7/16-20
(Superseded to 709258)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

11

Murray 180054

Blade High Lift

Note: See your local Murray distributor for parts and service.

$15.99

$

In Stock, Qty 20+

0

12

Murray 404851

Rod Anti-Sway
(Superseded to 708376)

Note: See your local Murray distributor for parts and service.

$33.99

$

Usually ships in 2-12 days

0

13

Murray 187291

Shaft Asm. w/Lower Bearing

Note: See your local Murray distributor for parts and service.

$

$

Not available

14

Murray 187281

Housing, Mandrel
(Superseded to 705048)

Note: See your local Murray distributor for parts and service.

$82.99

$

In Stock, Qty 12

0

15

Murray 110485X

Bearing, Ball, Mandrel
(Superseded to 704992)

Note: See your local Murray distributor for parts and service.

$23.99

$

In Stock, only 1 left!

0

16

Murray 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 709227)

Note: See your local Murray distributor for parts and service.

$4.99

$

Usually ships in 2-12 days

0

17

Murray 72110505

Bolt 5/16-18 x 5/8
(Superseded to 708483)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

18

Murray 72140505

Bolt RdHd 5/16-18 unc x 5/8
(Superseded to 705344)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

19

Murray 194208

Pin Cotter 5/16 Bow Tie Lock
(Superseded to 709276)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

20

Murray 174378

Baffle Vortex
(Superseded to 708186)

Note: See your local Murray distributor for parts and service.

$30.99

$

Usually ships in 2-12 days

0

21

Murray 73680500

Nut, Crownlock 5/16-18 unc
(Superseded to 709430)

Note: See your local Murray distributor for parts and service.

$5.99

$

Usually ships in 2-12 days

0

22

Murray 174493

Mandrel Deck Stripper
(Superseded to 708187)

Note: See your local Murray distributor for parts and service.

$14.99

$

Usually ships in 2-12 days

0

24

Murray 105304X

Cap Sleeve
(Superseded to 709007)

Note: See your local Murray distributor for parts and service.

$3.99

$

Usually ships in 2-12 days

0

25

Murray 178102

Spring, Torsion
(Superseded to 708194)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

26

Murray 110452X

Nut, Push
(Superseded to 709016)

Note: See your local Murray distributor for parts and service.

$7.99

$

In Stock, only 3 left!

0

27

Murray 180655X428

Deflector Shield
(Superseded to 708585)

Note: See your local Murray distributor for parts and service.

$92.99

$

Usually ships in 2-12 days

0

29

Murray 131491

Rod, Hinge
(Superseded to 705009)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

30

Murray 173984

Screw, Thdroll Washer Head
(Superseded to 709771)

Note: See your local Murray distributor for parts and service.

$7.49

$

In Stock, Qty 20+

0

31

Murray 187690

Washer, Spacer Mower Vented
(Superseded to 709215)

Note: See your local Murray distributor for parts and service.

$7.99

$

In Stock, only 3 left!

0

32

Murray 153532

Pulley, Mandrel
(Superseded to 709096)

Note: See your local Murray distributor for parts and service.

$15.99

$

Usually ships in 2-12 days

0

33

Murray 400234

Nut, Flg. Top Lock
(Superseded to 709296)

Note: See your local Murray distributor for parts and service.

$11.99

$

In Stock, only 2 left!

0

39

Murray 197380

Pulley, Idler
(Superseded to 708310)

Note: See your local Murray distributor for parts and service.

$76.99

$

Usually ships in 2-12 days

0

43

Murray 196065

Arm, Idler
(Superseded to 708271)

Note: See your local Murray distributor for parts and service.

$31.99

$

Usually ships in 2-12 days

0

46

Murray 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 709067)

Note: See your local Murray distributor for parts and service.

$8.99

$

In Stock, only 1 left!

0

47

Murray 197242

Belt Deck Drive

Note: See your local Murray distributor for parts and service.

$

$

Not available

48

Murray 193197

Pulley Idler Primary
(Superseded to 708000)

Note: See your local Murray distributor for parts and service.

$60.99

$

Usually ships in 2-12 days

0

49

Murray 73900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 709088)

Note: See your local Murray distributor for parts and service.

$8.99

$

In Stock, only 3 left!

0

50

Murray 17490636

Screw 3/8-16 x 2-1/4
(Superseded to 708476)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

52

Murray 197379

Pulley Idler Clutching
(Superseded to 709729)

Note: See your local Murray distributor for parts and service.

$70.99

$

In Stock, only 4 left!

0

54

Murray 72110612

Bolt Carr SH 3/8-16 x 1-1/2 Gr. 5
(Superseded to 709417)

Note: See your local Murray distributor for parts and service.

$4.99

$

Usually ships in 2-12 days

0

97

Murray 178515

Washer Hardened
(Superseded to 709186)

Note: See your local Murray distributor for parts and service.

$4.49

$

Usually ships in 2-12 days

0

98

Murray 196105

Spring Drive

Note: See your local Murray distributor for parts and service.

$7.49

$

In Stock, Qty 20+

0

113

Murray 72110508

Bolt Rdhd Sqnk 5/16-18 x 3/4
(Superseded to 708484)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

114

Murray 197451

Rod Tension Relief
(Superseded to 708311)

Note: See your local Murray distributor for parts and service.

$22.99

$

Usually ships in 2-12 days

0

116

Murray 193406

Bolt, Shoulder
(Superseded to 708232)

Note: See your local Murray distributor for parts and service.

$7.99

$

In Stock, only 3 left!

0

117

Murray 174873

Gauge Wheel

Note: See your local Murray distributor for parts and service.

$

$

Not available

120

Murray 19132012

Washer 13/32 x 1-1/4 x 12 Ga.

Note: See your local Murray distributor for parts and service.

$

$

Not available

122

Murray 187557

Bushing Tension Relief
(Superseded to 715914)

Note: See your local Murray distributor for parts and service.

$63.99

$

Usually ships in 2-12 days

0

185

Murray 73900700

Nut Lock Flange 7/16-14 Gr. 5
(Superseded to 705354)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

187

Murray 195161

Stud Fastener w/"D" Anti-Rotation
(Superseded to 705088)

Note: See your local Murray distributor for parts and service.

$12.99

$

In Stock, only 2 left!

0

188

Murray 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 708491)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

189

Murray 195185

Arm Susp. Mower Rear
(Superseded to 708254)

Note: See your local Murray distributor for parts and service.

$25.99

$

Usually ships in 2-12 days

0

190

Murray 196539

Bolt Shoulder
(Superseded to 705100)

Note: See your local Murray distributor for parts and service.

$15.99

$

Usually ships in 2-12 days

0

194

Murray 72140716

Bolt Carr Sqnk 7/16-24 x 2
(Superseded to 708487)

Note: See your local Murray distributor for parts and service.

$9.99

$

Usually ships in 2-12 days

0

208

Murray 17670608

Screw 3/8-16 x 1/2
(Superseded to 709191)

Note: See your local Murray distributor for parts and service.

$4.49

$

Usually ships in 2-12 days

0

- -

Murray 187292

Mandrel Assembly
(Superseded to 187292GS)

Note: (Includes housing, Shaft assembly & bearing only- pulley/nut/washer & blad bolt/washers not included)

$7.99

$

Usually ships in 2-12 days

0

- -

Murray 199859

REPLACEMENT MOWER, Complete
(Superseded to 708343)

Note: See your local Murray distributor for parts and service.

$1481.99

$

Usually ships in 2-12 days

0
