48L22AH0X8A (96042007601) - Murray 48" Lawn Tractor, 22hp (2010) Chassis Group (48L22AHOX8A) Parts Diagram

48" Lawn Tractor, 22hp

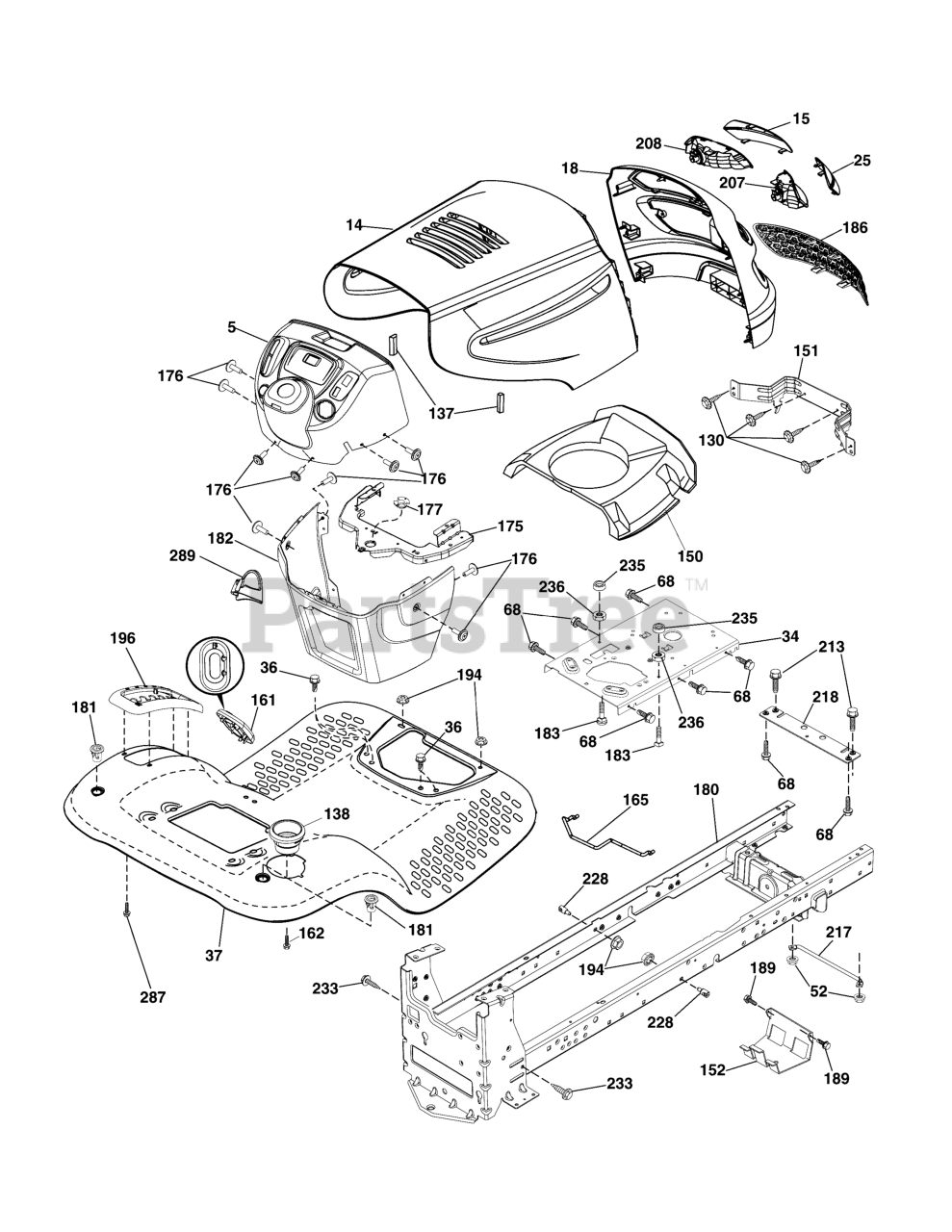

Chassis Group (48L22AHOX8A) Parts Diagram

  • Title

5

Murray 199648X428

Dash

Note: See your local Murray distributor for parts and service.

$

$

Not available

14

Murray 183393X428

Hood
(Superseded to 708586)

Note: See your local Murray distributor for parts and service.

$285.99

$

Usually ships in 2-12 days

0

15

Murray 183834X599

Lens Grille LH
(Superseded to 708588)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

18

Murray 188223X428

Grille Asm

Note: See your local Murray distributor for parts and service.

$

$

Not available

25

Murray 183835X599

Lens Grille RH
(Superseded to 708589)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

34

Murray 196125

Plate Engine
(Superseded to 708274)

Note: See your local Murray distributor for parts and service.

$108.99

$

Usually ships in 2-12 days

0

36

Murray 17060512

Screw 5/16-18 x 3/4
(Superseded to 709152)

Note: See your local Murray distributor for parts and service.

$12.99

$

Usually ships in 2-12 days

0

37

Murray 414870X428

Fender
(Superseded to 708669)

Note: See your local Murray distributor for parts and service.

$459.99

$

Usually ships in 2-12 days

0

52

Murray 73680500

Nut Lock 5/16-18
(Superseded to 709430)

Note: See your local Murray distributor for parts and service.

$5.99

$

Usually ships in 2-12 days

0

68

Murray 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 709162)

Note: See your local Murray distributor for parts and service.

$5.49

$

Usually ships in 2-12 days

0

130

Murray 416358

Screw #10 x 0.750
(Superseded to 709330)

Note: See your local Murray distributor for parts and service.

$3.99

$

Usually ships in 2-12 days

0

137

Murray 184921

Bumper Hood
(Superseded to 709207)

Note: See your local Murray distributor for parts and service.

$13.99

$

Usually ships in 2-12 days

0

138

Murray 193224X428

Cupholder
(Superseded to 705428)

Note: See your local Murray distributor for parts and service.

$11.99

$

Usually ships in 2-12 days

0

150

Murray 189350

Duct Heat Hood

Note: See your local Murray distributor for parts and service.

$

$

Not available

151

Murray 407807

Bracket Pivot
(Superseded to 705178)

Note: See your local Murray distributor for parts and service.

$52.99

$

Usually ships in 2-12 days

0

152

Murray 199535

Shield Browning/Debris
(Superseded to 705129)

Note: See your local Murray distributor for parts and service.

$38.99

$

Usually ships in 2-12 days

0

161

Murray 193229X428

Window Fuel
(Superseded to 708610)

Note: See your local Murray distributor for parts and service.

$9.99

$

Usually ships in 2-12 days

0

162

Murray 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2
(Superseded to 705019)

Note: See your local Murray distributor for parts and service.

$5.49

$

Usually ships in 2-12 days

0

165

Murray 196826

Support Tank Rear
(Superseded to 705101)

Note: See your local Murray distributor for parts and service.

$35.99

$

Usually ships in 2-12 days

0

175

Murray 193243

Crossmember
(Superseded to 705063)

Note: See your local Murray distributor for parts and service.

$51.99

$

Usually ships in 2-12 days

0

176

Murray 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 705137)

Note: See your local Murray distributor for parts and service.

$15.99

$

Usually ships in 2-12 days

0

177

Murray 195227

Bushing Steering
(Superseded to 705091)

Note: See your local Murray distributor for parts and service.

$13.99

$

In Stock, only 3 left!

0

180

Murray 195457

Chassis
(Superseded to 705094)

Note: See your local Murray distributor for parts and service.

$310.99

$

Usually ships in 2-12 days

0

181

Murray 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 705433)

Note: See your local Murray distributor for parts and service.

$8.99

$

Usually ships in 2-12 days

0

182

Murray 193057

Dash Lower
(Superseded to 705060)

Note: See your local Murray distributor for parts and service.

$187.99

$

Usually ships in 2-12 days

0

183

Murray 74780520

Bolt Fin Hex 5/16-18 x 1-1/4
(Superseded to 705363)

Note: See your local Murray distributor for parts and service.

$5.99

$

Usually ships in 2-12 days

0

186

Murray 183829X428

Insert Grille

Note: See your local Murray distributor for parts and service.

$

$

Not available

189

Murray 17000512

Screw 5/16-18 x 3/4
(Superseded to 709742)

Note: See your local Murray distributor for parts and service.

$8.99

$

Usually ships in 2-12 days

0

194

Murray 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 708491)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

196

Murray 414579

Console Asm. Deck Lift
(Superseded to 708407)

Note: See your local Murray distributor for parts and service.

$70.99

$

Usually ships in 2-12 days

0

207

Murray 183833

Bezel Grille RH
(Superseded to 708204)

Note: See your local Murray distributor for parts and service.

$33.99

$

Usually ships in 2-12 days

0

208

Murray 183832

Bezel Grille LH
(Superseded to 708203)

Note: See your local Murray distributor for parts and service.

$33.99

$

Usually ships in 2-12 days

0

213

Murray 74760512

Bolt 5/16-18 unc x 3/4
(Superseded to 709439)

Note: See your local Murray distributor for parts and service.

$9.49

$

Usually ships in 2-12 days

0

217

Murray 409167

Rod Pivot Hood
(Superseded to 709322)

Note: See your local Murray distributor for parts and service.

$5.49

$

Usually ships in 2-12 days

0

218

Murray 196395

Hood Stop
(Superseded to 705099)

Note: See your local Murray distributor for parts and service.

$8.49

$

Usually ships in 2-12 days

0

228

Murray 195161

Stud Fastener
(Superseded to 705088)

Note: See your local Murray distributor for parts and service.

$13.99

$

In Stock, only 1 left!

0

233

Murray 196539

Bolt Shoulder
(Superseded to 705100)

Note: See your local Murray distributor for parts and service.

$15.99

$

Usually ships in 2-12 days

0

235

Murray 406129

Spacer Fender
(Superseded to 705173)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

236

Murray 73930500

Nut Center Lock 5/16-18
(Superseded to 705355)

Note: See your local Murray distributor for parts and service.

$13.99

$

In Stock, only 1 left!

0

287

Murray 17600406

1/4-20 x 3/8
(Superseded to 709185)

Note: See your local Murray distributor for parts and service.

$5.99

$

In Stock, only 1 left!

0

289

Murray 400796X428

Phone Holder

Note: See your local Murray distributor for parts and service.

$

$

Not available
