48L22AH0X8A (96042007601) - Murray 48" Lawn Tractor, 22hp (2010) Electrical Group (48L22AHOX8A) Parts Diagram

48" Lawn Tractor, 22hp

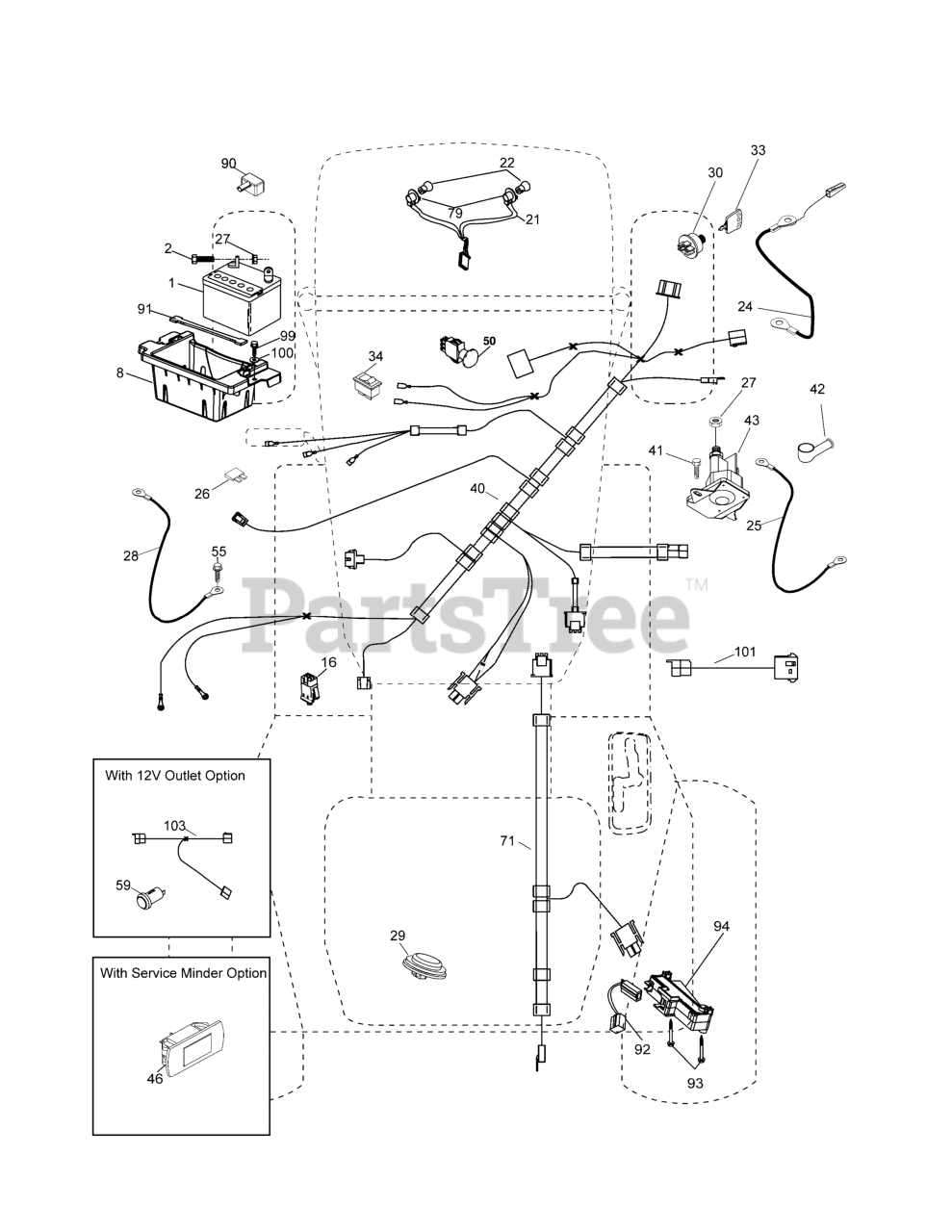

Electrical Group (48L22AHOX8A) Parts Diagram

  • Title

1

Murray 163465

Battery
(Superseded to 709116)

Note: See your local Murray distributor for parts and service.

$216.99

$

In Stock, only 2 left!

0

2

Murray 74760412

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 709438)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

8

Murray 186491

Box Battery
(Superseded to 705046)

Note: See your local Murray distributor for parts and service.

$31.99

$

Usually ships in 2-12 days

0

16

Murray 176138

Switch Interlock
(Superseded to 705042)

Note: See your local Murray distributor for parts and service.

$21.99

$

In Stock, only 2 left!

0

21

Murray 183759

Harness Socket Light
(Superseded to 708202)

Note: See your local Murray distributor for parts and service.

$57.99

$

Usually ships in 2-12 days

0

22

Murray 4152J

Bulb, Light #1156
(Superseded to 704984)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

24

Murray 400253

Cable Battery
(Superseded to 705135)

Note: See your local Murray distributor for parts and service.

$16.99

$

Usually ships in 2-12 days

0

25

Murray 412894

Cable Battery 6 Ga. BL/Red 14.5
(Superseded to 705225)

Note: See your local Murray distributor for parts and service.

$19.99

$

Usually ships in 2-12 days

0

26

Murray 175158

Fuse
(Superseded to 705040)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 709428)

Note: See your local Murray distributor for parts and service.

$4.49

$

In Stock, only 2 left!

0

28

Murray 145491

Cable Ground
(Superseded to 708043)

Note: See your local Murray distributor for parts and service.

$13.99

$

Usually ships in 2-12 days

0

29

Murray 401545

Switch Seat

Note: See your local Murray distributor for parts and service.

$39.99

$

In Stock, Qty 20+

0

30

Murray 193350

Switch Ign
(Superseded to 705064)

Note: See your local Murray distributor for parts and service.

$100.99

$

Usually ships in 2-12 days

0

33

Murray 411933

Key/Chain
(Superseded to 704428)

Note: See your local Murray distributor for parts and service.

$22.99

$

In Stock, only 1 left!

0

34

Murray 110712X

Switch Light/Reset
(Superseded to 709017)

Note: See your local Murray distributor for parts and service.

$6.99

$

In Stock, only 1 left!

0

40

Murray 401104

Harness Dash
(Superseded to 708358)

Note: See your local Murray distributor for parts and service.

$145.99

$

Usually ships in 2-12 days

0

41

Murray 17720408

Screw 1/4-20 unc x 1/2
(Superseded to 709192)

Note: See your local Murray distributor for parts and service.

$5.49

$

Usually ships in 2-12 days

0

42

Murray 131563

Cover Terminal Red
(Superseded to 709053)

Note: See your local Murray distributor for parts and service.

$9.49

$

Usually ships in 2-12 days

0

43

Murray 192507

Solenoid
(Superseded to 705055)

Note: See your local Murray distributor for parts and service.

$44.99

$

Usually ships in 2-12 days

0

46

Murray 401763

Gauge Hourmeter
(Superseded to 705146)

Note: See your local Murray distributor for parts and service.

$33.99

$

Usually ships in 2-12 days

0

50

Murray 174652

Switch PTO
(Superseded to 708023)

Note: See your local Murray distributor for parts and service.

$47.99

$

Usually ships in 2-12 days

0

55

Murray 17060512

Screw 5/16-18 x 3/4
(Superseded to 709152)

Note: See your local Murray distributor for parts and service.

$12.99

$

Usually ships in 2-12 days

0

71

Murray 194276

Harness Ign. Chass.
(Superseded to 705067)

Note: See your local Murray distributor for parts and service.

$62.99

$

Usually ships in 2-12 days

0

79

Murray 175242

Socket Asm. Bulb
(Superseded to 709171)

Note: See your local Murray distributor for parts and service.

$13.99

$

Usually ships in 2-12 days

0

90

Murray 400724

Cover Terminal
(Superseded to 708352)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

91

Murray 190270

Strap Battery Mount Front
(Superseded to 705053)

Note: See your local Murray distributor for parts and service.

$10.99

$

Usually ships in 2-12 days

0

92

Murray 196615

Harness Pigtail Reverse Switch
(Superseded to 709283)

Note: See your local Murray distributor for parts and service.

$12.99

$

Usually ships in 2-12 days

0

93

Murray 192540

Screw Plastic 10-14 x 2.0
(Superseded to 709245)

Note: See your local Murray distributor for parts and service.

$53.99

$

Usually ships in 2-12 days

0

94

Murray 191834

Module Reverse ROS
(Superseded to 709238)

Note: See your local Murray distributor for parts and service.

$34.99

$

Usually ships in 2-12 days

0

99

Murray 17670412

Screw Hexwsh Thdrol 1/4-20 x 3/4
(Superseded to 709189)

Note: See your local Murray distributor for parts and service.

$4.49

$

Usually ships in 2-12 days

0

100

Murray 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

101

Murray 198317

Pigtail Harness
(Superseded to 708325)

Note: See your local Murray distributor for parts and service.

$14.99

$

Usually ships in 2-12 days

0
