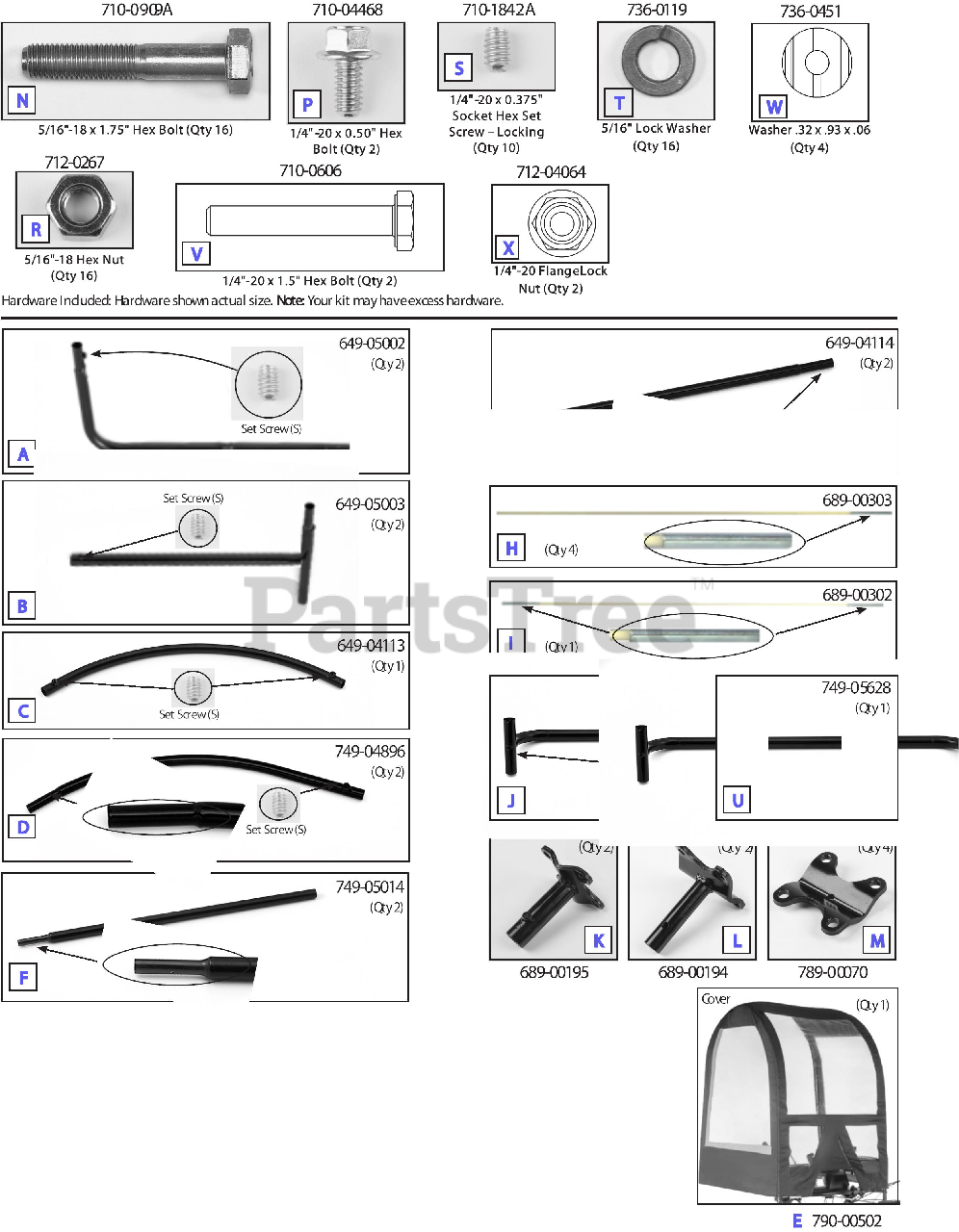

490-241-B032 - MTD Universal Snow Cab (2016) Replacement Parts Parts Diagram

Universal Snow Cab

Replacement Parts Parts Diagram

  • Title

N

MTD 710-0909A

Screw 5/16-18 X 1.750

$10.99

$

In Stock, only 2 left!

0

P

MTD 710-04468

Screw 1/4-20 X .50 Gr5

$4.49

$

Usually ships in 3-6 days

0

S

MTD 710-1842A

Screw 1/4-20 X .38

$5.99

$

In Stock, only 4 left!

0

T

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

W

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

R

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.99

$

In Stock, Qty 20+

0

V

MTD 710-0606

Screw 1/4-20 X 1.50 Gr.5

$5.99

$

In Stock, only 2 left!

0

X

MTD 712-04064

Flange Lock Nut

$4.49

$

In Stock, Qty 20+

0

A

MTD 649-05002

Back Side Rail Tube Assembly

$19.99

$

Usually ships in 3-6 days

0

B

MTD 649-05003

Front Side Rail Tube Assembly

$18.99

$

Usually ships in 3-6 days

0

C

MTD 649-04113

Arc Center Bar

$8.99

$

Usually ships in 3-6 days

0

D

MTD 749-04896

Arc End Bar (Lh) & (Rh)

$16.99

$

Usually ships in 3-6 days

0

F

MTD 749-05014

Front Vertical Tube

$7.99

$

Usually ships in 3-6 days

0

G

MTD 649-04114

Upright Rear Pole

$6.99

$

Usually ships in 3-6 days

0

H

MTD 689-00303

Single Rod Assembly

$4.99

$

Usually ships in 3-6 days

0

I

MTD 689-00302

Double Rod Assembly

$4.99

$

Usually ships in 3-6 days

0

J

MTD n/a

Crossbar

$

$

Currently unavailable

K

MTD 689-00195

Female Tube/Clamp Assembly

$9.49

$

Usually ships in 3-6 days

0

L

MTD 689-00194

Male Tube/Clamp Assembly

$9.49

$

Usually ships in 3-6 days

0

M

MTD 789-00070-0637

Clamp Plate

$9.49

$

Usually ships in 3-6 days

0

U

MTD n/a

Crossbar Connector

$

$

Currently unavailable

E

MTD 990-00502

Snow Cab Cover

$121.99

$

Usually ships in 3-6 days

0
