490-900-0067 - MTD Universal Sunshade General Assembly Parts Diagram

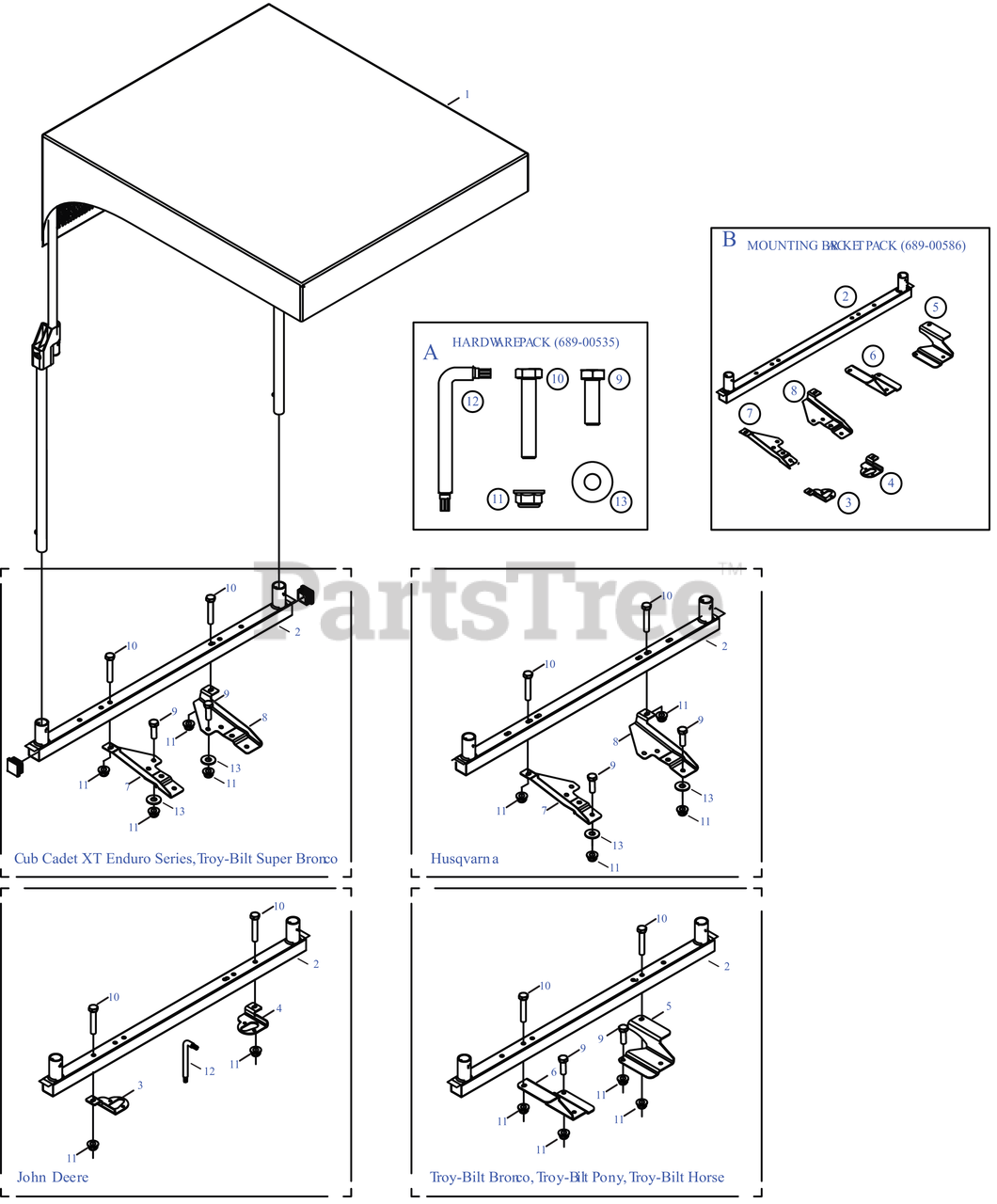

Universal Sunshade

General Assembly Parts Diagram

  • Title

1

MTD 689-00536

UNIVERSAL SUNSHADE CANOPY

$94.99

$

Usually ships in 3-6 days

0

B

MTD 689-00586

MOUNTING BRACKETS (UNIVERSAL SUNSHADE)

Note: (Includes 2-8)

$60.99

$

Usually ships in 3-6 days

0

2

Support

$

$

Not available

3

Mounting Bracket (RH)

Note: (John Deere)

$

$

Not available

4

Mounting Bracket (LH)

Note: (John Deere)

$

$

Not available

5

Mounting Bracket (LH)

Note: (Troy-Bilt Bronco, Troy-Bilt Pony, Troy-Bilt Horse)

$

$

Not available

6

Mounting Bracket (RH)

Note: (Troy-Bilt Bronco, Troy-Bilt Pony, Troy-Bilt Horse)

$

$

Not available

7

Mounting Bracket (RH)

Note: (Cub Cadet XT Enduro Series, Troy-Bilt Super Bronco, Husqvarna)

$

$

Not available

8

Mounting Bracket (LH)

Note: (Cub Cadet XT Enduro Series, Troy-Bilt Super Bronco, Husqvarna)

$

$

Not available

A

MTD 689-00535

HARDWARE PACK (UNIVERSAL SUNSHADE)

Note: (Includes 9-13)

$19.99

$

Usually ships in 3-6 days

0

9

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.99

$

In Stock, Qty 20+

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 727-05140

TORX DRIVER T30

$2.49

$

Usually ships in 3-6 days

0

13

MTD 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available
