490-900-M060 - Troy-Bilt 42Lb Rear Mount Weight Kit General Assembly Parts Diagram

42lb Rear Mount Weight Kit

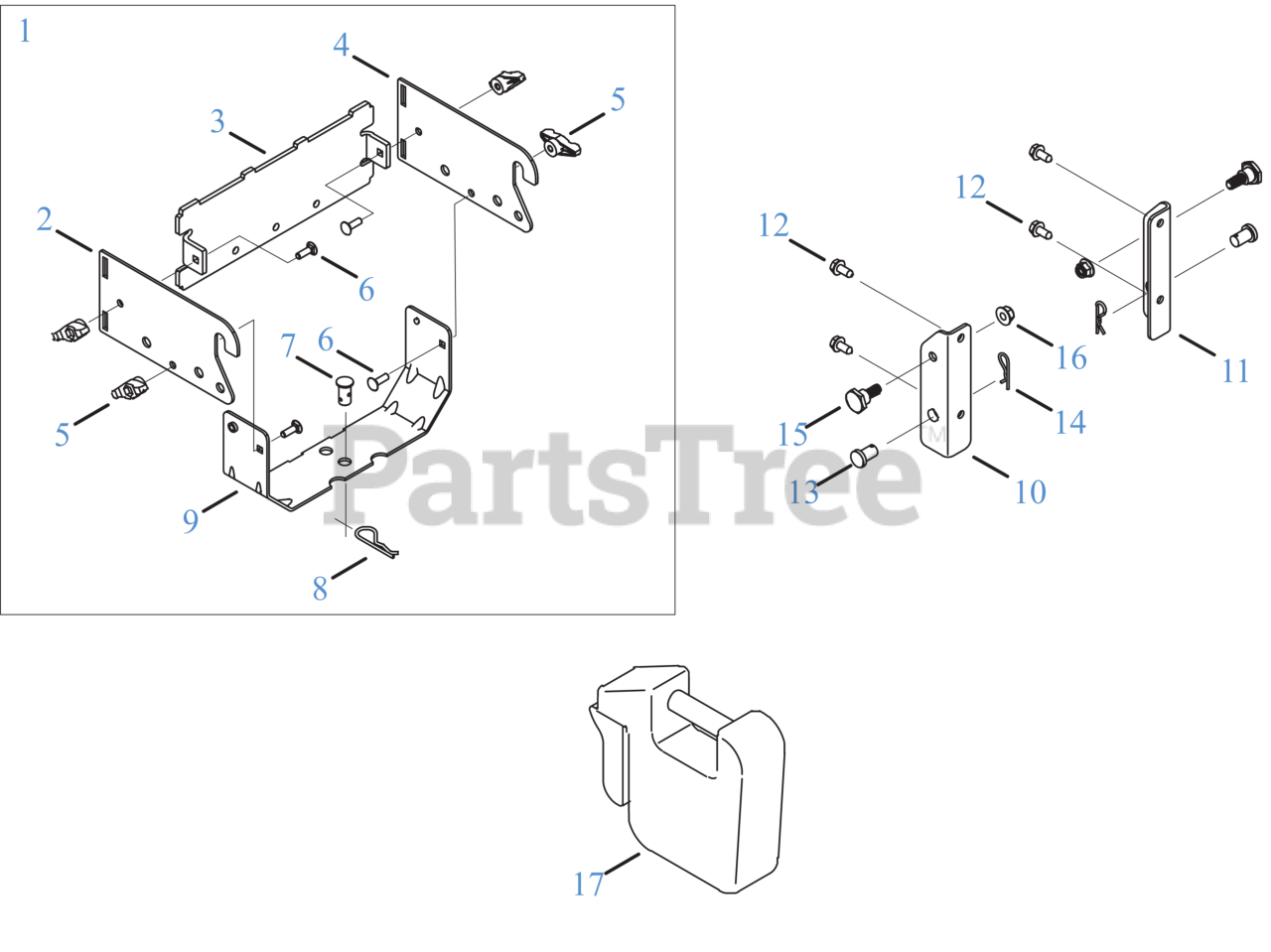

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 689-00304A

HITCH BRACKET ASSEMBLY

$

$

Not available

2

Hitch Bracket, RH

Note: * Can only be ordered as an assembly. Use Ref No 1 to order.

$

$

Not available

3

Rear Attachment Bracket

Note: * Can only be ordered as an assembly. Use Ref No 1 to order.

$

$

Not available

4

Hitch Bracket, LH

Note: * Can only be ordered as an assembly. Use Ref No 1 to order.

$

$

Not available

5

Troy-Bilt 720-04122

WING KNOB 5/16-18

$6.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-0309A

CLEVIS PIN .62

$11.99

$

In Stock, Qty 10

0

8

Troy-Bilt 714-0117

INTERNAL COTTER PIN

$3.99

$

In Stock, Qty 11

0

9

Troy-Bilt 783-08129-0637

GRASSBAG HITCH BRACKET

$49.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 783-05889A-0637

BRACKET (RH)

$23.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 783-05890A-0637

BRACKET (LH)

$23.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 911-0332

LIFT BRACKET PIN

$14.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 714-0145

INTERNAL COTTER PIN

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 738-04267

SHOULDER SCREW .625 x .412

$5.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 490-900-M059

Genuine Factory Parts WEIGHT - SUITCASE 42LB PLASTIC

$86.99

$

Usually ships in 3-6 days

0

Troy-Bilt 689-00328A

HARDWARE PACK

Note: For Ref No 1 HITCH BRACKET ASSEMBLY

$21.99

$

Usually ships in 3-6 days

0
