490 - Shindaiwa Chainsaw (EPA2 Version) Carburetor Parts Diagram

Chainsaw (EPA2 Version)

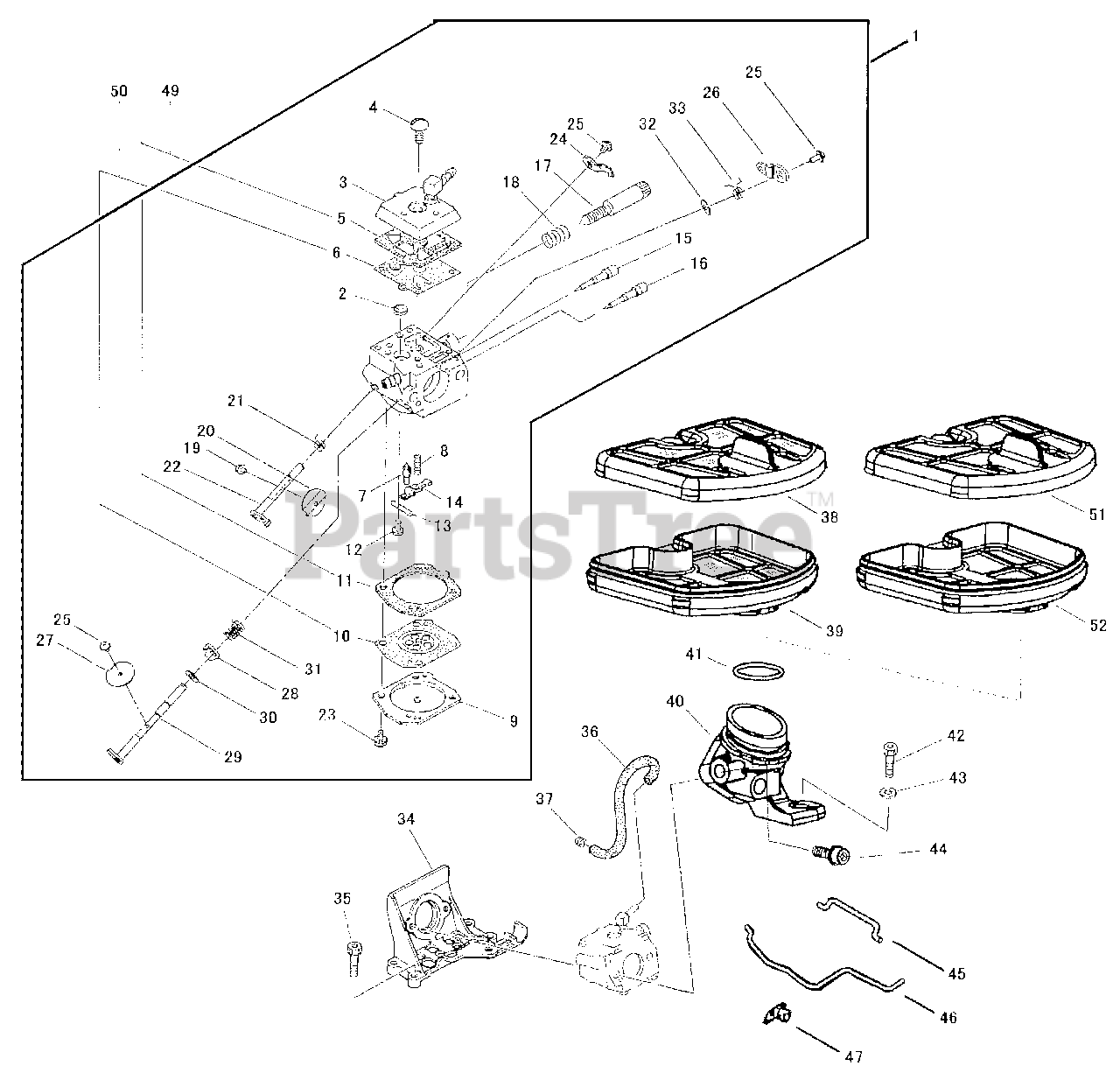

Carburetor Parts Diagram

  • Title

1

Echo 69020-81010

CARBURETOR
(Superseded to A021003080)

$102.99

$

Usually ships in 2-4 days

0

2

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 20+

0

3

Echo 72365-81120

COVER, PUMP
(Superseded to 12312419830)

$7.99

$

Usually ships in 2-4 days

0

4

Echo 22100-81130

SCREW, PUMP COVER
(Superseded to 12311003930)

$0.99

$

In Stock, only 2 left!

0

5

Echo 22150-81140

GASKET, PUMP
(Superseded to 12312512330)

$2.99

$

Usually ships in 2-4 days

0

6

Echo 22150-81150

DIAPHRAGM, PUMP
(Superseded to 12311212330)

$6.49

$

In Stock, only 1 left!

0

7

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

8

Echo 72342-81270

SPRING, METERING LEVER
(Superseded to 12312203660)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 22150-81280

COVER, DIAPHRAGM
(Superseded to 12314217330)

$3.99

$

Usually ships in 2-4 days

0

10

Echo 22150-81260

DIAPHRAGM, METERING
(Superseded to 12314116130)

$

$

Not available

11

Echo 22150-81290

GASKET, METERING
(Superseded to 12314016130)

$2.49

$

In Stock, only 2 left!

0

12

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

$1.49

$

In Stock, only 1 left!

0

13

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

14

Echo 22160-81230

LEVER, METERING
(Superseded to 12312316130)

$

$

Not available

15

Echo 69022-81320

VALVE, NEEDLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 69020-81320

VALVE, NEEDLE

$17.99

$

Usually ships in 2-4 days

0

17

Echo 22156-81410

SCREW, IDLE ADJUST
(Superseded to P003003030)

$11.99

$

Usually ships in 2-4 days

0

18

Echo 22156-81420

SPRING
(Superseded to 12313304260)

$6.49

$

In Stock, Qty 19

0

19

Echo 20803-81140

SCREW
(Superseded to 12311405260)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 22100-81340

VALVE, THROTTLE
(Superseded to 12311603930)

$1.99

$

In Stock, only 4 left!

0

21

Echo 22150-81430

SPRING, THROTTLE RETURN
(Superseded to P003000560)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 39309-81320

SHAFT

$

$

Not available

23

Echo 22100-81351

SCREW
(Superseded to 12313002960)

$1.99

$

Usually ships in 2-4 days

0

24

Echo 22160-81390

STOP, THROTTLE
(Superseded to 12315630830)

$1.99

$

Usually ships in 2-4 days

0

25

Echo 20803-81150

SCREW
(Superseded to 12311438830)

$1.49

$

In Stock, Qty 17

0

26

Echo 69020-81330

STOPPER

$14.99

$

Usually ships in 2-4 days

0

27

Echo 22160-81710

VALVE, CHOKE
(Superseded to 12313232430)

$1.99

$

Usually ships in 2-4 days

0

28

Echo 39309-81350

LEVER

$

$

Not available

29

Echo 39309-81340

SHAFT
(Superseded to P003003420)

$16.99

$

Usually ships in 2-4 days

0

30

Echo 20036-81185

WASHER
(Superseded to 12314926030)

$0.99

$

In Stock, only 1 left!

0

31

Echo 69020-81340

SPRING

$

$

Not available

32

Echo 70030-81390

RING, RETAINING
(Superseded to 12312715030)

$0.99

$

In Stock, Qty 10

0

33

Echo 69020-81350

SPRING

$7.99

$

Usually ships in 2-4 days

0

34

Echo 22160-82111

MOUNT
(Superseded to A200000860)

$13.99

$

Usually ships in 2-4 days

0

35

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$0.99

$

In Stock, Qty 20+

0

36

Echo 22160-82210

PULSE TUBE
(Superseded to V471002820)

$8.49

$

Usually ships in 2-4 days

0

37

Echo 22150-82140

CLIP
(Superseded to V490000760)

$0.99

$

In Stock, Qty 5

0

38

Echo 69020-82321

FILTER, AIR - UPPER -- NYLON
(Superseded to A226001130)

$7.99

$

Usually ships in 2-4 days

0

39

Echo 69020-82331

FILTER, AIR - LOWER -- NYLON
(Superseded to A226001140)

$7.99

$

In Stock, only 1 left!

0

40

Echo 69020-82341

ELBOW

$5.99

$

Usually ships in 2-4 days

0

41

Echo 69020-82370

O-RING

$1.99

$

In Stock, only 2 left!

0

42

Echo 22157-12130

BOLT - 5X18
(Superseded to V203001600)

$0.99

$

In Stock, Qty 20+

0

43

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

44

Echo 11022-05500

SCREW - 5X50
(Superseded to V203001530)

$1.99

$

In Stock, Qty 8

0

45

Echo 69020-83311

ROD, CHOKE

$2.99

$

Usually ships in 2-4 days

0

46

Echo 39309-83331

ROD, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

47

Echo 22160-82360

GROMMET
(Superseded to V133000050)

$1.99

$

Usually ships in 2-4 days

0

49

Echo 22150-81930

GASKET KIT
(Superseded to P050008620)

$7.49

$

Usually ships in 2-4 days

0

50

Echo 22150-81940

DIAPHRAGM KIT

$

$

Not available

51

Echo 69020-98321

FILTER, AIR - UPPER -- FLOCKED
(Superseded to A226001200)

$9.99

$

Usually ships in 2-4 days

0

52

Echo 69020-98331

FILTER, AIR - LOWER -- FLOCKED
(Superseded to A226001210)

$10.99

$

Usually ships in 2-4 days

0
