490 - Shindaiwa Chainsaw (EPA2 Version) Starter Parts Diagram

Chainsaw (EPA2 Version)

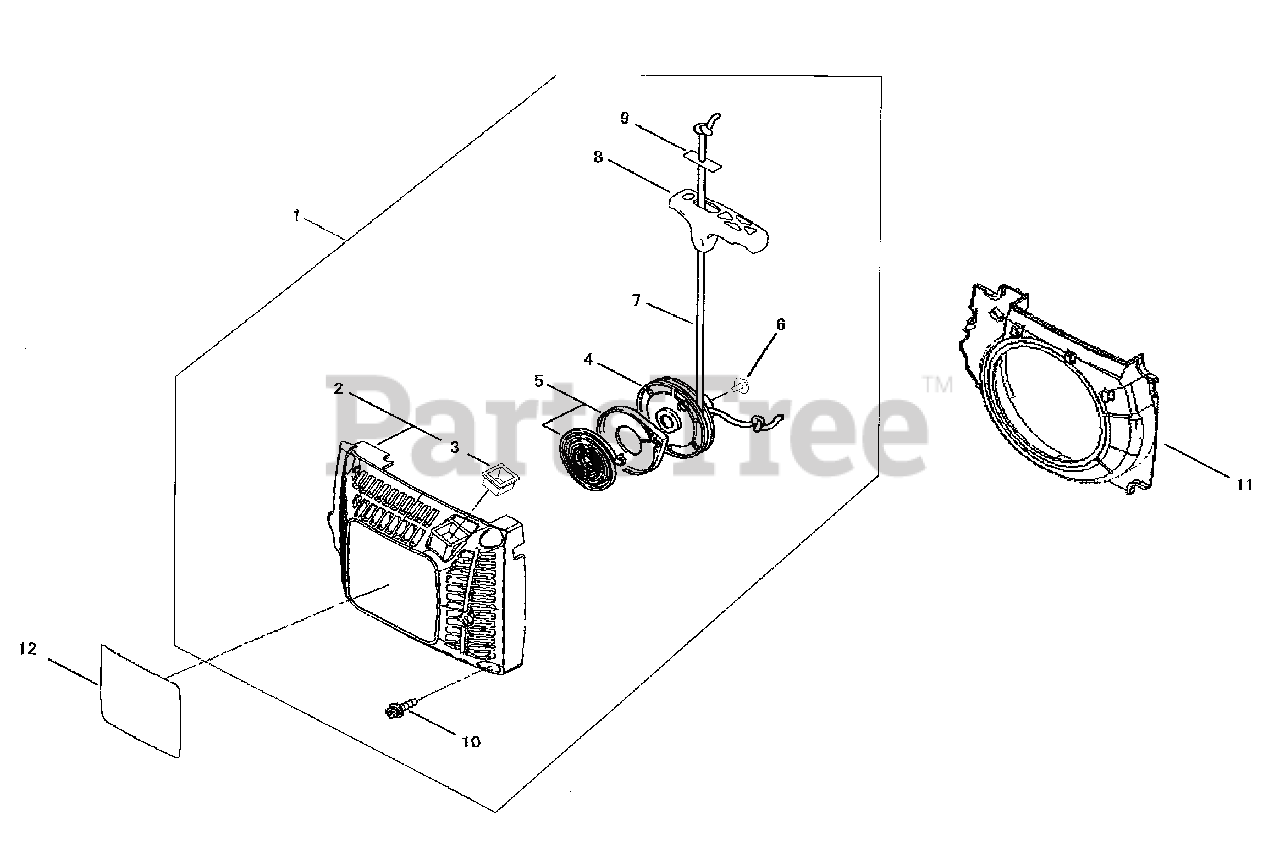

Starter Parts Diagram

  • Title

1

Echo 69020-75012

STARTER ASSY
(Superseded to A051002080)

$55.99

$

Usually ships in 2-4 days

0

2

Echo 69020-75111

COVER
(Superseded to 69020-75112)

$47.99

$

Usually ships in 2-4 days

0

3

Echo 22182-75120

GUIDE, ROPE
(Superseded to A510000130)

$3.99

$

Usually ships in 2-4 days

0

4

Echo 22182-75212

REEL, ROPE
(Superseded to A506000400)

$11.99

$

Usually ships in 2-4 days

0

5

Echo 22155-75410

REWIND SPRING ASSY
(Superseded to A504000190)

$18.99

$

In Stock, only 1 left!

0

6

Echo 72320-75420

SCREW -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 22182-75410

ROPE
(Superseded to A509000390)

$5.99

$

Usually ships in 2-4 days

0

8

Echo 22182-75420

GRIP, STARTER

$7.49

$

Usually ships in 2-4 days

0

9

Echo 22104-75430

RETAINER, ROPE
(Superseded to E184000010)

$2.49

$

In Stock, Qty 8

0

10

Echo 11060-04163

SCREW - 4X16
(Superseded to V202000200)

$1.99

$

In Stock, Qty 20+

0

11

Echo 22160-75613

DEFLECTOR, AIR
(Superseded to A172001450)

$5.49

$

Usually ships in 2-4 days

0

12

Echo 69020-91321

LABEL - MODEL 490

$2.99

$

Usually ships in 2-4 days

0
