490-SUB - Cub Cadet Engine 490-SUB Cylinder Head Parts Diagram

Engine

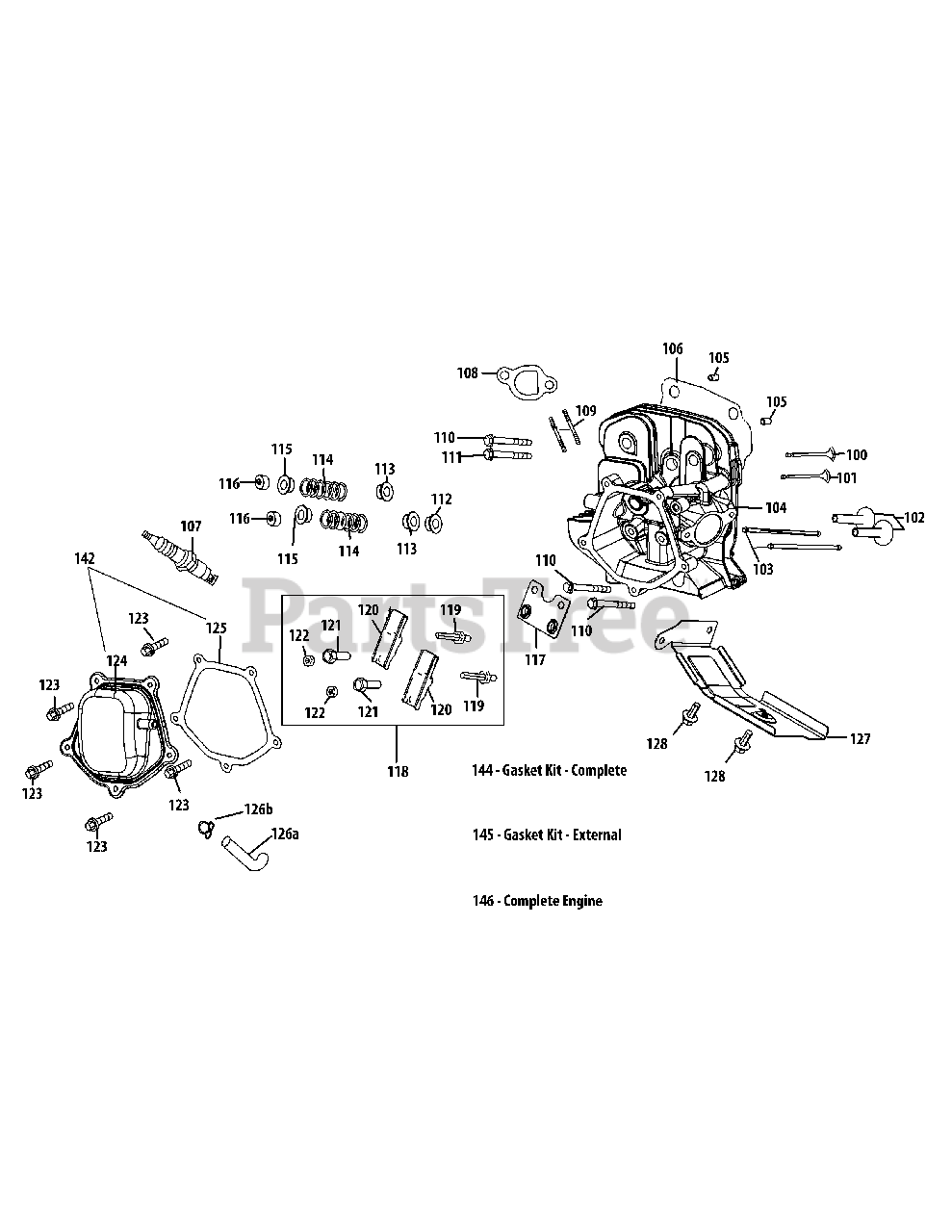

490-SUB Cylinder Head Parts Diagram

  • Title
100

$42.72

$

In Stock, only 2 left!

0

101

$42.72

$

In Stock, only 2 left!

0

102

$6.57

$

Usually ships in 5-10 days

0

103

Cub Cadet 951-11335

Push Rod Kit

$20.23

$

In Stock, only 4 left!

0

104

Cub Cadet 951-12592

Cylinder Head Kit

Note: (Inc.106,110-112,125)

$44.63

$

Usually ships in 5-10 days

0

104

Cub Cadet 951-11361A

Cylinder Head Assembly

Note: (Inc.100,101,104,106,108-112,114-122,125,129-133)

$280.89

$

Usually ships in 5-10 days

0

105

$4.92

$

Usually ships in 5-10 days

0

106

Cub Cadet 951-12094

Cylinder Head Gasket

$10.44

$

Usually ships in 5-10 days

0

107

Cub Cadet 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.70

$

In Stock, Qty 20+

0

108

Cub Cadet 951-11212

Muffler Gasket

$4.44

$

In Stock, only 1 left!

0

109

Cub Cadet 710-04964

Exhaust Stud M8×48.5

$5.05

$

Usually ships in 5-10 days

0

109

Cub Cadet 951-11207

Muffler Stud Assembly

$7.02

$

Usually ships in 5-10 days

0

110

Cub Cadet 710-06064

Bolt M10×1.25×87

$5.27

$

Usually ships in 5-10 days

0

111

Cub Cadet 710-06065

Bolt M10×1.25×65

$5.10

$

Usually ships in 5-10 days

0

112

Cub Cadet 951-11964

Intake Valve Seal

$

$

Not available

113

Cub Cadet 951-12077

Intake Valve Spring Retainer

$3.23

$

Usually ships in 5-10 days

0

114

Cub Cadet 951-12078

Valve Spring

$3.23

$

In Stock, Qty 9

0

115

Cub Cadet 951-12080

Exhaust Valve Spring Retainer

$3.39

$

In Stock, Qty 18

0

116

Cub Cadet 951-12081

Exhaust Lash Cap
(Superseded to 951-12269)

$5.05

$

In Stock, Qty 9

0

117

Cub Cadet 951-11965

Push Rod Guide

$

$

Not available

118

Cub Cadet 951-11981

Rocker Arm Assembly

$

$

Not available

119

Cub Cadet 710-04962

Bolt, Pivot

$5.08

$

In Stock, only 4 left!

0

120

Cub Cadet 951-11966

Rocker Arm

$6.74

$

Usually ships in 5-10 days

0

121

Cub Cadet 751-11123

Adjusting Nut ,Valve

$8.37

$

In Stock, Qty 8

0

122

Cub Cadet 751-11124

Pivot Locking Nut

$7.55

$

In Stock, Qty 7

0

123

Cub Cadet 710-05054

Valve Cover Bolt

$4.97

$

In Stock, only 2 left!

0

124

Cub Cadet 951-11220

Valve Cover

$28.63

$

Usually ships in 5-10 days

0

125

Cub Cadet 951-11967

Valve Cover Gasket

$13.23

$

In Stock, only 1 left!

0

126a

Cub Cadet 731-07059

Breather Hose

$5.08

$

In Stock, Qty 9

0

126b

Cub Cadet 726-04101

Breather Hose Clamp

$3.52

$

In Stock, Qty 10

0

127

Cub Cadet 951-11317

Cylinder Baffle

$23.01

$

Usually ships in 5-10 days

0

128

Cub Cadet 710-04915

Bolt M6×12

$3.52

$

In Stock, Qty 16

0

142

Cub Cadet 951-11333

Valve Cover Kit

$34.52

$

Usually ships in 5-10 days

0

144

Cub Cadet 951-11362

Gasket Kit - Complete

Note: (Inc.52,59,65,79,81,106,108,125,131-133)

$58.08

$

Usually ships in 5-10 days

0

145

Cub Cadet 951-11363

Gasket Kit - External

Note: (Inc.79,108,125,131-133)

$34.08

$

Usually ships in 5-10 days

0

146

Cub Cadet 952Z490-SUB

Complete Engine
(Superseded to 952Z490-SUC)

$

$

Not available
