490-SUC - MTD Engine 490-SUC Starter & Blower Housing Parts Diagram

Engine

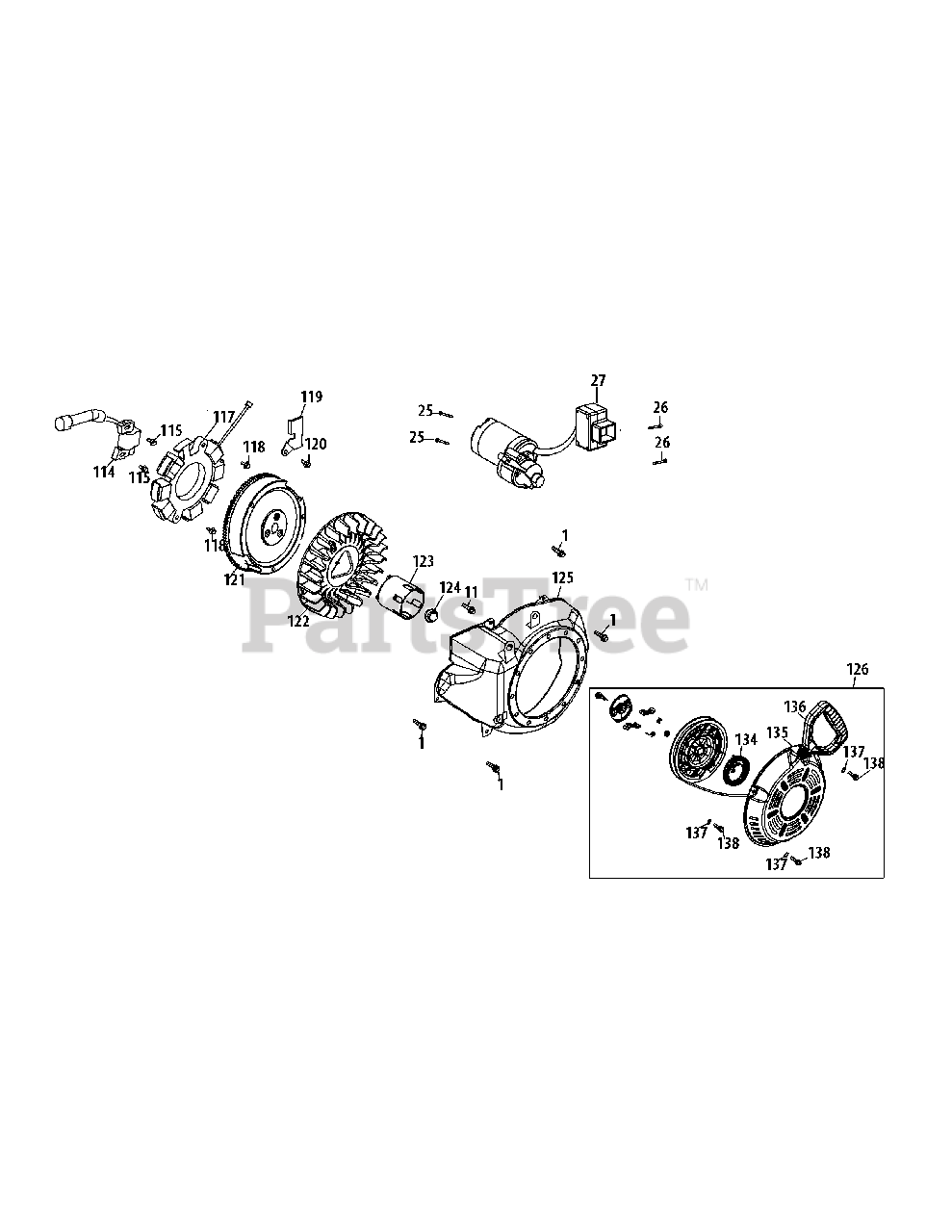

490-SUC Starter & Blower Housing Parts Diagram

  • Title

1

MTD 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 10

0

11

MTD 710-04968

BOLT M6×16

$6.49

$

In Stock, only 3 left!

0

25

MTD 710-04967

BOLT M8×55

$5.99

$

Usually ships in 3-6 days

0

26

MTD 710-04965

BOLT M4×55

$6.49

$

Usually ships in 3-6 days

0

27

MTD 951-11196

ELECTRIC STARTER

$379.99

$

Usually ships in 3-6 days

0

114

MTD 951-11305A

IGNITION COIL ASSEMBLY

$72.99

$

In Stock, only 1 left!

0

115

MTD 710-05350

IGNITION COIL BOLT

$3.99

$

Usually ships in 3-6 days

0

117

MTD 951-12555

ALTERNATOR ASSEMBLY

$47.99

$

Usually ships in 3-6 days

0

118

MTD 710-04969

BOLT M6×30

$3.99

$

In Stock, only 4 left!

0

119

MTD 951-11186

WIRE PLATE

$4.49

$

Usually ships in 3-6 days

0

120

MTD 710-04966

BOLT M6×8

$5.99

$

Usually ships in 3-6 days

0

121

MTD 951-12556

FLYWHEEL

$189.99

$

Usually ships in 3-6 days

0

122

MTD 951-11313

COOLING FAN
(Superseded to 951-11313A)

$46.99

$

Usually ships in 3-6 days

0

123

MTD 951-11314

STARTER CUP

$17.99

$

Usually ships in 3-6 days

0

124

MTD 712-04220

NUT M16×1.5

$5.99

$

Usually ships in 3-6 days

0

125

MTD 951-11211

BLOWER HOUSING

$80.99

$

Usually ships in 3-6 days

0

126

MTD 951-14223

RECOIL STARTER

$81.99

$

In Stock, Qty 15

0

134

MTD 932-05127

RECOIL SPRING

$10.99

$

In Stock, only 1 left!

0

135

MTD 908-05021

BLOWER HOUSING

$68.99

$

In Stock, Qty 5

0

136

MTD 731-05696

STARTER HANDLE

$15.99

$

In Stock, only 1 left!

0

137

MTD 736-04455

GASKET 06
(Superseded to 736-04455B)

$6.49

$

Usually ships in 3-6 days

0

138

MTD 710-04974

BOLT M6×10

$6.49

$

In Stock, only 2 left!

0
