490-WUA - Cub Cadet Engine 490-WUA Crankcase Parts Diagram

Engine

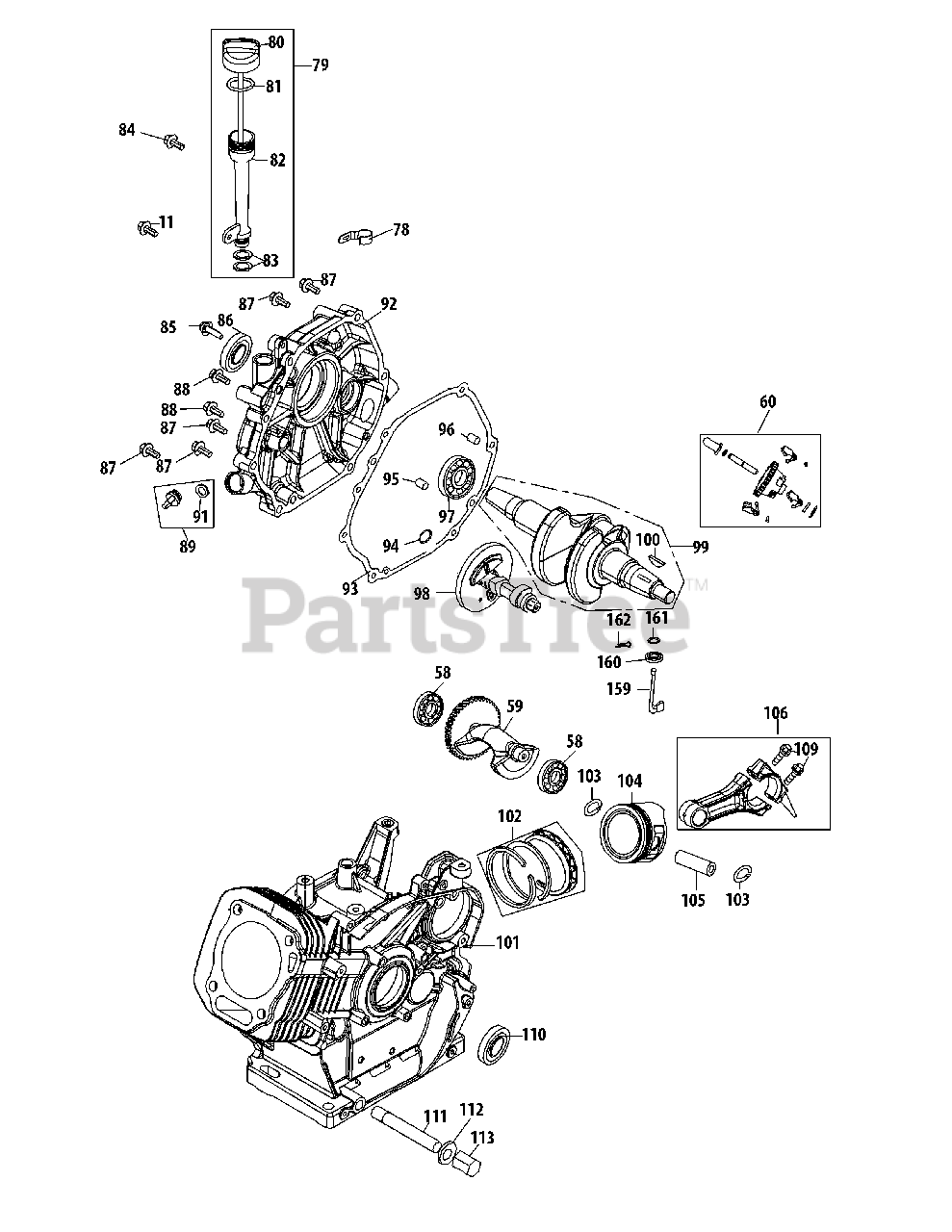

490-WUA Crankcase Parts Diagram

  • Title

58

Cub Cadet 951-11373

RADIAL BALL BEARING, 6202-P6

$34.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-12095

BALANCEABLE SHAFT ASSY.

$111.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-11956

GOVERNOR GEAR

$38.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-11320

DIPSTICK CLAMP

$7.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 631-05032A

DIPSTICK ASSEMBLY
(Superseded to 931-05032A)

$26.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 731-09316

DIPSTICK
(Superseded to 931-09316)

$13.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 921-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 731-09317

OIL FILL TUBE
(Superseded to 931-09317)

$12.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11381

OIL FILL TUBE O-RING

$4.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 710-05349

BOLT M6×8

$3.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 710-06289

BOLT M8×45

$4.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-11375

OIL SEAL, 35×52×7
(Superseded to 951-11375A)

$14.99

$

In Stock, Qty 12

0

87

Cub Cadet 710-06061

BOLT M8×38

$6.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 710-06063

BOLT M8×35

$5.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 951-11345

OIL FILLER PLUG COMP

$9.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-11960

O-RING 16×3

$4.49

$

In Stock, only 1 left!

0

92

Cub Cadet 751-14220A

CRANKCASE COVER
(Superseded to 951-14220A)

$94.99

$

In Stock, only 1 left!

0

93

Cub Cadet 951-11376

CRANKCASE COVER GASKET

$16.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 736-04476

WASHER 16×24×0.5

$5.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 715-04102

DOWEL PIN 9×12

$5.49

$

Usually ships in 3-6 days

0

96

Cub Cadet 715-04092

DOWEL PIN 7×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-11969

BEARING, 6207-P6

$29.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-11959A

CAMSHAFT ASSEMBLY
(Superseded to 951-11959B)

$63.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 651-05095

CRANKSHAFT ASSEMBLY
(Superseded to 951-05095)

$222.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-10307

WOODRUFF KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

101

Cub Cadet 751-14222

CRANKCASE COMP.
(Superseded to 951-14222)

$363.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-12593

PISTON RING SET

$25.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 951-11953

PISTON PIN SNAP RING
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 11

0

104

Cub Cadet 951-12092

PISTON

$32.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 951-11954

PISTON PIN
(Superseded to 951-11954A)

$7.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-11951

CONNECTING ROD ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-05319

CONNECTING ROD BOLT

$4.49

$

In Stock, Qty 10

0

110

Cub Cadet 951-11499

OIL SEAL 35×52×7
(Superseded to 951-11499A)

$12.99

$

In Stock, only 4 left!

0

111

Cub Cadet 951-11350

OIL DRAIN PIPE

$8.49

$

Usually ships in 3-6 days

0

112

Cub Cadet 736-04440

WASHER 10×16×1.5
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

113

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.49

$

In Stock, Qty 6

0

Cub Cadet 952Z490-WUA

COMPLETE ENGINE
(Superseded to 952Z690-WUA)

Note: (not shown)

$

$

Not available
