4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Motion Control Group (5300615MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

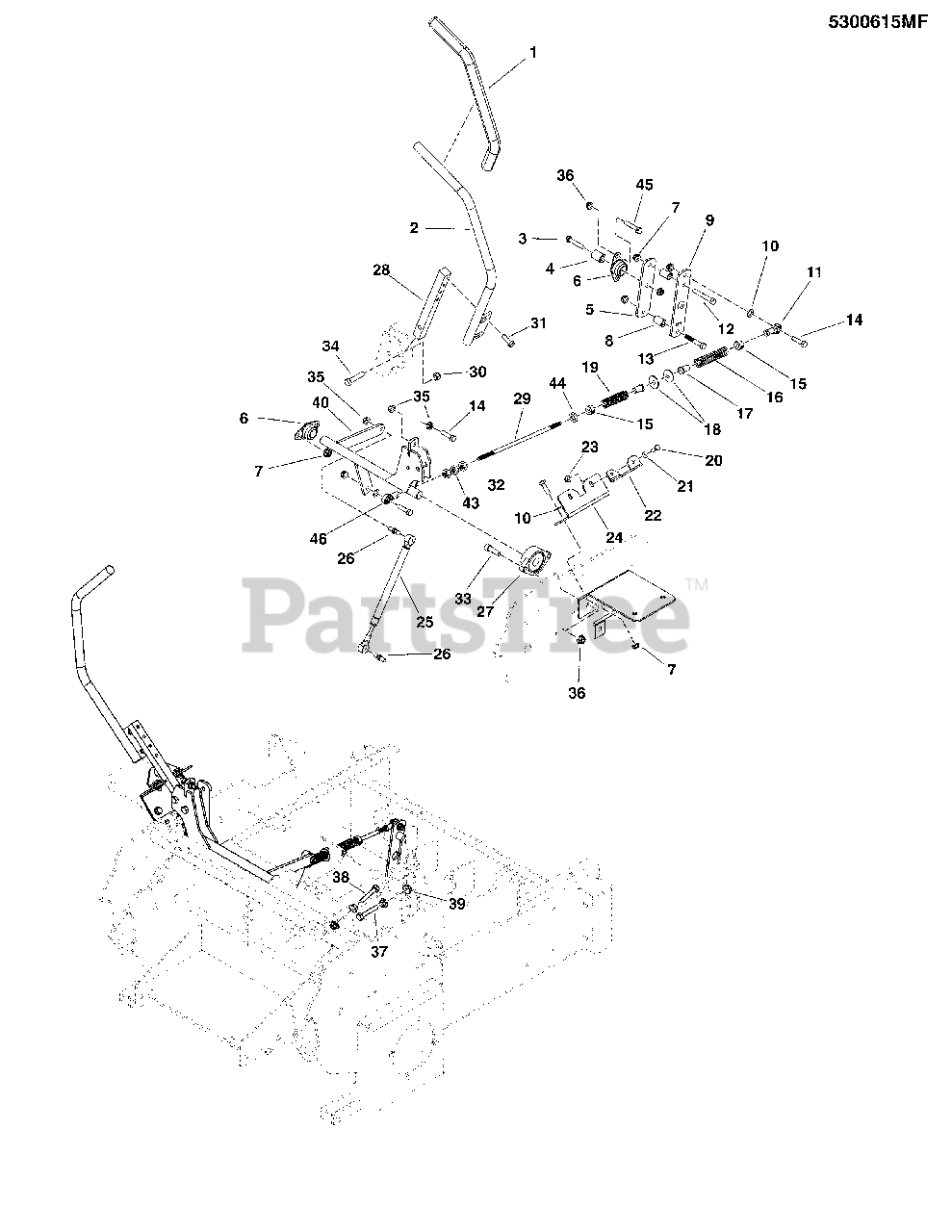

Motion Control Group (5300615MF) Parts Diagram

  • Title

1

Simplicity 5022068SM

GRIP, FOAM, 3/4 ID, 16 LONG

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 5404077DYP

WELD, HANDLEBAR - LH - RED

$60.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5042134SM

SPACER, .32 X .75 X 1.06

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 5403189DYP

BAR, PUMP LINK - INNER - RED

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$13.99

$

In Stock, Qty 10

0

7

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 12

0

8

Simplicity 5101260YP

SPACER, .33 X .63 X 1.00, YZ

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 5403188DYP

BAR, PUMP LINK - OUTER - RED

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5104494YP

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE

$18.99

$

In Stock, only 1 left!

0

12

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5025011X16YP

BOLT, 5/16-18 X 2, GD5

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

15

Simplicity 5020047SM

COLLAR, 5/16 SET

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 5022645SM

SPRING, REVERSE RETURN

$9.49

$

Usually ships in 2-12 days

0

17

Simplicity 5023260SM

BUSHING, NYLON

$6.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025164SM

WASHER, 5/16 FENDER

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 5021102SM

SPRING, COMPRESSION

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 18

0

22

Simplicity 5403486DYP

BRACKET, SWITCH MOUNT - RED

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 5403180DYP

PLATE, NEUTRAL LOCK - RED

$14.99

$

Usually ships in 2-12 days

0

25

Simplicity 5100940SM

DAMPENER, CONTROL,#(P6709/P3610)

$55.99

$

In Stock, only 2 left!

0

26

Simplicity 5100941SM

BALL STUD, 5/16 X .50,# PC-477-2)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

28

Simplicity 5047004AYP

MOUNT, CONTROL ARM - BLK

$37.99

$

Usually ships in 2-12 days

0

29

Simplicity 5101381YP

ROD, HYDRO CONTROL, OUTFRONT

$14.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 6

0

31

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

33

Simplicity 5025327SM

BOLT, 3/8-16 X 1-1/4 SHCS

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, Qty 9

0

35

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

$3.49

$

In Stock, Qty 11

0

36

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 5025055X12SM

BOLT, 5/16-18 X 1-1/2 GD5 TFL

$3.99

$

In Stock, only 1 left!

0

38

Simplicity 5025055X14SM

BOLT- 5/16-18 X 1-3/4 GD5 TFL

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

40

Simplicity 5403214DYP

WELD, MOTION CONTROL SHAFT - LH - RED

$73.99

$

Usually ships in 2-12 days

0

41

Simplicity 5404076DYP

WELD, HANDLEBAR - RH - RED

Note: (NOT SHOWN)

$50.99

$

Usually ships in 2-12 days

0

42

Simplicity 5403251DYP

WELD, MOTION CONTROL SHAFT - RH - RED

Note: (NOT SHOWN)

$73.99

$

Usually ships in 2-12 days

0

43

Simplicity 5025033SM

NUT, 5/16-24 HEX
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

44

Simplicity 5023212SM

NUT, 5/16-24 HEX, LH

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

46

Simplicity 5104493YP

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE

$18.99

$

In Stock, only 1 left!

0
