4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Parking Brake Group (5300616MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

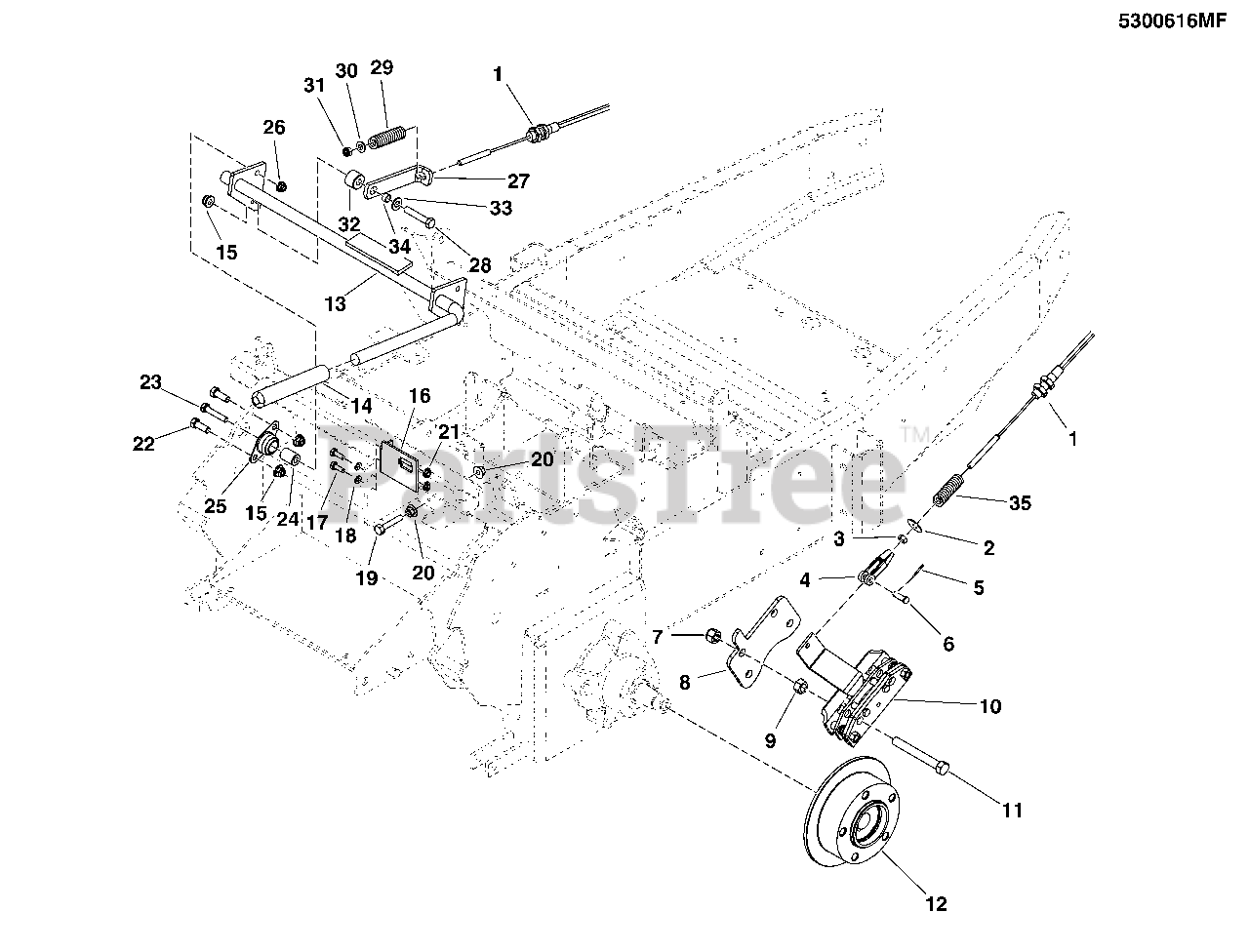

Parking Brake Group (5300616MF) Parts Diagram

  • Title

1

Simplicity 5100115SM

CABLE, PARKING BRAKE IS2000

$101.99

$

In Stock, only 1 left!

0

2

Simplicity 5025164SM

WASHER, 5/16 FENDER

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 5025033SM

NUT, 5/16-24 HEX
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

4

Simplicity 5023323SM

CLEVIS, 5/16-24, STEEL, CLEAR ZINC

$9.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025201X6SM

PIN, COTTER, 3/32 X 3/4
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

6

Simplicity 5025213X8SM

PIN-CLEVIS, 5/16 X 1 YZ

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 5

0

8

Simplicity 5402775DYP

MOUNT, BRAKE CALIPER - RED

$18.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025038SM

NUT, 1/2-13 HEX

$

$

Not available

10

Simplicity 5100774YP

COMPACT CALIPER, AUSCO (86978)

$197.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025017X32YP

BOLT, 1/2-13 X 4 GD5 YZ

$6.49

$

In Stock, only 3 left!

0

12

Simplicity 5100775YP

WHEEL HUB, COMPACT CALIPER (86720)

$308.99

$

Usually ships in 2-12 days

0

13

Simplicity 5403154DYP

WELD, BRAKE SHAFT - RED

$270.99

$

Usually ships in 2-12 days

0

14

Simplicity 5101038SM

GRIP, FOAM, 3/4 ID X 6 X .187

$7.99

$

In Stock, only 1 left!

0

15

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5404327DYP

BRACKET, SWITCH MOUNT - RED

$11.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 5025055X14SM

BOLT- 5/16-18 X 1-3/4 GD5 TFL

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 7

0

21

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

22

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

23

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

In Stock, Qty 17

0

24

Simplicity 5042134SM

SPACER, .32 X .75 X 1.06

$6.99

$

In Stock, only 3 left!

0

25

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$14.99

$

In Stock, only 3 left!

0

26

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 5047084AYP

LINK, BRAKE LOCK - BLK

$22.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5048719SM

SPRING-COMP, .75 X .162 X 2.5

$10.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

31

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 17

0

32

Simplicity 5043815YP

SPACER, .39 X 1.00 X .75

$11.99

$

In Stock, only 1 left!

0

33

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 5041930SM

SPACER, .38 X .50 X .27

$4.99

$

In Stock, only 2 left!

0

35

Simplicity 5021494SM

SPRING, COMPRESSION, 5-1/2

$14.99

$

Usually ships in 2-12 days

0
