4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Tail Wheel Mount Group (5300617MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

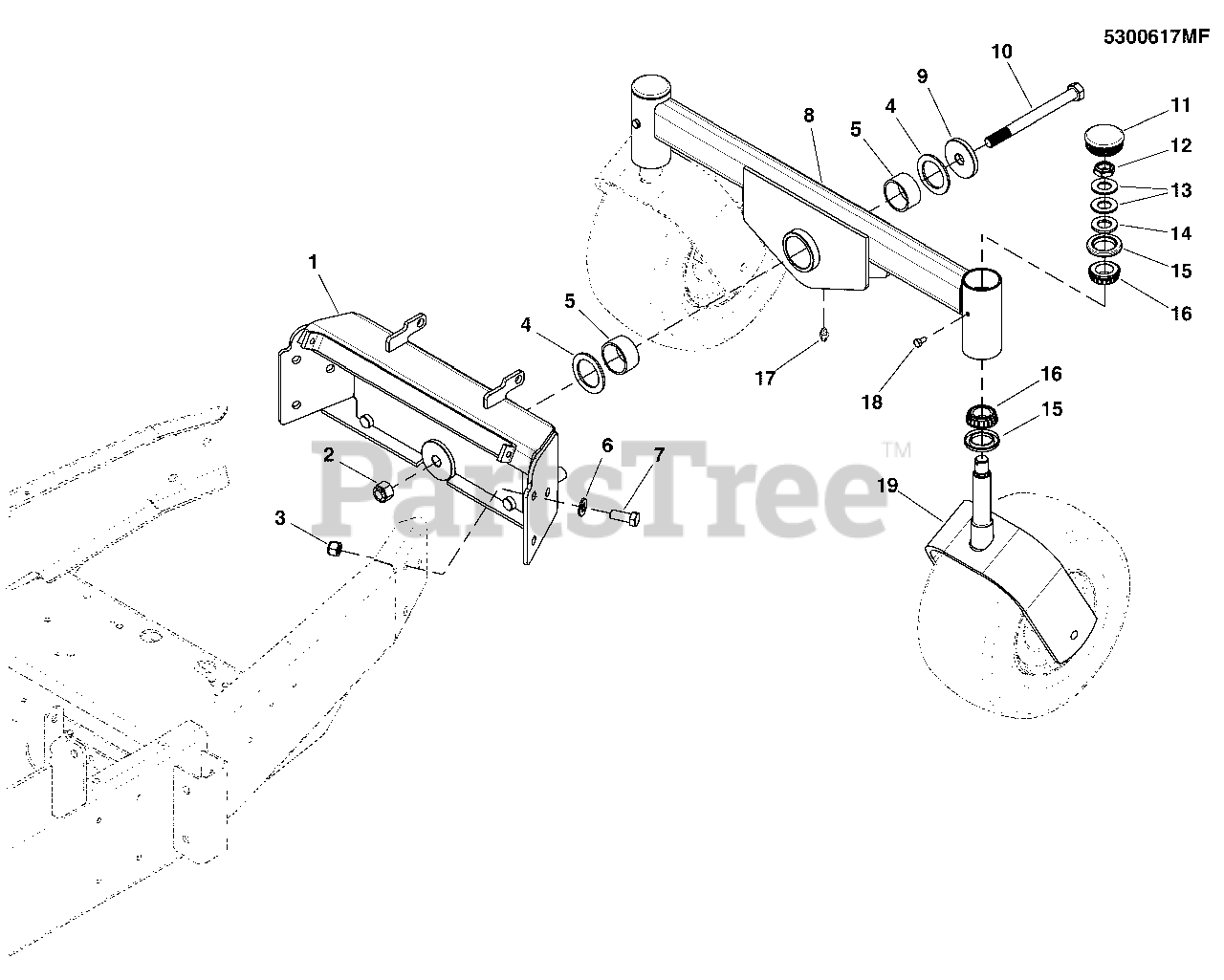

Tail Wheel Mount Group (5300617MF) Parts Diagram

  • Title

1

Simplicity 5403254DYP

WELD, TAIL WHEEL MOUNT - RED

Note: (GAS MODELS)

$455.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025403YP

NUT, 5/8-11 HEX NYLON LOCK

$6.99

$

In Stock, only 4 left!

0

3

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 5101184YP

THRUST WASHER 1-3/4 X 2-1/2 X 1/8

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 5101183YP

BUSHING, 1-3/4 X 2 X 1

$25.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 6

0

7

Simplicity 5025018X10SM

BOLT, 1/2-20 X 1-1/4 GD5 YZ

$2.99

$

Usually ships in 2-12 days

0

8

Simplicity 5600299YP

ASSM, TAIL WHEEL MOUNT - S800X

Note: (Includes Ref Nos 5 & 17.)

$407.99

$

Usually ships in 2-12 days

0

9

Simplicity 5100818YP

WASHER, .656 X 2.44 X .31, YZ

$22.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025019X56YP

BOLT, HEX HD, 5/8-11 X 7 GD5 YZ

$15.99

$

Usually ships in 2-12 days

0

11

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

In Stock, Qty 12

0

12

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, only 1 left!

0

13

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

In Stock, only 1 left!

0

14

Simplicity 5025160SM

WASHER, 3/4 SAE

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

In Stock, only 1 left!

0

16

Simplicity 5020884SM

BEARING, TAPERED ROLLER, 1

$25.99

$

Usually ships in 2-12 days

0

17

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5411934DYP

WELD, CASTER YOKE - RED

$

$

Not available
