4900 (5901337) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Wheel & Tire Group (5300618MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

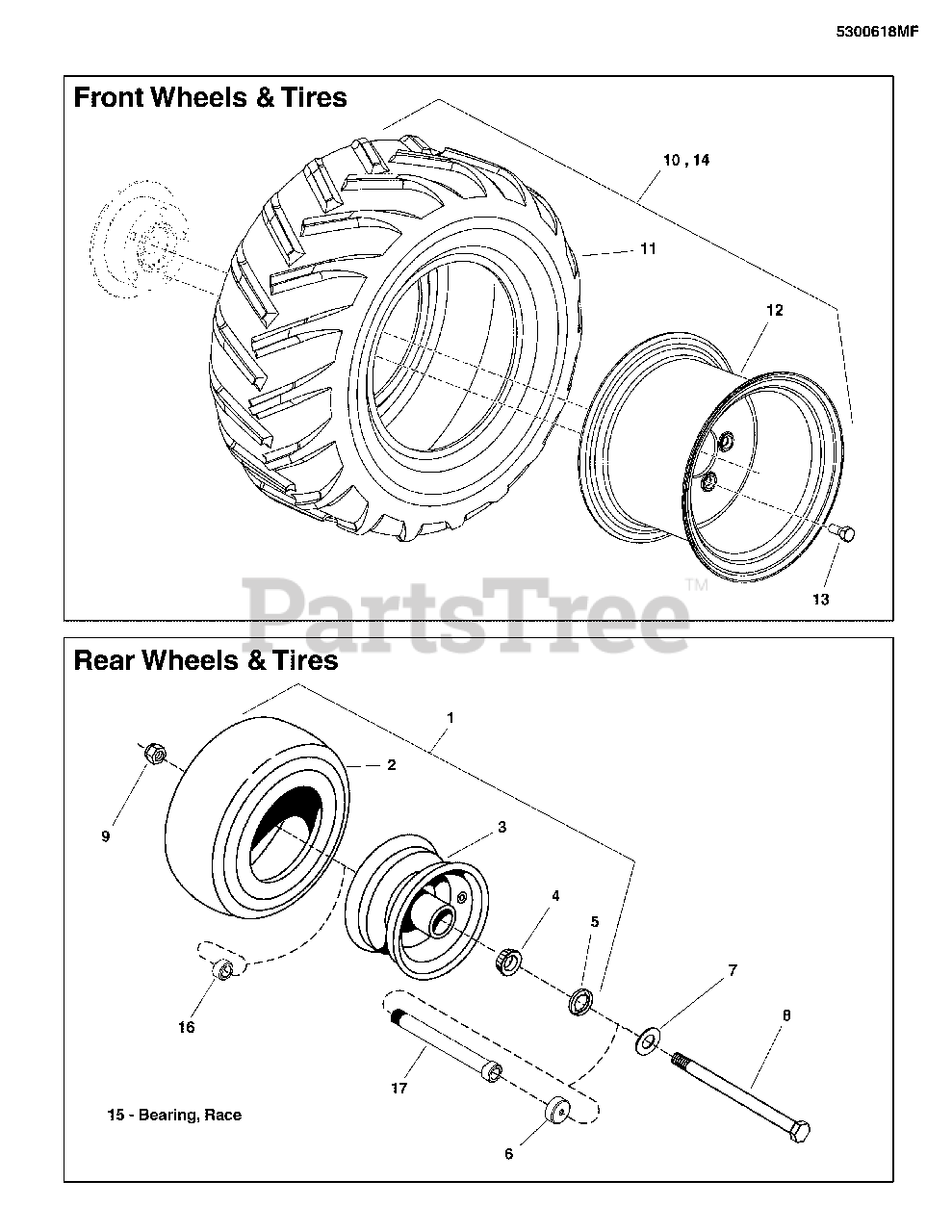

Wheel & Tire Group (5300618MF) Parts Diagram

  • Title

1

Simplicity 5023136YP

TIRE ASSY, 13 X 6.5 SILVER

Note: (INCLUDES P/N 2-5)

$198.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022577YP

TIRE, FRONT

$70.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023136X1YP

WHEEL ASSEMBLY

$195.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

$12.99

$

In Stock, only 1 left!

0

5

Simplicity 5022631SX3SM

SEAL, GREASE

$9.99

$

In Stock, only 1 left!

0

6

Simplicity 5103594YP

DEBRIS COVER, CASTER WHEELS

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 6

0

8

Simplicity 5025017X72YP

BOLT, 1/2-13 X 9 GD5 YZ

$11.99

$

In Stock, only 2 left!

0

9

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

10

Simplicity 5100752YP

TIRE, ASSM, 24 X 12 X 12, CHEVRON, LH

Note: (INCLUDES 11 & 12)

$477.99

$

Usually ships in 2-12 days

0

11

Simplicity 5100751X1YP

TIRE, 24 X 12.00 - NHS, CHEVRON

$455.99

$

Usually ships in 2-12 days

0

12

Simplicity 5101614X1YP

WHEEL, 12 X 9.5, 5/4.5 BC, -1.81

$230.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022215SM

BOLT, WHEEL LUG, 1/2 X 1-5/8

$9.99

$

In Stock, only 1 left!

0

14

Simplicity 5100751YP

TIRE, ASSM, 24 X 12 X 12, CHEVRON, RH

Note: (NOT SHOWN)

$494.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022631SX4SM

BEARING, RACE

Note: (SV)

$10.99

$

In Stock, only 3 left!

0

16

Simplicity 5103650YP

NUT, BEARING ADJUSTER, AXLE

$16.99

$

In Stock, only 1 left!

0

17

Simplicity 5103649YP

BEARING ADJUSTER, SPACER, 7.062LG

$23.99

$

In Stock, only 2 left!

0
