4900 (5901530) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Hydraulic Group (5300611MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

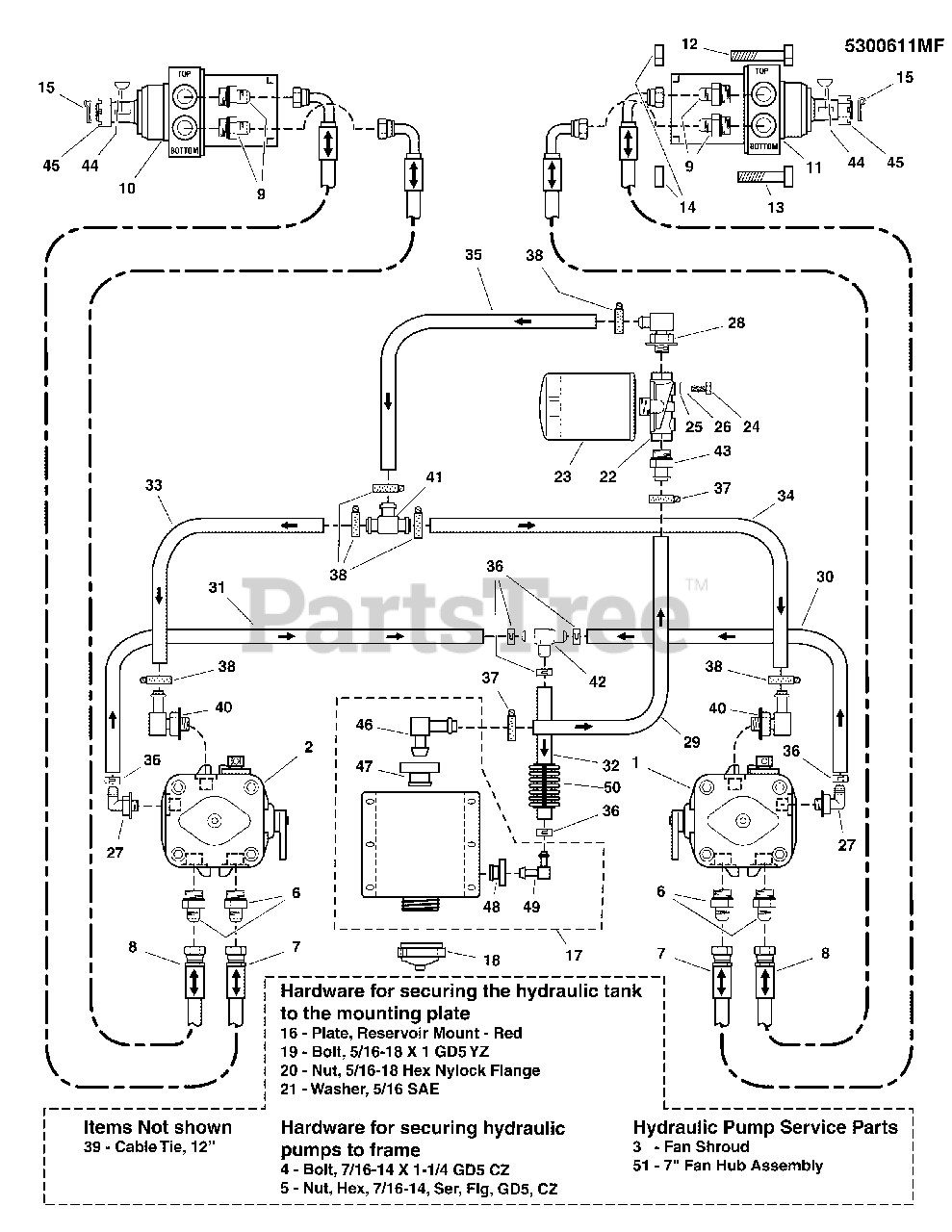

Hydraulic Group (5300611MF) Parts Diagram

  • Title

1

Simplicity 5101688YP

PUMP, 16CC, PR-2KBQ-GV1F-XXXX

$1161.99

$

Usually ships in 2-12 days

0

2

Simplicity 5101687YP

PUMP, 16CC, PR-2HBQ-GV1F-XXXX

$1161.99

$

Usually ships in 2-12 days

0

3

Simplicity 5100162SM

FAN SHROUD

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025015X10YP

BOLT, 7/16-14 X 1-1/4 GD5 YZ

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 703339

NUT, Hex Flange, Whiz Lock 7/16-14

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022633SM

FITTING, Hydraulic, O-Ring Adapter

$12.99

$

In Stock, only 2 left!

0

7

Simplicity 5022887SM

HOSE ASSEMBLY (33)
(Superseded to 5102096YP)

$160.99

$

Usually ships in 2-12 days

0

8

Simplicity 5102110YP

HOSE ASSEMBLY (29)

$142.99

$

In Stock, only 2 left!

0

9

Simplicity 5022634SM

FITTING, Hydraulic, O-Ring Adapter

$15.99

$

In Stock, only 3 left!

0

10

Simplicity 5102637YP

WHEEL MOTOR, LH, 17.1 CI

$1067.99

$

Usually ships in 2-12 days

0

11

Simplicity 5102636YP

WHEEL MOTOR, RH, 17.1 CI

$995.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025475YP

BOLT, 1/2-13 X 2-1/2, NYLON PATCH

$6.99

$

Usually ships in 2-12 days

0

13

Simplicity 5023481SM

BOLT, 1/2-13 X 2-1/4 PATCH

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025330SM

NUT, 1/2-13 SQUARE

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025203X10SM

PIN, COTTER, 1/8" X 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5403636DYP

PLATE, RESERVOIR MOUNT - RED

$45.99

$

Usually ships in 2-12 days

0

17

Simplicity 5061712SM

HYDRAULIC OIL RESERVOIR, Complete (Includes Ref No. 3 - 6)

$154.99

$

In Stock, Qty 5

0

18

Simplicity 5100017SM

CAP, HYDRAULIC, SHIELDED VENT

$23.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

20

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 13

0

21

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5023096SM

FILTER HEAD, HYDRAULIC

$52.99

$

Usually ships in 2-12 days

0

23

Simplicity 1719168YP

FILTER, OIL

$26.99

$

In Stock, Qty 15

0

24

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 703332

WASHER, 1/4, Flat, GR5 Zinc/Clear

Note: (5025154)

$4.49

$

In Stock, Qty 18

0

26

Simplicity 5025169SM

LOCKWASHER, 1/4, Black
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

27

Simplicity 5023267SM

ADAPTER, 90 DEG. 9/16 - 3/8 BARB

$30.99

$

Usually ships in 2-12 days

0

28

Simplicity 5100370YP

FITTING, 9/16 O-Ring, 1/2" HOSE, 90 DEG

$18.99

$

Usually ships in 2-12 days

0

29

Simplicity 5050933X22YP

HOSE, 5/8, PUSH-LOCK, 22.00

Note: (Cut to fit - 18")

$37.99

$

Usually ships in 2-12 days

0

30

Simplicity 5050860X22YP

HOSE, 3/8" PUSH-LOCK, 22.00"

Note: (Cut to fit - 11")

$

$

Not available

31

Simplicity 5050860X30YP

HOSE, 3/8" PUSH-LOCK, 30"

$30.99

$

Usually ships in 2-12 days

0

32

Simplicity 5050860X30YP

HOSE, 3/8" PUSH-LOCK, 30"

Note: (Cut to fit - 28")

$30.99

$

Usually ships in 2-12 days

0

33

Simplicity 5050857X28YP

HOSE, 1/2" PUSH-ON, 28.00"

Note: (Cut to fit - 27")

$34.99

$

Usually ships in 2-12 days

0

34

Simplicity 5050857X13SM

HOSE, 1/2" PUSH-ON, 13.00"

Note: (Cut to fit - 12")

$8.49

$

Usually ships in 2-12 days

0

35

Simplicity 5050857X7YP

HOSE, 1/2" PUSH-ON, 7.00"

Note: (Cut to fit - 5.5")

$8.99

$

Usually ships in 2-12 days

0

36

Simplicity 5023268SM

CLAMP, HOSE

$3.49

$

In Stock, only 2 left!

0

37

Simplicity 5021164SM

CLAMP, #10 HOSE, STAINLESS

$3.99

$

In Stock, only 2 left!

0

38

Simplicity 5021392SM

CLAMP, #6 HOSE, STAINLESS

$4.99

$

Usually ships in 2-12 days

0

39

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

40

Simplicity 5102498YP

FITTING, EXTRA LG, 90, 1/2 TUBE - 3/4-16

$47.99

$

Usually ships in 2-12 days

0

41

Simplicity 5101693YP

FITTING, BEADED TEE, 1/2 X 1/2 X 1/2, YZ

$21.99

$

Usually ships in 2-12 days

0

42

Simplicity 5022920SM

FITTING, TEE, 1/2" HOSE

$18.99

$

Usually ships in 2-12 days

0

43

Simplicity 5100678YP

FITTING, STRAIGHT, HYD #12618

$17.99

$

Usually ships in 2-12 days

0

44

Simplicity 5022042X2SM

KEY (SV)

$10.99

$

In Stock, only 1 left!

0

45

Simplicity 5022042X3SM

NUT, CASTLE, 1-20 (SV)

$34.99

$

Usually ships in 2-12 days

0

46

Simplicity 5023119SM

FITTING, ELBOW, 5/8 (SV)

$26.99

$

Usually ships in 2-12 days

0

47

Simplicity 5023121SM

GROMMET (SV)

$15.99

$

In Stock, only 3 left!

0

48

Simplicity 1726400SM

BUSHING
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

49

Simplicity 5023118SM

FITTING, ELBOW, 3/8 (SV)

$7.99

$

Usually ships in 2-12 days

0

50

Simplicity 5050861X6YP

WIRE LOOM, 5/8 ID, 6" LONG

$6.49

$

In Stock, only 1 left!

0

51

Simplicity 5022571X1SM

7" FAN HUB ASSEMBLY, HYDROGEAR #70811
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0
