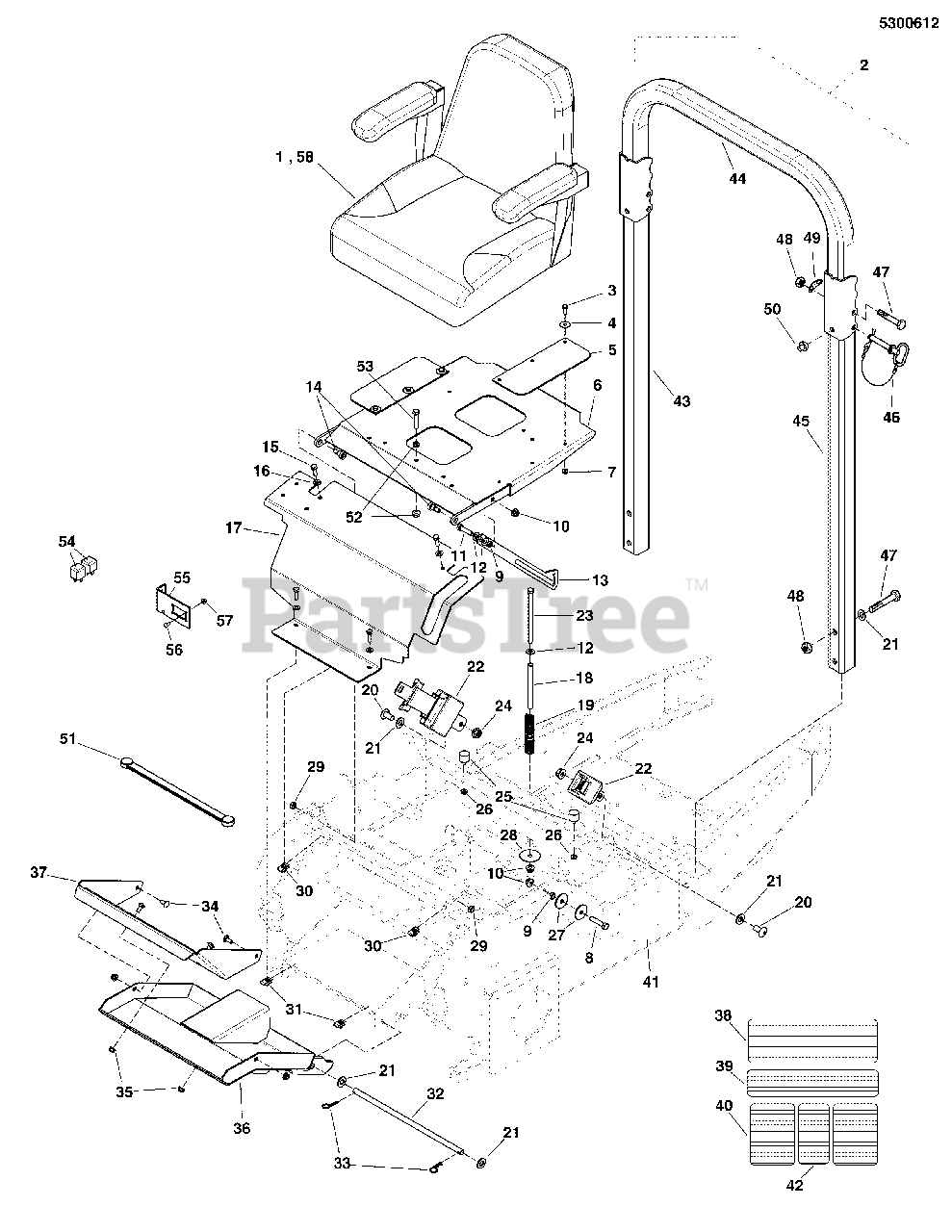

4900 (5901530) - Massey Ferguson Zero-Turn Mower, Briggs & Stratton Main Frame & Operator Compartment Group (5300612MF) Parts Diagram

Zero-Turn Mower, Briggs & Stratton

Main Frame & Operator Compartment Group (5300612MF) Parts Diagram

  • Title

1

Simplicity 5103354YP

SEAT, 2012
(Superseded to 5104681YP)

Note: (S/N: 2017192382 & Below)

$731.99

$

Usually ships in 2-12 days

0

2

ROPS (Call 1-800-933-6175 x708 if replacing a ROPS)

Note: (Includes P/N 43-50)

$

$

Not available

3

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, Qty 6

0

5

Simplicity 5100389YP

PLATE, SEAT, RUBBER FLAP

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 5409286DYP

WELD, SEAT MOUNT - RED

$

$

Not available

7

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE

Note: (5025391)

$4.49

$

In Stock, Qty 5

0

8

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, Qty 9

0

9

Simplicity 5025084SM

NUT, 3/8-16 HEX JAM

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5403792DYP

BAR, SEAT PROP - RED

$21.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025356SM

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER

$6.99

$

In Stock, Qty 6

0

15

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5407565DYP

PLATE, FRONT COVER - RED

$182.99

$

Usually ships in 2-12 days

0

18

Simplicity 5046586SM

SPACER, .38 X .50 X 5.06

$12.99

$

In Stock, only 4 left!

0

19

Simplicity 5022798SM

SPRING, COMP, .835 X.105 X4.26

$20.99

$

Usually ships in 2-12 days

0

20

Simplicity 5100267SM

SCREW, 1/2-13 X 1.00, SHCS

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 5

0

22

Simplicity 5100139SM

SEAT BELT, RETRACTING - ASSM

$103.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X48SM

BOLT, 3/8-16 X 6 GD5 YZ

$5.99

$

In Stock, only 1 left!

0

24

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

25

Simplicity 197546GS

MNT, VBRTN, RBBR

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

27

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

In Stock, only 1 left!

0

28

Simplicity 5025326SM

WASHER, .39 X 2.00 X X .14

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025452YP

BODY CLIP, 5/16-18 -1/4 MATERIAL

$5.49

$

Usually ships in 2-12 days

0

31

Simplicity 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 5101690YP

ROD, HINGE, 1/2 X 14.25, YZ

$19.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, only 3 left!

0

34

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 14

0

36

Simplicity 5403218DYP

WELD, FLOOR PLATE - RED

$231.99

$

Usually ships in 2-12 days

0

37

Simplicity 5403910DYP

PLATE, UPPER FLOOR

$84.99

$

Usually ships in 2-12 days

0

38

Simplicity 5101567YP

SAFETY WALK, 5.13 X 15.25

$13.99

$

Usually ships in 2-12 days

0

39

Simplicity 5101565YP

SAFETY WALK, 3.13 X 15.5

$11.99

$

Usually ships in 2-12 days

0

40

Simplicity 5101564YP

SAFETY WALK, 7.25 X 5.25

$11.99

$

Usually ships in 2-12 days

0

41

WELD, MAIN FRAME, S800X - RED

$

$

Not available

42

Simplicity 5101566YP

SAFETY WALK, 7.13 X 3.63

$9.99

$

Usually ships in 2-12 days

0

43

ROLL BAR POST, RH

$

$

Not available

44

ROLL BAR, TOP LOOP

$

$

Not available

45

ROLL BAR POST, LH

$

$

Not available

46

Simplicity 5100013SM

PIN, HITCH, .50 X 3.25 W/ LAY

Note: (Included In Hardware Bag)

$35.99

$

Usually ships in 2-12 days

0

47

Simplicity 5025294X28YP

BOLT, 1/2-13 X 3-1/2, ALLEN HEAD, YZ

Note: (Included In Hardware Bag)

$1.99

$

Usually ships in 2-12 days

0

48

Simplicity 5025056SM

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 7091325YP)

Note: (Included In Hardware Bag)

$4.99

$

In Stock, Qty 13

0

49

LANYARD HOLDER

Note: (Included In Hardware Bag)

$

$

Not available

50

Simplicity 5100383SM

BUMPER, ROPS

Note: (Included In Hardware Bag)

$3.99

$

In Stock, only 2 left!

0

51

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

52

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

53

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 CZ

$4.49

$

In Stock, Qty 6

0

54

Simplicity 5021766SM

RELAY, 12V, 40A

$24.99

$

Usually ships in 2-12 days

0

55

Simplicity 5406124DYP

BRACKET, RELAY MOUNT

$13.99

$

Usually ships in 2-12 days

0

56

Simplicity 5025338X5YP

SCREW,#8-32 X 5/8 PHILLIPS, PAN HEAD, ZP

$3.49

$

Usually ships in 2-12 days

0

57

Simplicity 5025339YP

NUT, #8-32 HEX NYLON LOCK

$2.99

$

Usually ships in 2-12 days

0

58

Simplicity 5104681YP

SEAT, CI3, SEAT'S INC. 2016

Note: (S/N: 2017192383 & Above)

$731.99

$

Usually ships in 2-12 days

0
