49136 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) DIRECTION CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler

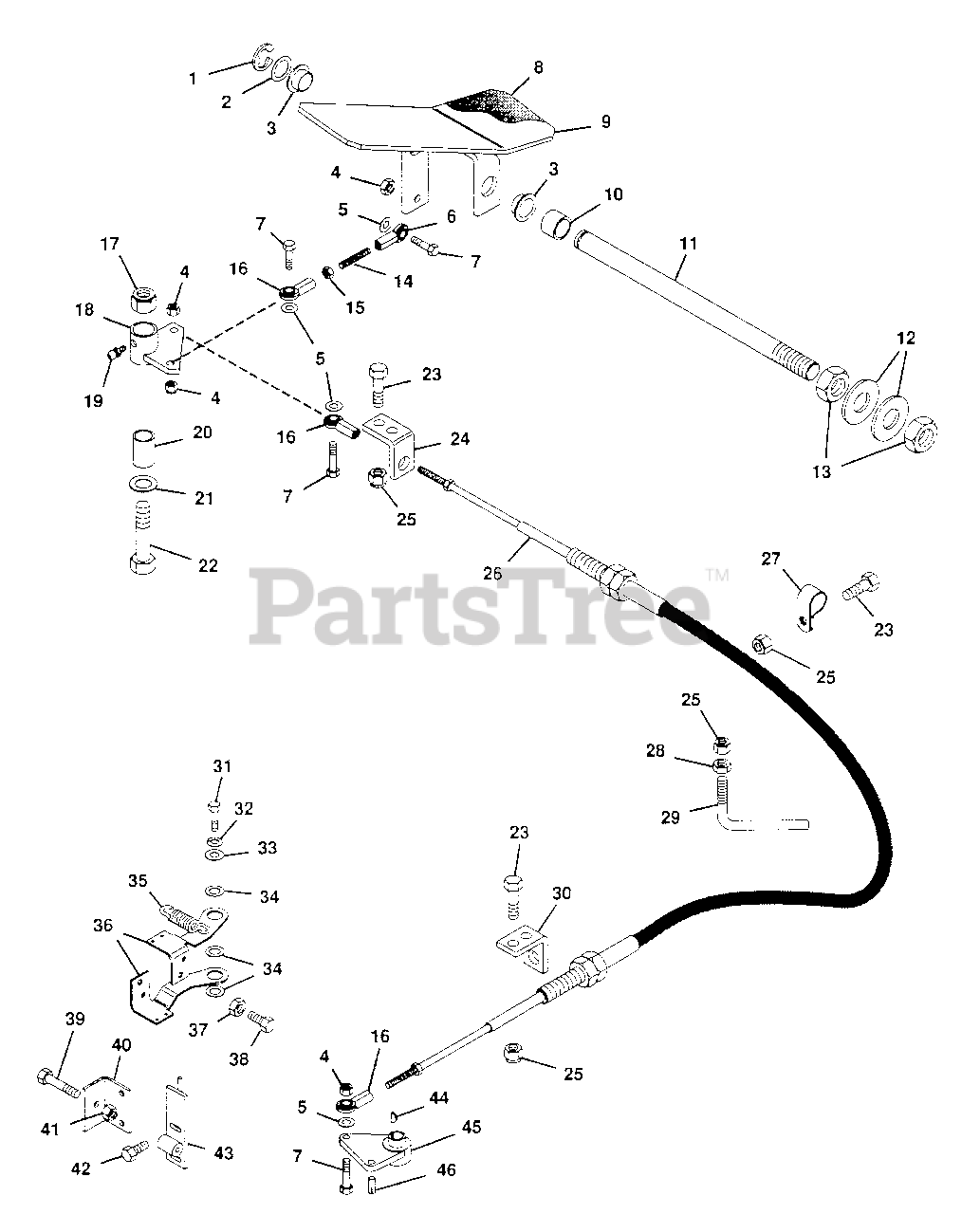

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 011270

E-RING, .750 SHAFT
(Superseded to 05707400)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 011223

RACE, BEARING THRUST
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

3

Gravely 010174

BUSH., FLG. .764X1.47X.560 NY.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

5

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

6

Gravely 047065

ROD END, L.H.
(Superseded to 08980300)

$

$

Not available

7

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

8

Gravely 046185

COVER, PEDAL
(Superseded to 08973100)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 051300

WELDMENT, PEDAL
(Superseded to 09021700)

$

$

Not available

10

Gravely 044600

BUSH., ST. .782X1.00X.710 STL.
(Superseded to 08905600)

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 045189

SHAFT, PEDAL
(Superseded to 08965900)

$

$

Not available

12

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 15

0

13

Gravely 219758

NUT, JAM 3/4-16 HEX
(Superseded to 06539900)

$3.49

$

In Stock, only 2 left!

0

14

Gravely 047066

ROD
(Superseded to 09030000)

$

$

Not available

15

Gravely 120613

NUT, JAM 1/4-28 HEX
(Superseded to 06540000)

$

$

Not available

16

Gravely 045808

ROD END, FEMALE 1/4-28
(Superseded to 08971800)

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 046168

WELDMENT, LEVER
(Superseded to 08974400)

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

20

Gravely 045245

BUSH., ST. .562X.855X1.56 STL.
(Superseded to 08986400)

$

$

Not available

21

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 13

0

22

Gravely 180185

BOLT, HEX 1/2-13X2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 044983

BRACKET, CABLE
(Superseded to 08960200)

$

$

Not available

25

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

26

Gravely 045980

CABLE, FWD-REV
(Superseded to 09086800)

$

$

Not available

27

Gravely 050394

CLAMP, STEEL .625
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

29

Gravely 045068

ROD, CABLE GUIDE
(Superseded to 09029300)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 045039

BRACKET, CABLE
(Superseded to 08961900)

$

$

Not available

31

Gravely 180034

BOLT, HEX 1/4-20X1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

32

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

33

Gravely 012694

WASHER, FLAT .265X1.250X.063
(Superseded to 06403700)

$1.49

$

Usually ships in 4-12 days

0

34

Gravely 045248

WASHER
(Superseded to 06431600)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 015353

SPRING, EXT. .62X.75X11.8 RATE
(Superseded to 08327600)

$17.99

$

In Stock, only 2 left!

0

36

Gravely 049238

LEVER, NEUTRAL
(Superseded to 08987400)

$102.99

$

Usually ships in 4-12 days

0

37

Gravely 124920

NUT, JAM 5/16-24 HEX
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

38

Gravely 181595

BOLT, HEX 5/16-24X.75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 047479

BOLT, HEX 5/16-18X1.75
(Superseded to 05970900)

$2.99

$

Usually ships in 4-12 days

0

40

Gravely 050343

BRACKET
(Superseded to 08994900)

$

$

Not available

41

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

42

Gravely 039094

SCREW, TAPTITE 5/16-18X.75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

43

Gravely 049252

WELDMENT, NEUTRAL STOP
(Superseded to 08987600)

$

$

Not available

44

Gravely 124543

KEY, WOODRUFF .125X.50 HRD #3
(Superseded to 06608300)

$2.49

$

In Stock, Qty 5

0

45

Gravely 044936

ARM, TRANSMISSION CONTROL
(Superseded to 09008400)

$

$

Not available

46

Gravely 045241

PIN, GROOVE
(Superseded to 05805300)

$3.99

$

Usually ships in 4-12 days

0
