49144 - Gravely 32" Grass Bagger for 1100 & 1200 Series Tractor TUBE AND BOOT ASSEMBLY Parts Diagram

32" Grass Bagger for 1100 & 1200 Series Tractor

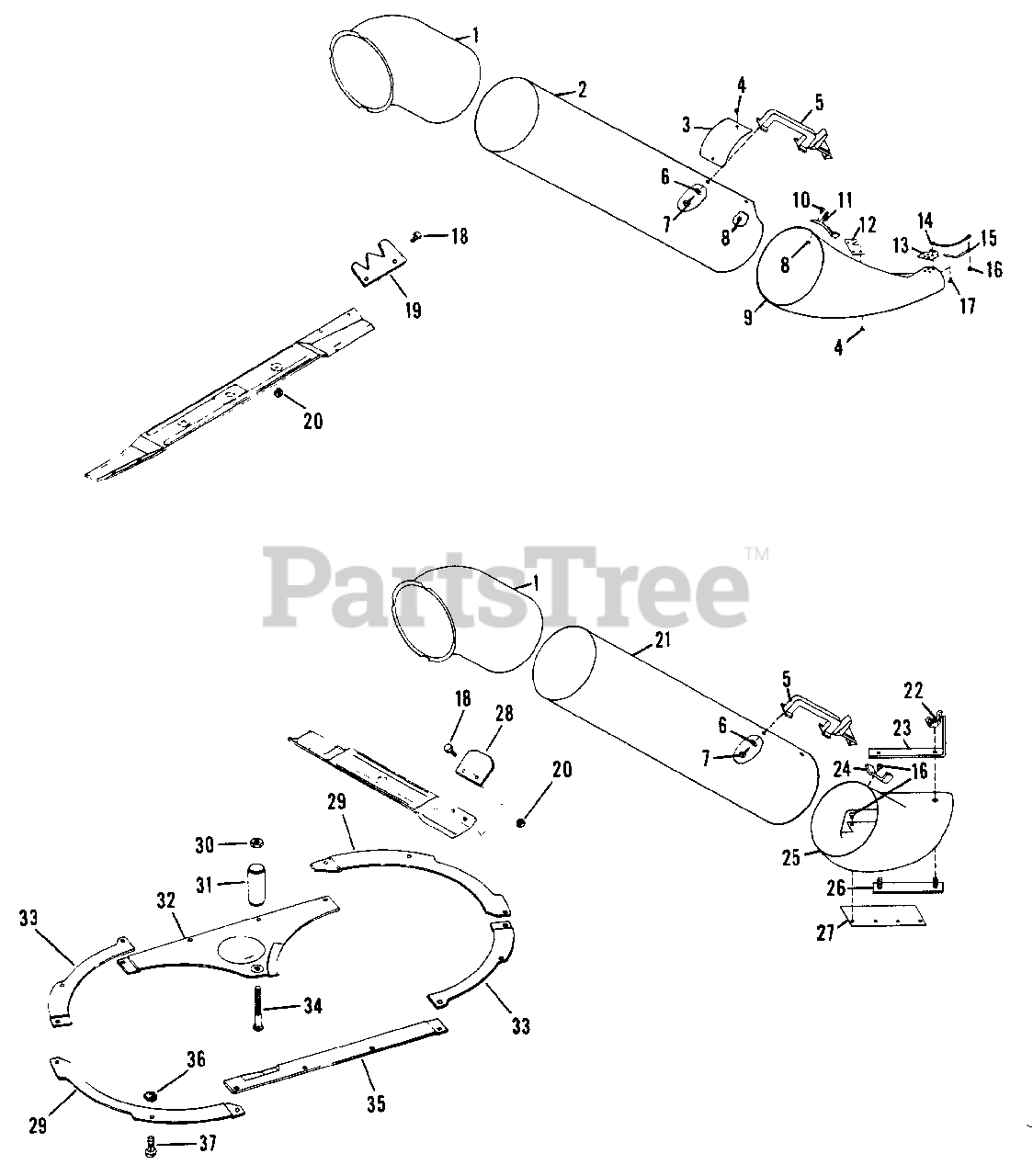

TUBE AND BOOT ASSEMBLY Parts Diagram

  • Title

1

Gravely 050373

BAGGER BOOT - UPPER
(Superseded to 03599600)

$

$

Not available

2

Gravely 050356

BAGGER TUBE - 32"
(Superseded to 53508500)

$

$

Not available

3

Gravely 050358

PLATE
(Superseded to 02752100)

$

$

Not available

4

Gravely 050367

RVT-POP.187X.277 DOME ST
(Superseded to 06803900)

$

$

Not available

5

Gravely 050359

TUBE HANDLE
(Superseded to 02746600)

$

$

Not available

6

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 050366

SCR-TAP 10-16X.75 YWZC
(Superseded to 07413600)

$

$

Not available

8

Gravely 120385

WSHR-FL-STL .188X.438X.049 PL
(Superseded to 06409200)

$

$

Not available

9

Gravely 050362

G-BOOT 32"
(Superseded to 03586100)

$

$

Not available

10

Gravely 041098

RVT-POP.187X.527 DOME ST
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 050355

TUBE RETAINER
(Superseded to 02746200)

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 050364

BOOT SUPPORT
(Superseded to 02750800)

$

$

Not available

13

Gravely 050363

BOOT BRACKET
(Superseded to 02746100)

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 050369

LANYARD
(Superseded to 02746400)

$

$

Not available

15

Gravely 050368

PULL PIN
(Superseded to 02746300)

$39.99

$

In Stock, only 2 left!

0

16

Gravely 036782

RVT-TBLR .187X.375 OH ST PL
(Superseded to 06806200)

$

$

Not available

16

Gravely 036782

RVT-TBLR .187X.375 OH ST PL
(Superseded to 06806200)

$

$

Not available

17

Gravely 026537

RVT,
(Superseded to 20453800)

$

$

Not available

18

Gravely 181595

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

18

Gravely 181595

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

19

Gravely 041087

SERVICE VANE PACKAGE
(Superseded to 52701100)

$46.99

$

Usually ships in 4-12 days

0

20

Gravely 035834

NUT-LK TOP .312-24 PL GR C
(Superseded to 06514500)

$

$

Not available

20

Gravely 035834

NUT-LK TOP .312-24 PL GR C
(Superseded to 06514500)

$

$

Not available

21

Gravely 050357

BAGGER TUBE - 32"
(Superseded to 53508500)

$

$

Not available

22

Gravely 148313

NUT-WING .312-18 YWZC
(Superseded to 06503800)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 050371

BOOT STRAP
(Superseded to 03590600)

$

$

Not available

24

Gravely 050360

TUBE RETAINER CLIP
(Superseded to 02750600)

$

$

Not available

25

Gravely 050361

G - PAN BOOT 38"
(Superseded to 03599500)

$

$

Not available

26

Gravely 050370

BOOT STRAP WELDMENT
(Superseded to 03586500)

$

$

Not available

27

Gravely 035836

EXTENSION CHUTE
(Superseded to 02532200)

$

$

Not available

28

Gravely 035832

SERVICE VANE PACKAGE
(Superseded to 53504600)

Note: (Set of 2)

$54.99

$

Usually ships in 4-12 days

0

29

Gravely 035841

FLANGE LONG CURVE
(Superseded to 03535859)

$

$

Not available

30

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

31

Gravely 035846

SPACER .600X.750X3.382
(Superseded to 03536100)

$

$

Not available

32

Gravely 035842

FLANGE REAR
(Superseded to 03535900)

$

$

Not available

33

Gravely 035840

Flange, Short Curve

$

$

Not available

34

Gravely 125720

BLT-RDHDSQNK .50-13X4.25
(Superseded to 06216300)

$

$

Not available

35

Gravely 035843

FLANGE FRONT
(Superseded to 03536000)

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 126203

BLT-RDHDSQSHK .25-20X.62 GR5 Y
(Superseded to 06213800)

$

$

Not available
