49147 - Gravely 36" Snow Blower for GEM Tractor CARRIAGE ASSEMBLY AND PTO Parts Diagram

36" Snow Blower for GEM Tractor

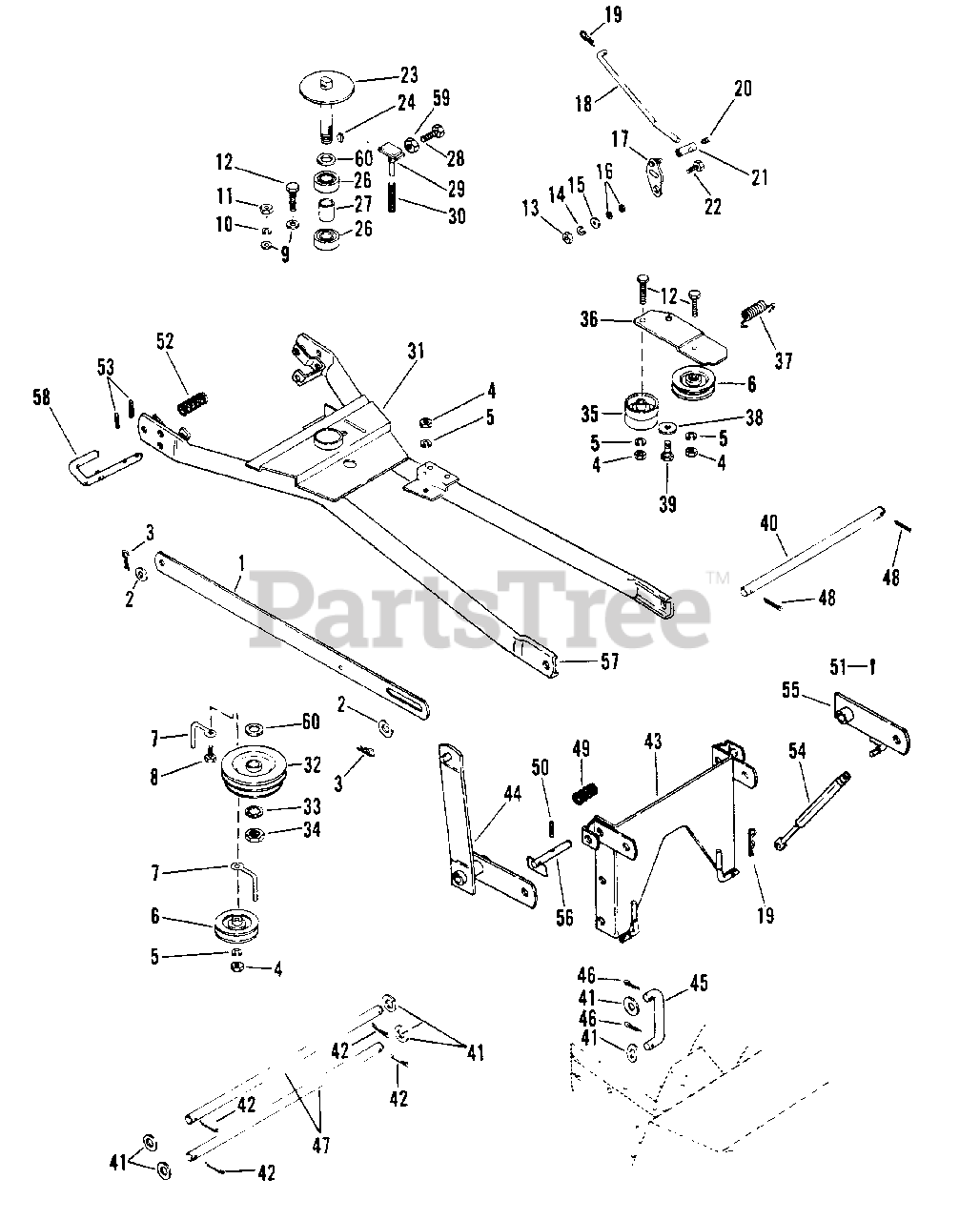

CARRIAGE ASSEMBLY AND PTO Parts Diagram

  • Title

1

Gravely 051646

LIFT STRAP
(Superseded to 03592000)

$

$

Not available

2

Gravely 120389

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

3

Gravely 010405

PIN-HAIR-INT .15X2.937 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 036256

IDLER-V 3.06 X .38
(Superseded to 07310900)

$24.99

$

In Stock, only 1 left!

0

7

Gravely 036235

BELT FINGER
(Superseded to 03175500)

$

$

Not available

8

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

11

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

12

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

14

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

15

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 446179

WSHR,FL.250X.500.049
(Superseded to 21071000)

$

$

Not available

17

Gravely 036828

BRAKE ACTUATOR
(Superseded to 03517400)

$

$

Not available

18

Gravely 036834

BRAKE ROD
(Superseded to 03517700)

$

$

Not available

19

Gravely 036185

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 102581

SCR-SET .31-18X.38 SKHCUPDL
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

21

Gravely 036835

ROD ADAPTER
(Superseded to 02213500)

$40.99

$

In Stock, only 2 left!

0

22

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

23

Gravely 036832

SPINDLE SHAFT
(Superseded to 03517800)

$

$

Not available

24

Gravely 106751

KEY-WDRF .188X.75X.313 SAE 9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 13

0

26

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

27

Gravely 036827

SPACER .765X1.000X1.252
(Superseded to 03517300)

$

$

Not available

28

Gravely 051641

SCR-SKH 10-24X1.25
(Superseded to 05930100)

$

$

Not available

29

Gravely 051647

BRAKE PLUNGER
(Superseded to 03598600)

$39.99

$

Usually ships in 4-12 days

0

30

Gravely 036830

SG-COMP ??X.44X?? WLD 10
(Superseded to 08301500)

$

$

Not available

31

Gravely 036826

SPINDLE HOUSING
(Superseded to 03517200)

$

$

Not available

32

Gravely 036833

DOUBLE SHEAVE
(Superseded to 03517900)

$

$

Not available

33

Gravely 036225

STAR WASHER
(Superseded to 03559000)

$20.99

$

Usually ships in 4-12 days

0

34

Gravely 426897

NUT-JAM .75-10 YWZC
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 036247

IDLER-FLAT 2.25 X .38
(Superseded to 07310800)

$35.99

$

In Stock, only 2 left!

0

36

Gravely 051648

IDLER ARM
(Superseded to 03589443)

$

$

Not available

37

Gravely 036907

SG-TENS .080X.73X3.06 WLD 20
(Superseded to 08318600)

$

$

Not available

38

Gravely 036840

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

39

Gravely 049109

BLT,SHLDR EP .38-16X.30 HEX YZ
(Superseded to 07000034)

$3.99

$

In Stock, Qty 17

0

40

Gravely 051651

MOUNT ROD
(Superseded to 03589500)

$

$

Not available

41

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

42

Gravely 137228

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 051653

PIVOT FRAME
(Superseded to 03589000)

$

$

Not available

44

Gravely 051654

LIFT BELLCRANK
(Superseded to 03589600)

$

$

Not available

45

Gravely 036913

LIFT LINK
(Superseded to 03519900)

$

$

Not available

46

Gravely 137185

PIN-CTR .12X1.00 EXTPRSQCT YZ
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

47

Gravely 036561

PIVOT ROD
(Superseded to 03508300)

$

$

Not available

48

Gravely 421202

PIN-ROLL .187X1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

49

Gravely 051644

SG-COMP .072X.77X1.75
(Superseded to 08326000)

$

$

Not available

50

Gravely 456542

PIN-ROLL .187X1.500
(Superseded to 05809400)

$

$

Not available

51

Gravely 121224

PIN-CTR .09X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 11

0

52

Gravely 051650

SPRG, COMP .058X.65X2.13 WLD15
(Superseded to 08325900)

$

$

Not available

53

Gravely 415236

PIN-ROLL .125X.75
(Superseded to 05803400)

$0.99

$

In Stock, Qty 12

0

54

Gravely 051649

SG-GAS COMP .315X.75X10.00 120
(Superseded to 08326100)

$

$

Not available

55

Gravely 051652

LIFT LEVER
(Superseded to 03591700)

$

$

Not available

56

Gravely 051645

HITCH PIN
(Superseded to 03592200)

$

$

Not available

57

Gravely 051643

CARRIAGE FRAME
(Superseded to 03589200)

$

$

Not available

58

Gravely 051642

LATCH PIN
(Superseded to 03584700)

$

$

Not available

59

Gravely 120361

NUT-HEX 10-24 YWZC
(Superseded to 06536600)

$0.99

$

In Stock, only 3 left!

0

60

Gravely 036918

WSHR-FL-STL .765X1.250X.062
(Superseded to 06416700)

$

$

Not available
