Short Block Assembly

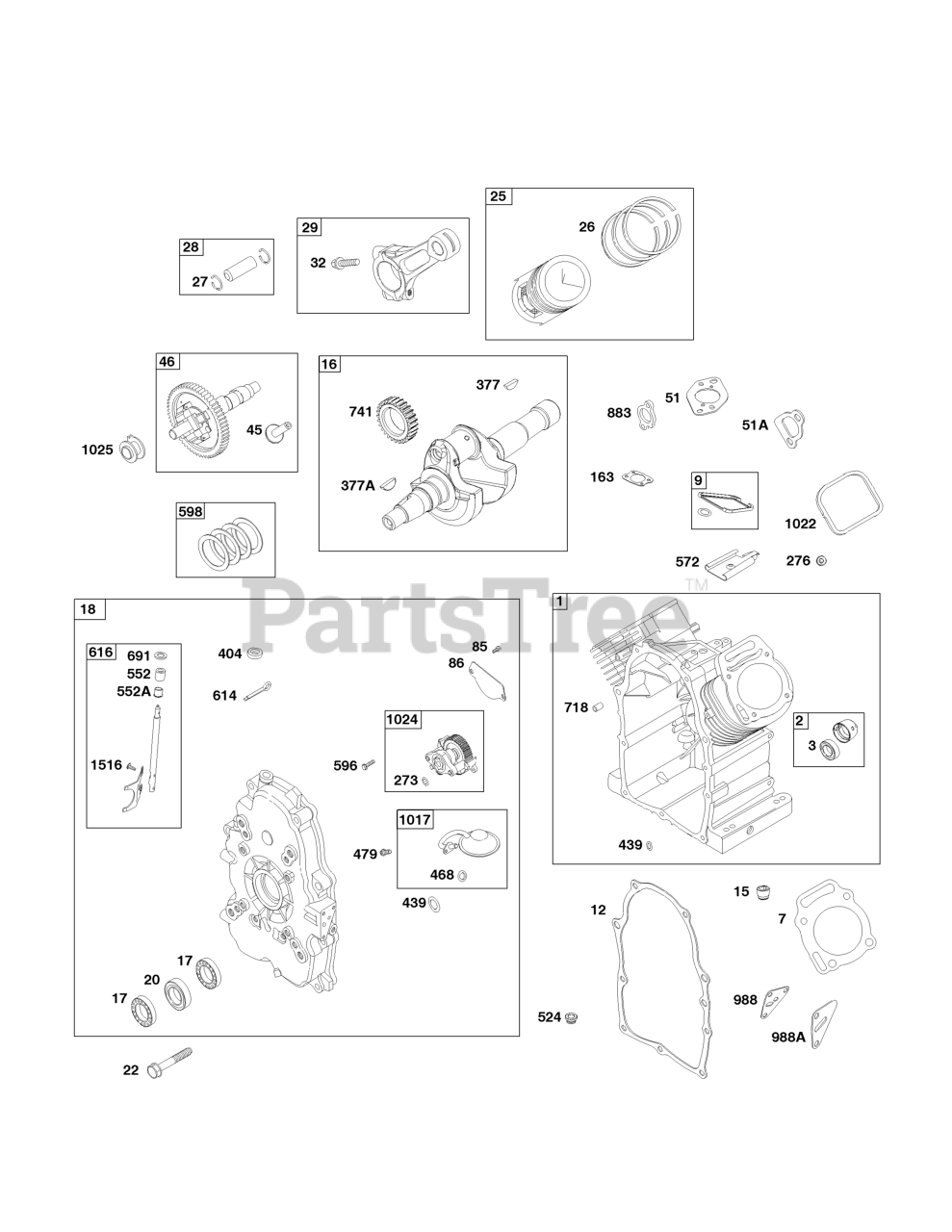

SHORT BLOCK Parts Diagram

  • Title

1

Briggs & Stratton 692178

Cylinder Assembly

$677.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$

$

Not available

3

Briggs & Stratton 805101S

Seal-Oil
(Superseded to 845659)

Note: (Magneto Side)

$13.99

$

In Stock, Qty 12

0

7

Briggs & Stratton 807986

Gasket-Cylinder Head
(Superseded to 806085S)

Note: (Metal)

$29.99

$

In Stock, Qty 11

0

7

Briggs & Stratton 806085S

Gasket-Cylinder Head

$29.99

$

In Stock, Qty 11

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 845254

Gasket-Crankcase

$47.99

$

In Stock, Qty 7

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$6.49

$

In Stock, only 3 left!

0

16

Briggs & Stratton 692161

Crankshaft
(Superseded to 84004501)

$467.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 843827

Bearing-Ball

Note: (Cylinder)

$38.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 844588

Cover-Crankcase

$247.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 843951

Piston Assembly-STD

$114.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 843958

Piston Assembly-STD

Note: (.020" Oversize)

$

$

Not available

26

Briggs & Stratton 843953

Ring Set-STD

$58.99

$

In Stock, Qty 10

0

26

Briggs & Stratton 843958

Piston Assembly-STD

Note: (.020" Oversize)

$

$

Not available

27

Briggs & Stratton 690683

Lock-Piston Pin

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844541

Pin-Piston

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900S

Rod-Connecting

$61.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.99

$

In Stock, only 3 left!

0

45

Briggs & Stratton 843379

Tappet-Valve

$10.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 845649

Camshaft

$203.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 691694

Gasket-Intake

$3.49

$

In Stock, Qty 16

0

51A

Briggs & Stratton 692035

Gasket-Intake

$3.49

$

In Stock, Qty 20+

0

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover)

$3.99

$

In Stock, Qty 14

0

86

Briggs & Stratton 690745

COVER, Gear

$6.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 17

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$6.49

$

In Stock, only 2 left!

0

276

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 14

0

377

Briggs & Stratton 808095

Key-Woodruff

$14.99

$

Usually ships in 2-12 days

0

377A

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

In Stock, only 1 left!

0

404

Briggs & Stratton 690704

Washer-Sealing

Note: (Governor Crank)

$5.99

$

In Stock, only 2 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 18

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 281370S

Seal-Dipstick Tube

$8.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 693172

Seal-Dipstick Tube

Note: (Dipstick Tube)

$5.99

$

In Stock, Qty 15

0

552

Briggs & Stratton 690701

Bushing-Governor Crank

$8.49

$

In Stock, only 2 left!

0

552A

Briggs & Stratton 806686

Bushing-Governor Crank

$8.99

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 690686

Baffle-Breather

$16.99

$

In Stock, only 1 left!

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$4.49

$

In Stock, Qty 12

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$21.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

Crank-Governor

$34.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$6.49

$

In Stock, only 2 left!

0

741

Briggs & Stratton 846085

Gear-Timing

$20.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

In Stock, Qty 14

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, Qty 14

0

988A

Briggs & Stratton 690687

Gasket-Oil Adapter

$4.49

$

In Stock, only 2 left!

0

1017

Briggs & Stratton 690900

Screen-Oil Pump

$32.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$5.49

$

In Stock, Qty 20+

0

1024

Briggs & Stratton 843825

Pump-Oil

$119.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$24.99

$

In Stock, only 2 left!

0

1516

Briggs & Stratton 846459

SCREW

Note: (Governor Crank)

$3.99

$

Usually ships in 2-12 days
