49683 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 18hp Kohler (SN: 000101 & Above) NUMBER FIFTEEN - PTO CLUTCH ASSY Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 18hp Kohler

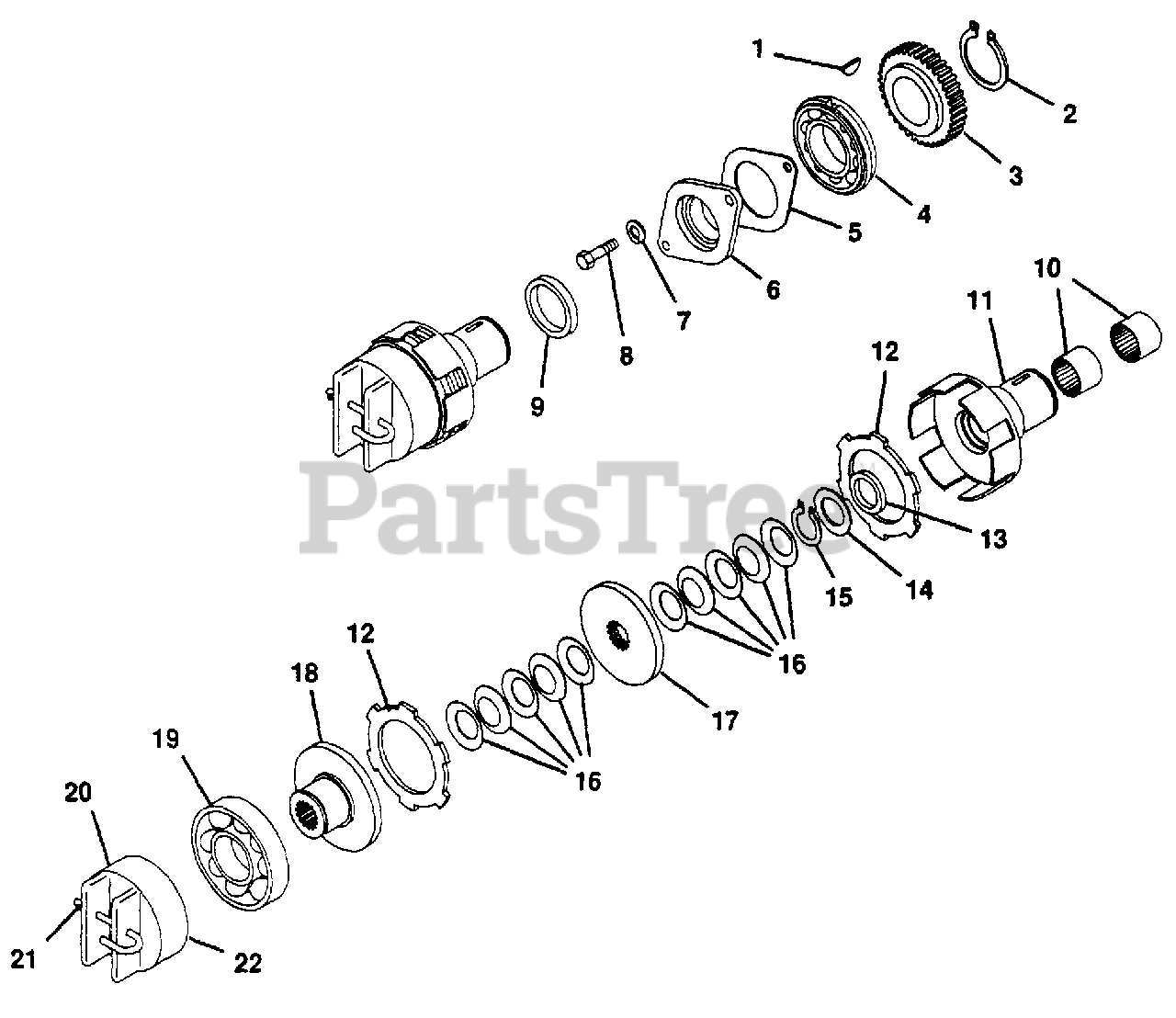

NUMBER FIFTEEN - PTO CLUTCH ASSY Parts Diagram

  • Title

1

Gravely 124553

Key, Woodruff .250x1.00 Hrd #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 017919

Ring, Retaining 1.969 Shaft
(Superseded to 05712100)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 047130

Gear, PTO Input
(Superseded to 08779500)

$

$

Not available

4

Gravely 045118

Bearing, Ball 1.968x3.149x.63
(Superseded to 05435400)

$

$

Not available

5

Gravely 021528

Gasket, Front PTO Cap
(Superseded to 08737300)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 045116

Cap, Front PTO
(Superseded to 08963800)

$122.99

$

Usually ships in 4-12 days

0

7

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

9

Gravely 017917

Seal, Oil 2.250x3.005x.375
(Superseded to 05614000)

$21.99

$

In Stock, only 1 left!

0

10

Gravely 045121

Bearing, Roller
(Superseded to 05425900)

$

$

Not available

11

Gravely 042631

Hub, PTO Clutch
(Superseded to 08943600)

$

$

Not available

12

Gravely 042634

Disc, Clutch
(Superseded to 08943700)

$68.99

$

In Stock, only 2 left!

0

13

Gravely 045132

Seal, Oil 1.000x1.500x.250
(Superseded to 05617300)

$15.99

$

In Stock, only 2 left!

0

14

Gravely 011223

Race, Brg Thrust .752x1.240x.030
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

15

Gravely 017980

Ring, Retaining .08 Thick
(Superseded to 05707300)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 045120

Spring, Belleville
(Superseded to 20816400)

$5.99

$

In Stock, Qty 13

0

17

Gravely 042636

Plate, Clutch
(Superseded to 08943800)

$

$

Not available

18

Gravely 042637

Hub, Clutch Actuating
(Superseded to 08943900)

$312.99

$

Usually ships in 4-12 days

0

19

Gravely 035330

Bearing, Ball 1.574x3.149x.70
(Superseded to 05420900)

$193.99

$

In Stock, only 1 left!

0

20

Gravely 034734

Trunion, Fwd-Rev Clutch
(Superseded to 08911000)

$95.99

$

In Stock, only 4 left!

0

21

Gravely 121223

Pin, Cotter .06x.75
(Superseded to 06707500)

$0.99

$

In Stock, only 4 left!

0

22

Gravely 035681

Pin, Clutch Spring
(Superseded to 08654800)

$45.99

$

In Stock, only 3 left!

0
