49683 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 18hp Kohler (SN: 000101 & Above) NUMBER THIRTEEN - TRANSMISSION COVER ASSY Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 18hp Kohler

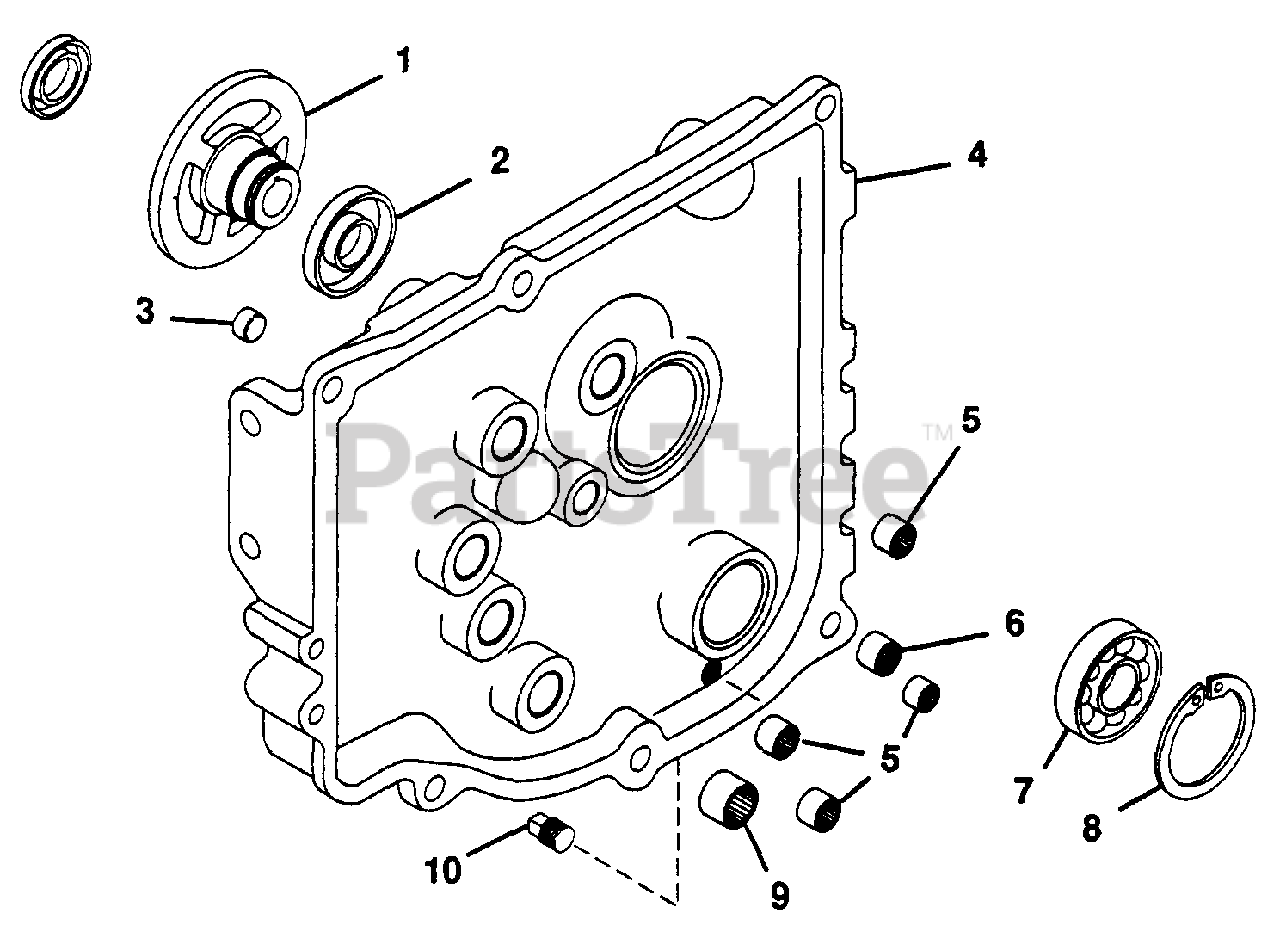

NUMBER THIRTEEN - TRANSMISSION COVER ASSY Parts Diagram

  • Title

1

Gravely 018024

Hub, Clutch
(Superseded to 08790700)

$469.99

$

Usually ships in 4-12 days

0

2

Gravely 046323

Seal, Oil
(Superseded to 05617600)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 421749

Plug, Cup 3/4
(Superseded to 07704200)

$

$

Not available

4

Gravely 046102

Assembly, Transmission Cover
(Superseded to 21278200)

$

$

Not available

5

Gravely 017913

Bearing, Needle .75x1x.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 017914

Bearing, Needle .625x.812x.75
(Superseded to 05420200)

$9.49

$

Usually ships in 4-12 days

0

7

Gravely 046321

Bearing, Ball
(Superseded to 05426300)

$53.99

$

Usually ships in 4-12 days

0

8

Gravely 046322

Ring, Retaining .109 Thick
(Superseded to 05715400)

$

$

Not available

9

Gravely 017912

Bearing, Needle 1.000x1.250x.75
(Superseded to 05420000)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 103879

Plug, Pipe 3/8
(Superseded to 07023800)

$

$

Not available
